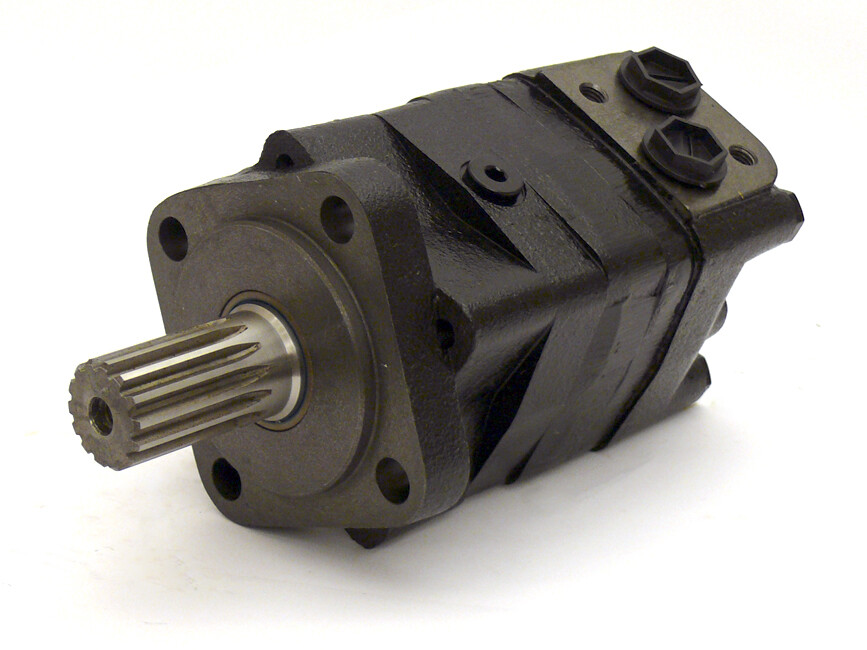

Motor*****M+S 315cc spl 31.75,
Motor*****M+S 315cc spl 31.75,
Varenummer:
MS315SHP
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
15 kW
Continuous rotation max.
240 rpm
Displacement
315 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Mounting flange
SAE-A4
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Pressure drop continuous max.
200 bar
Recess
82,5 mm
Shaft diameter
31,75 mm
Shaft spline
14T 12/24 SAE-C
Shaft type
Spline
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
825 Nm
Working ports
G 1/2 BSP
Package size
1 st
Barcode
207934
Gross weight
Kg
Net weight
Kg
Country of origin
bgr
Motor*****M+S 315cc spl 31.75,
