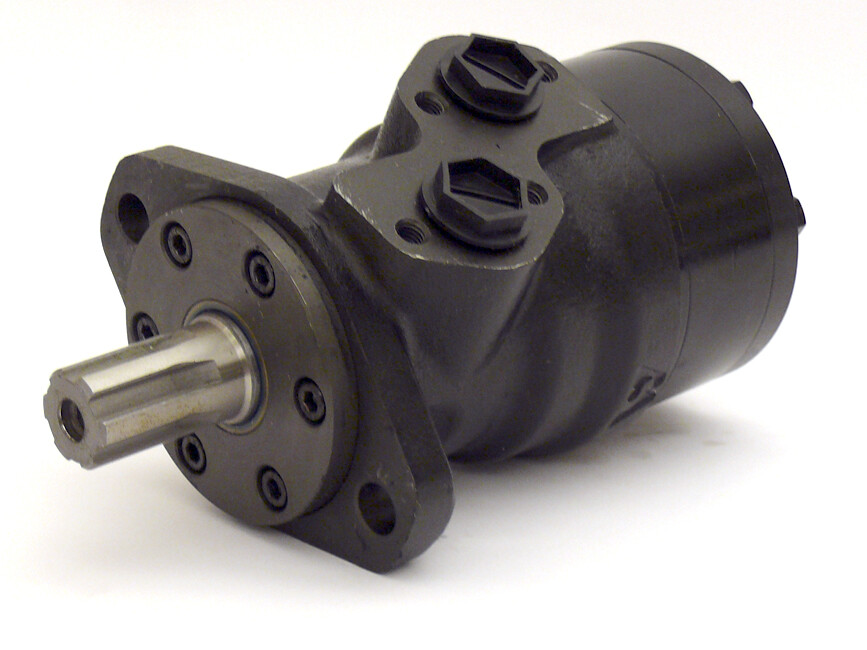

MOTOR*****M+S 200CC SPLINES
MOTOR*****M+S 200CC SPLINES
Partnumber:
MR200SHDP
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
9 kW
Continuous rotation max.
300 rpm
Displacement
200 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Mounting flange
SAE-A2
Number of mounting holes
2
Number of outer grooves
6
Oil viscocity recommended
20 - 75 cSt
Pressure drop continuous max.
140 bar
Recess
82,5 mm
Shaft diameter
25,4 mm
Shaft spline
SAE 6B 1"
Shaft type
Spline
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
385 Nm
Working ports
G 1/2 BSP
Package size
1 st
Barcode
207901
Gross weight
Kg
Net weight
Kg
Country of origin
bgr
MOTOR*****M+S 200CC SPLINES
