Adaptor male.1/4 female M16

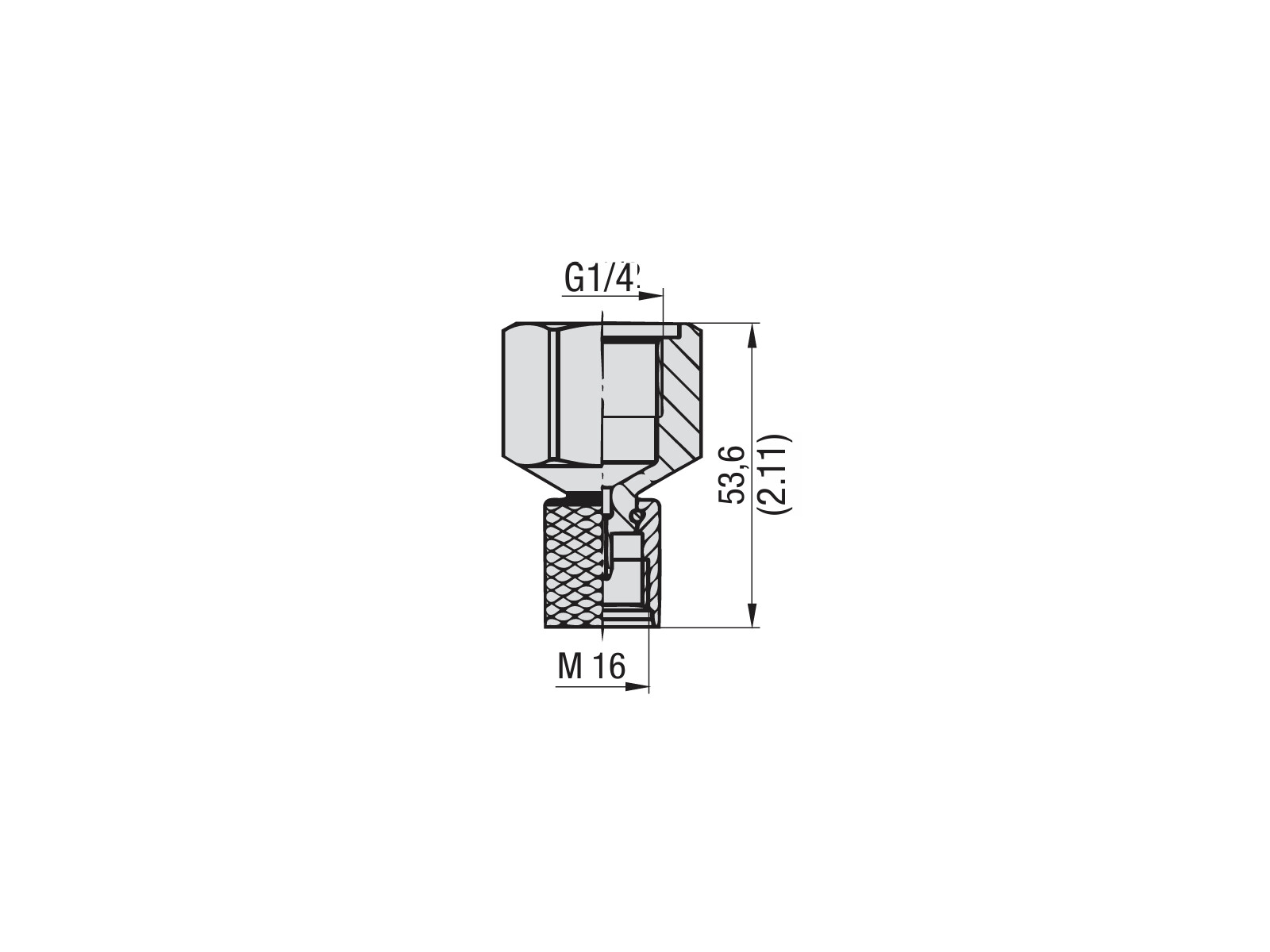

Adaptor for hydraulic test and measurement setups, used to connect components with different thread interfaces. The adaptor has a G 1/4 external thread on one side and an M16x2 internal thread on the other side.
With a maximum working pressure of 630 bar and an operating temperature range of -20 °C to +100 °C, it is intended for use in high-pressure hydraulic circuits where a compact thread conversion is needed for test points, hoses, or measurement equipment.
Typical Applications
- Hydraulic pressure testing and measurement connections
- Thread adaptation between test couplings, test hoses, and measuring instruments
Artikelnummer:
M04-M16X2-R1/4
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Stauff
Pressure max.
630 bar
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread inner metric
M16x2
Thread outer
G 1/4 BSP
Package size
1 pcs
Barcode
212461
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
DEU
Intrastat code
84812010
Adaptor for hydraulic test and measurement setups, used to connect components with different thread interfaces. The adaptor has a G 1/4 external thread on one side and an M16x2 internal thread on the other side.
With a maximum working pressure of 630 bar and an operating temperature range of -20 °C to +100 °C, it is intended for use in high-pressure hydraulic circuits where a compact thread conversion is needed for test points, hoses, or measurement equipment.
Typical Applications
- Hydraulic pressure testing and measurement connections
- Thread adaptation between test couplings, test hoses, and measuring instruments
