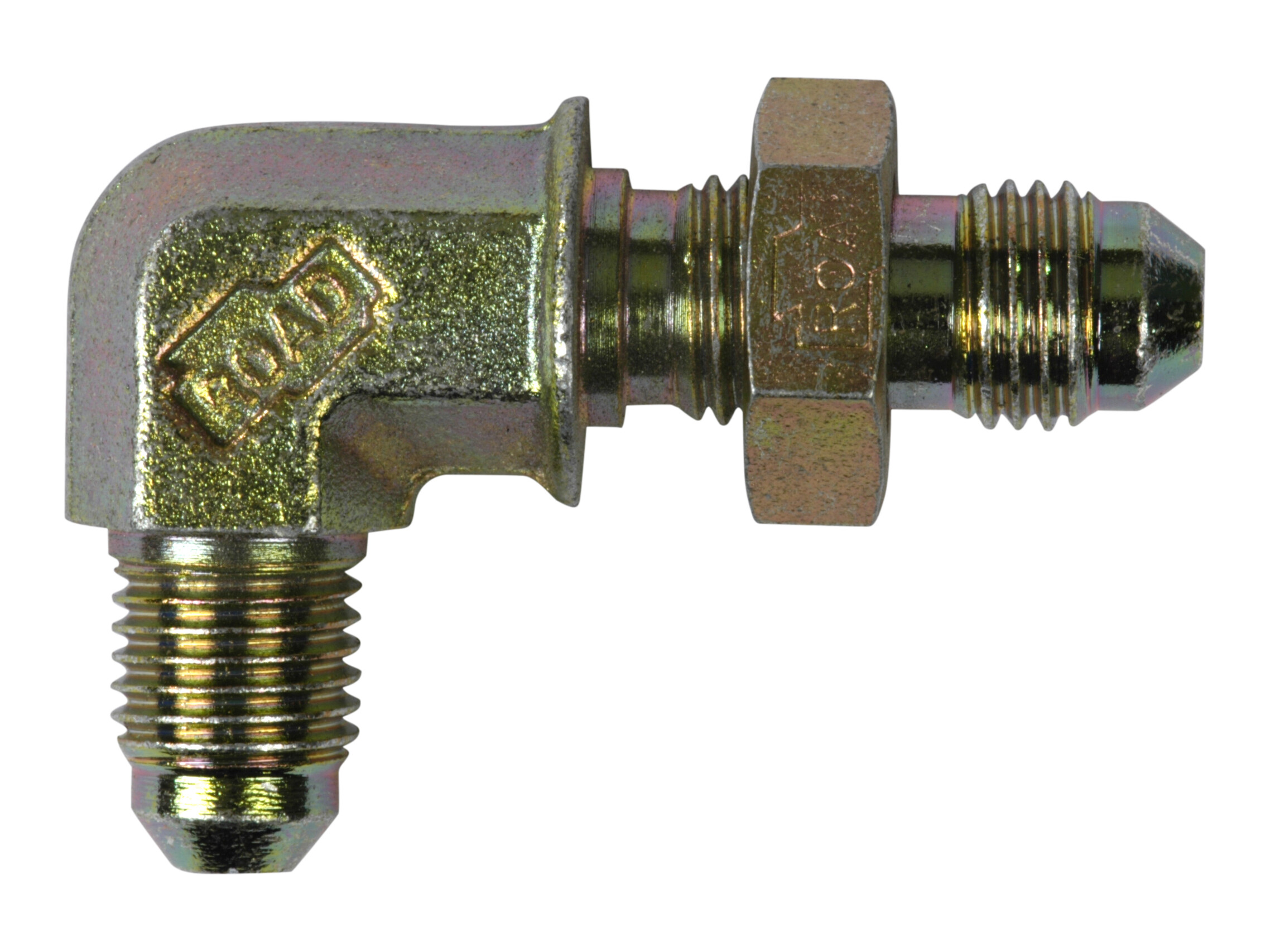

S650-06U bulkhead elbow
\ufeff
-
JIC 37° external thread 90° feed-through connector
- Connector includes locking nut
Partnumber:
JWSV-04
Package size:
10 st
Min. order quantity is:
1 st
Angle
90 °
B
24,5 mm
C
40,5 mm
CH
17 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
28,5 mm
Diameter pipe
6 mm
Dimension J1
7/16-20 JIC
J
7/16-20 JIC
Pressure max.
450 bar
Surface treatment
Electro-galvanized / White chromatized
T
6 mm
T1
6 mm
Thread outer
7/16-20 JIC
Package size
10 st
Barcode
144359
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° external thread 90° feed-through connector
- Connector includes locking nut
Note: Opening 3D files requires a program that supports the file format
