Skottadapter T, Utv-JIC
\ufeff
-
JIC 37° male T-groove connector
- Groove in the middle of the T-leg
- Includes lock nut
Partnumber:
JTSV-08-08
Package size:
5 st
Min. order quantity is:
5 st

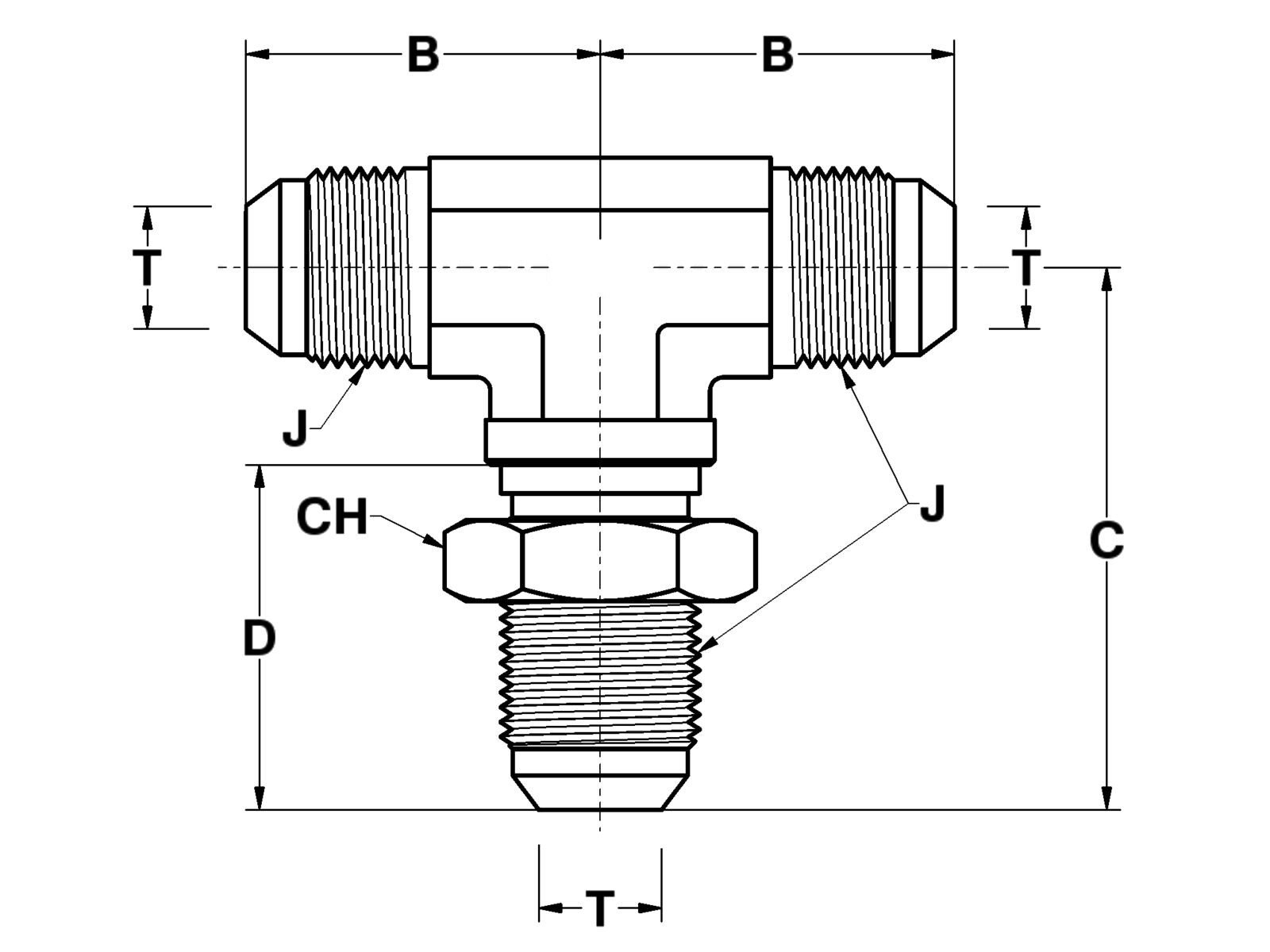

Angle
T-liitin °
B
345 mm
Brand Name
FOR
C
535 mm
CH
24 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
35 mm
J
3/4-16 JIC
Material
Steel
Model code
A112002/12
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
T
12 mm
Thread outer
3/4-16 JIC
Package size
5 st
Barcode
144187
Gross weight
0,174 Kg
Net weight
0,174 Kg
Country of origin
ita
\ufeff
-
JIC 37° male T-groove connector
- Groove in the middle of the T-leg
- Includes lock nut
Note: Opening 3D files requires a program that supports the file format
