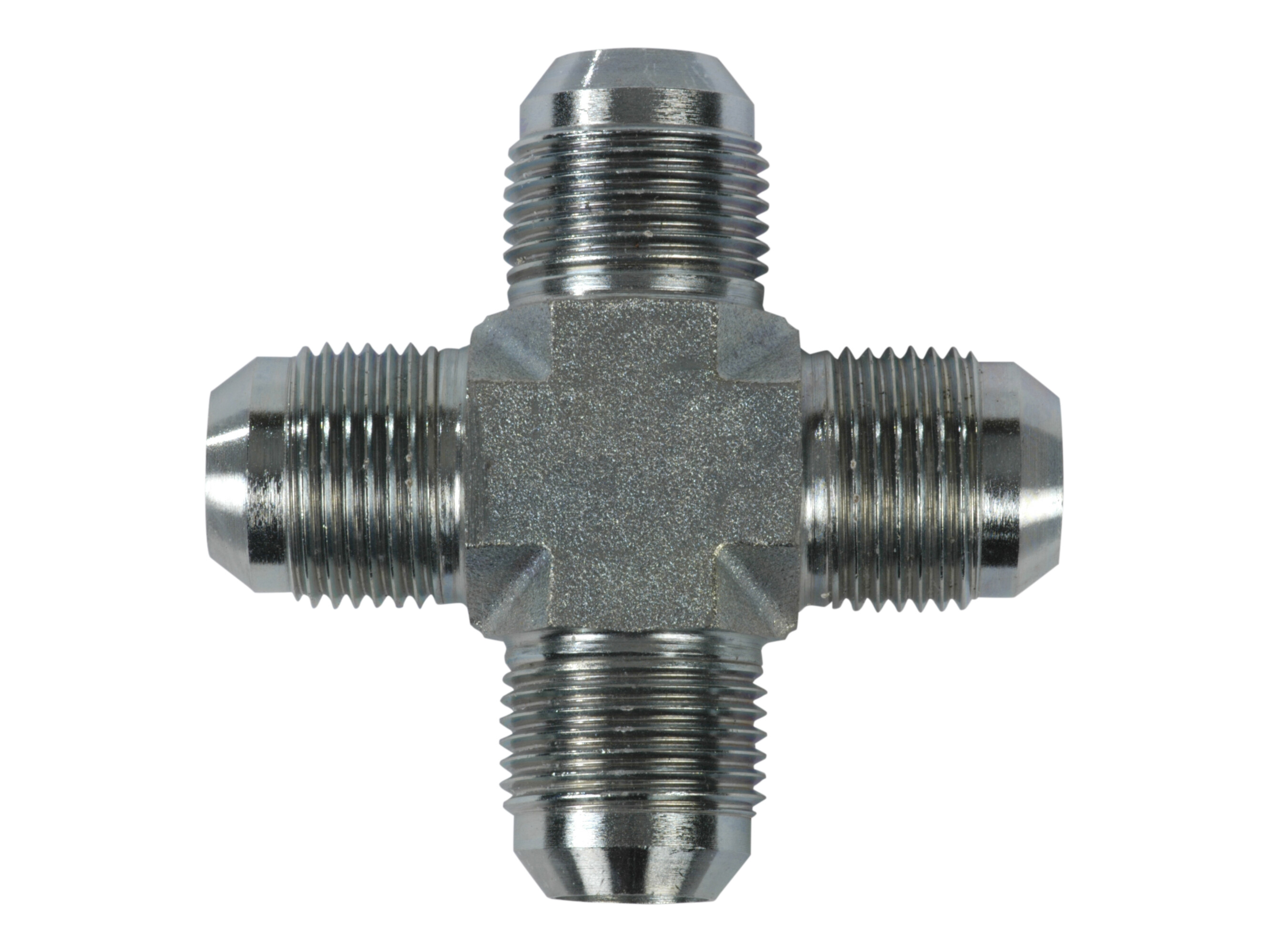

S510-20X cross

Partnumber:

JK-12

Package size:

1 st

Min. order quantity is:

1 st

Specifications
Dimensions and shipping

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

18 - 20 mm

Dimension A

84 mm

Dimension B

42 mm

Dimension J

1.1/16-12 JIC

Dimension T

18-20 mm

Material

Steel

Pressure max.

300 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

1.1/16-12 JIC

Package size

1 st

Barcode

144012

Gross weight

0,36 Kg

Net weight

0,36 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S510-20X cross

Note: Opening 3D files requires a program that supports the file format
