Adaptor with nut, BSP
\ufeff
-

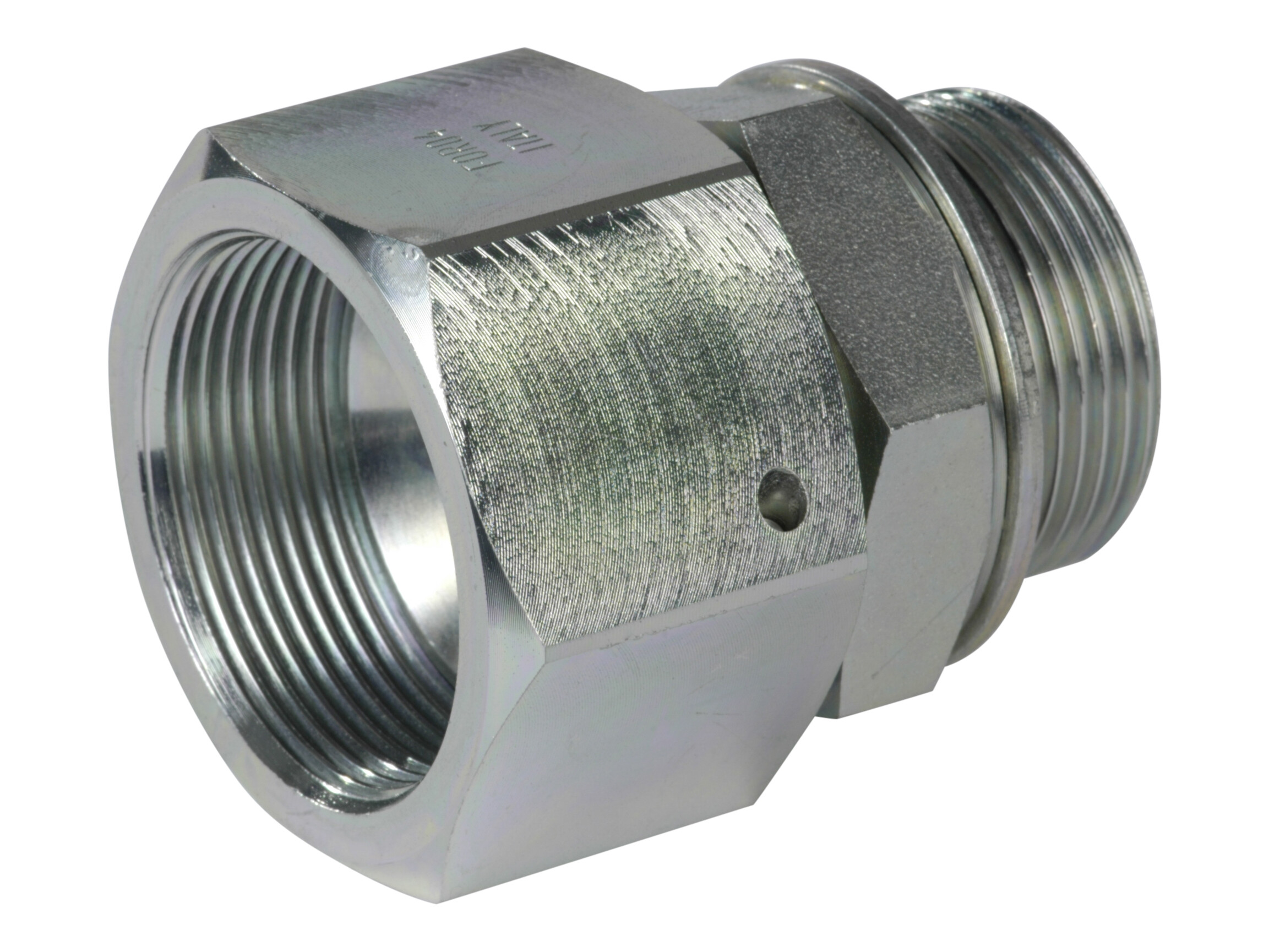

JIC female connector, straight, 37° taper
- External thread (BSPP)
- O-ring NBR, Shore-A 85 +5/-0 and support ring
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
Partnumber:
JEVGE-24-20
Package size:
3 st
Min. order quantity is:
1 st
A
73 mm
B
38 mm
CH
50 mm
CH1
57 mm
D
17,5 mm
Diameter rør
38 mm
F
G 1.1/4 BSP
Gevind indvendig
1.7/8-12 JIC
Gevind udvendig
G 1.1/4 BSP
J
1.7/8-12 JIC
Korrosions resistens
1400 hours salt spray DIN EN ISO 9227
Materiale
Steel
Model kode
A102177/3842
Mærke navn
FOR
Overfladebehandling
Electro-galvanized / White chromatized
T
38 mm
Temperatur maks.
+120 °C
Temperatur min.
-20 °C
Tryk maks.
250 bar
Vinkel
0 °
Package size
3 st
Barcode
129792
Gross weight
0,60 Kg
Net weight
0,60 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- O-ring NBR, Shore-A 85 +5/-0 and support ring
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
