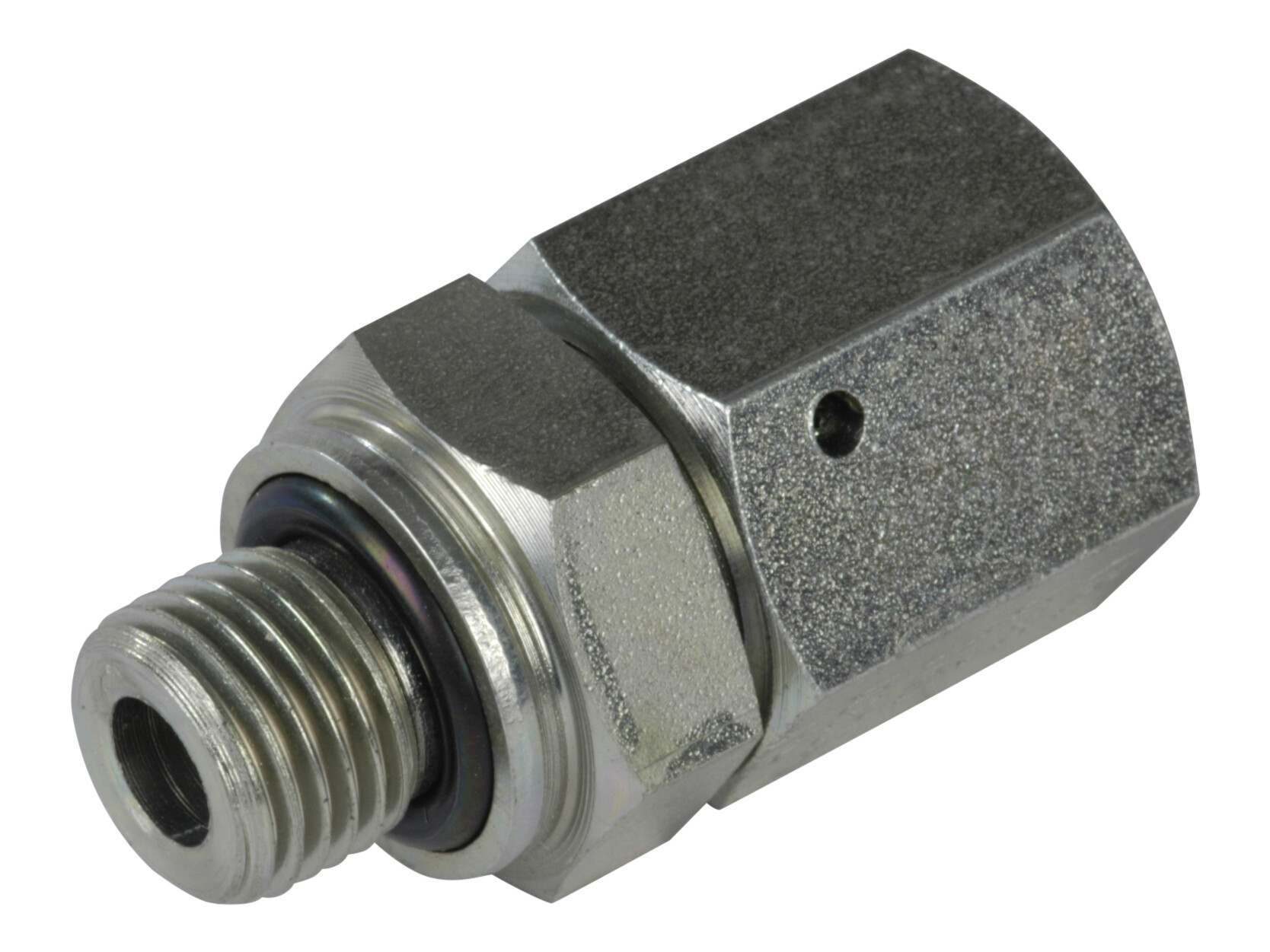

S180-12-13G adaptor with nut

Partnumber:

JEVGE-08-04

Package size:

10 st

Min. order quantity is:

1 st

Accessories (2)

Bushing Ø12

Partnumber: JD-12

Mutter, UNF-3/4''-16

Partnumber: JM-08-12

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

12 mm

Dimension A

44 mm

Dimension B

23 mm

Dimension CH

22 mm

Dimension CH1

22 mm

Dimension D

10 mm

Dimension F

G 1/4 BSP

Dimension J

3/4-16 JIC

Dimension T

12 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread inner

3/4-16 JIC

Thread outer

G 1/4 BSP

Package size

10 st

Barcode

143782

Gross weight

0,06 Kg

Net weight

0,06 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S180-12-13G adaptor with nut

Note: Opening 3D files requires a program that supports the file format
