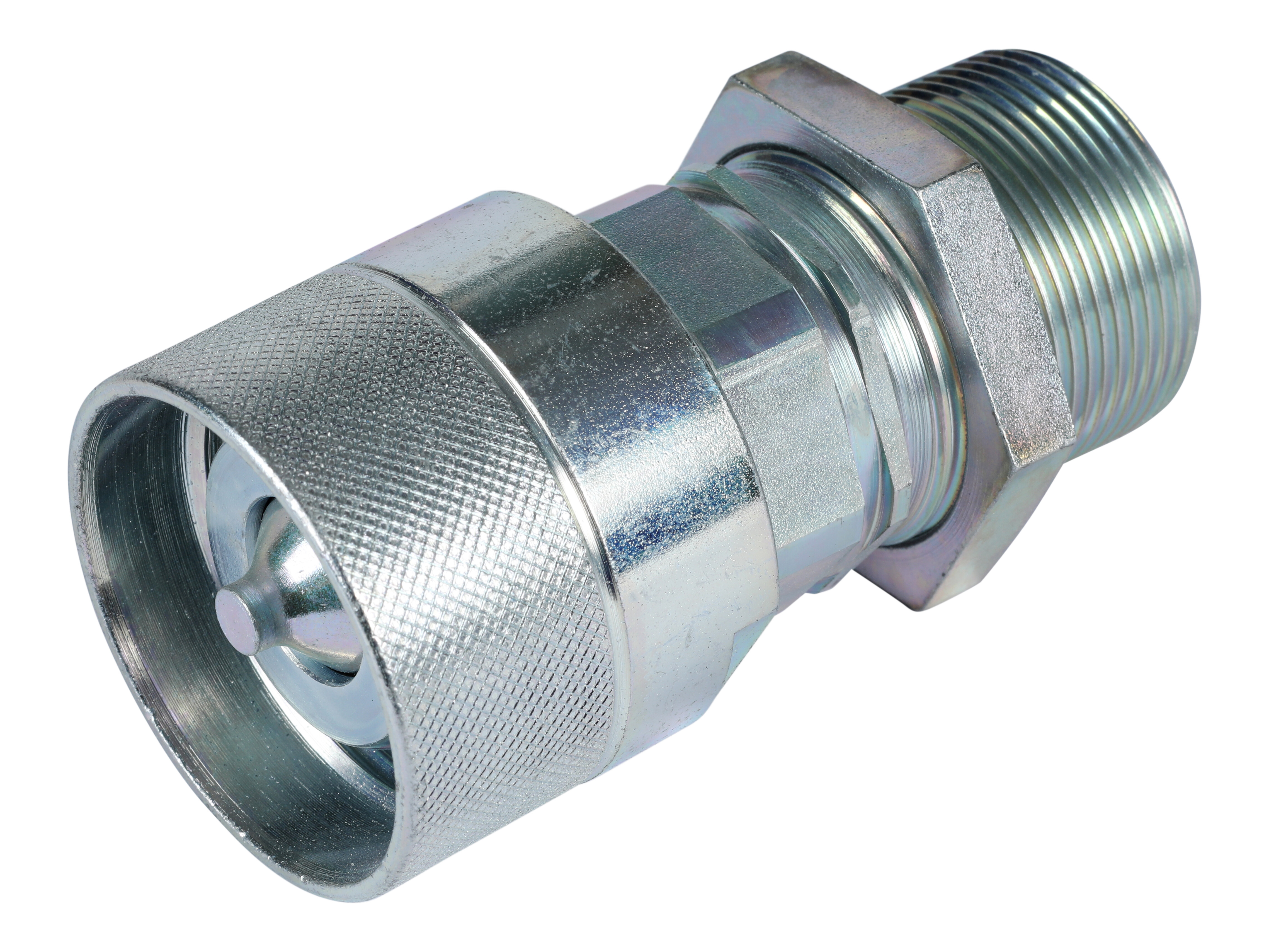

Screw coupling male HS - DN25 - M42x2 (38S) bulkhead
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
Artikelnummer:
HS20-2-T3042
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Diameter rör
30 mm
Dimension C
97 mm
Dimension E metrisk
M42x2
Dimension H
55 mm
Dimension L2
106 mm
Dimension SW
17, 46 mm
Flödeshastighet nominell LMin
160 lpm
Gänga utv. metrisk
M42x2
ISO storlek
25
Modell kod
QRC-HS-25-M-30SB-B-W66
Märke namn
Stauff
Packningsmaterial
NBR
Serie
S
Standard ISO
ISO 14541
Storlek
1 "
Temperatur max.
+100 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Steel
Tryck max.
300 bar
Ytskiktbehandling
Zinc coating (CR III)
Förpackningsstorlek
1 st
Streckkod
356880
Bruttovikt
0,82 Kg
Nettovikt
0,82 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
