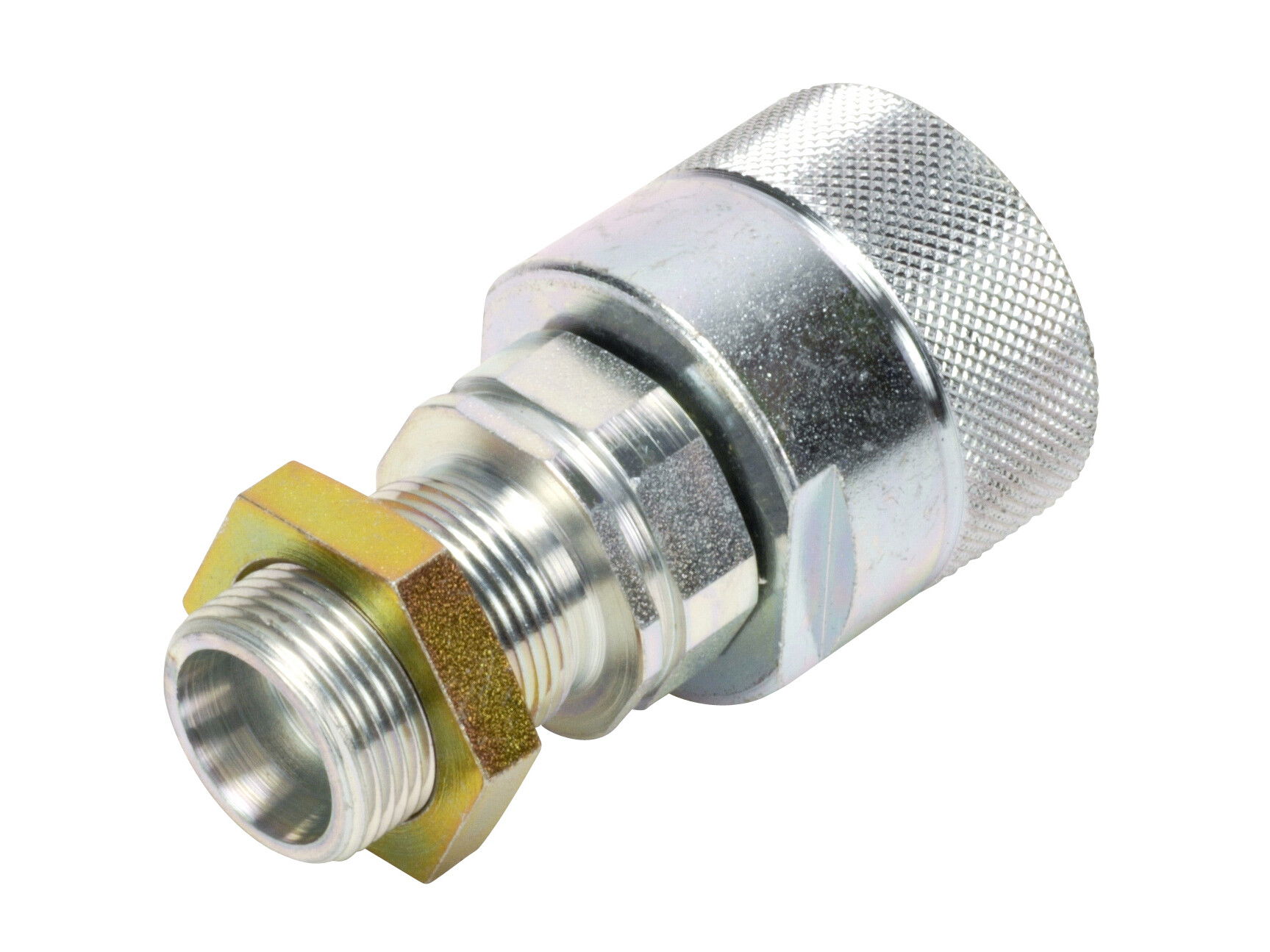

Screw coupling male HS - DN12,5 - M24x1.5 (16S) bulkhead

Standard DIN-coupling often used on mobile-cranes and within industry.

BSP female thread.

Can be connected by hand up till an approx. pressure of 50 bar.

Varenummer:
HS10-2-T1624

Pakke str.:
1 st

Min. bestillingsenhed er:
1 st
Screw coupling female HS - DN12,5 - M24x1.5 (16S) bulkhead
Partnumber: HS10-1-T1624
Dammskydd plugg för hane Röd
Partnumber: HS10-9-RT
Alu plug M36x2 (female) HS10-9-SI001
Partnumber: HS10-9-SI
Brand Name
Stauff

Diameter pipe
16 mm

Dimension C
69 mm

Dimension H
42 mm

Dimension L2
80 mm

Dimension SW
30, 36 mm

Flow rate nominal LMin
80 lpm

ISO size
12.5

Material
Steel

Model code
QRC-HS-12-M-16SB-B-W66

Pressure max.
400 bar

Sealing material
NBR

Series
S

Size
1/2 "

Standard ISO
ISO 14541

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread outer metric
M24x1,5
Package size
1 st

Barcode
356843

Gross weight
0,32 Kg

Net weight
0,32 Kg

Country of origin
DEU

Intrastat code
84812010

Standard DIN-coupling often used on mobile-cranes and within industry.

BSP female thread.

Can be connected by hand up till an approx. pressure of 50 bar.
