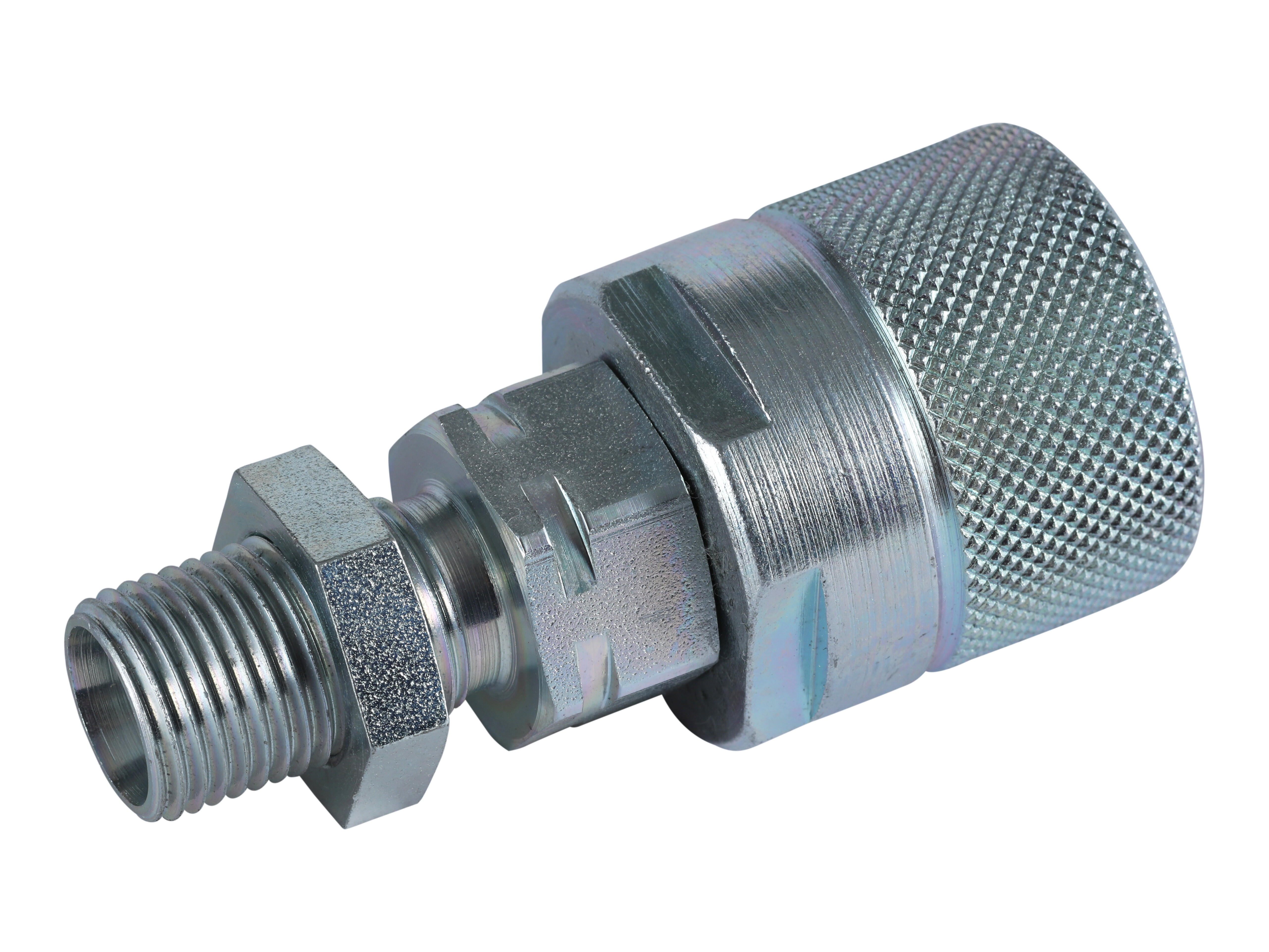

Screw coupling male HS - DN10 - M16x1.5 (10L) bulkhead
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
Partnumber:
HS08-2-N1016
Package size:
1 pcs
Min. order quantity is:
1 pcs
A
M16x1,5
Anvendelsesområde
Construction Machinery
D2
10 mm
Diameter rør
10 mm
Flow Nominel
40 lpm
Frakobling
Screw
Gevind DIN standard
DIN 3861
Gevind udvendig metrisk
M16x1,5
ISO størrelse
10
L2
74 mm
L3
26 mm
Materiale
Steel
Model kode
QRC-HS-10-M-10LB-B-W66
Mærke navn
Stauff
Overfladebehandling
Zinc coating (CR III)
Pakningsmateriale
NBR
SW
22, 30 mm
Samling under tryk
Male Tip/Female Body up to 33% of the Working Pressure with Tools
Serie
L
Spild
1,3 ml
Standard ISO
ISO 14541
Størrelse
3/8 "
Temperatur maks.
+100 °C
Temperatur min.
-25 °C
Tilkobling
Screw
Tryk maks.
450 bar
Tryk sprængning min.
1550 bar
Package size
1 pcs
Barcode
356816
Gross weight
0,18 Kg
Net weight
0,18 Kg
Country of origin
DEU
Intrastat code
84812010
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
