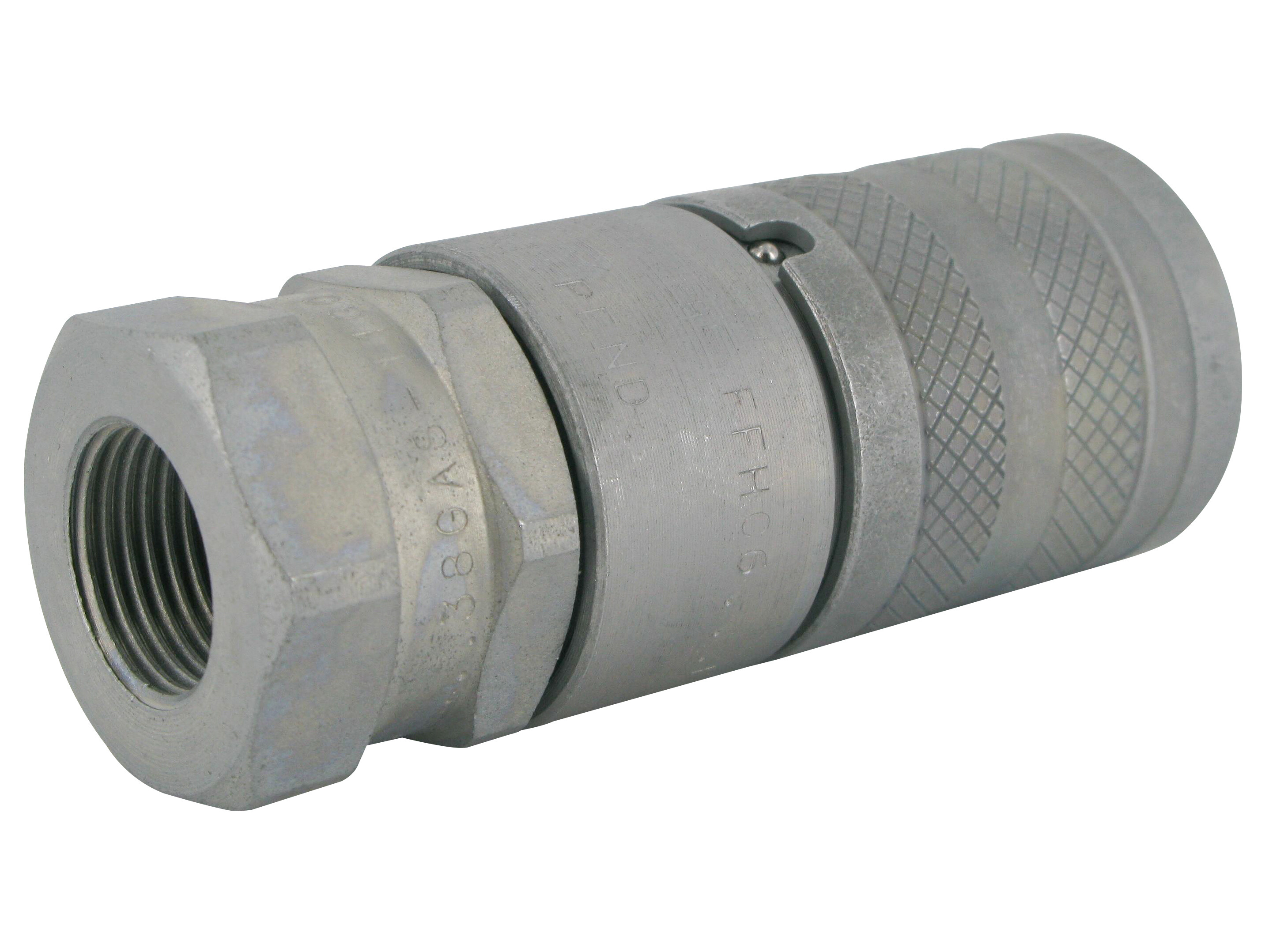

Snabbkoppling Hona ISO 10 Inv-G3/8'' Viton

Faster Flat-face quick coupler.

No spillage during connection and disconnection.

Seals replacement very easy.

Connection system: Pushing the male coupling.

Disconnection system: Pulling back the sleeve

Shut-off system: Flat valve (male coupling with double valve).

Connectability: Without pressure.

Disconnection under pressure: Not allowed.

Partnumber:
FFH0638GASFV

Package size:
1 st

Min. order quantity is:
1 st
Nylon cap blue for FFH06 female
Varenummer: TAF38B
Nylon cap yellow for FFH06 female
Varenummer: TAF38G
Nylon cap black for FFH06 female
Varenummer: TAF38N
Nylon cap red for FFH06 female
Varenummer: TAF38R
Nylon cap green for FFH06 female
Varenummer: TAF38V
Dustcap orange f/FFH06 female ISO 16028 FASTER
Varenummer: TMF06
Dustcap blue f/FFH06 female ISO 16028 FASTER
Varenummer: TMF06B
Dustcap yellow f/FFH06 female ISO 16028 FASTER
Varenummer: TMF06G
Dustcap red f/FFH06 female ISO 16028 FASTER
Varenummer: TMF06R
Area of use
Biodiesel, Diesel, Hydraulic oil, Liquids compatible with constituent materials

Brand Name
Faster

Corrosion resistance
1000 hours salt spray UNI ISO 9227

DN
10 mm

Dimension A
G 3/8 BSP

Dimension B
75 mm

Dimension D
30 mm

Dimension X
27 mm

Flow rate nominal LMin
50 lpm

ISO size
10

Material
Steel

Model code
FFH06 38GAS FV

Pressure eliminator
No

Pressure max.
350 bar

Sealing material
FKM/FPM (Viton®)

Size
3/8 "

Standard ISO
ISO 16028

Surface treatment
Zinc-Nickel plated

Temperature max.
+200 °C

Temperature min.
-20 °C

Thread inner
G 3/8 BSP
Package size
1 st

Barcode
430988

Gross weight
0,268 Kg

Net weight
0,268 Kg

Country of origin
ita

Faster Flat-face quick coupler.

No spillage during connection and disconnection.

Seals replacement very easy.

Connection system: Pushing the male coupling.

Disconnection system: Pulling back the sleeve

Shut-off system: Flat valve (male coupling with double valve).

Connectability: Without pressure.

Disconnection under pressure: Not allowed.
