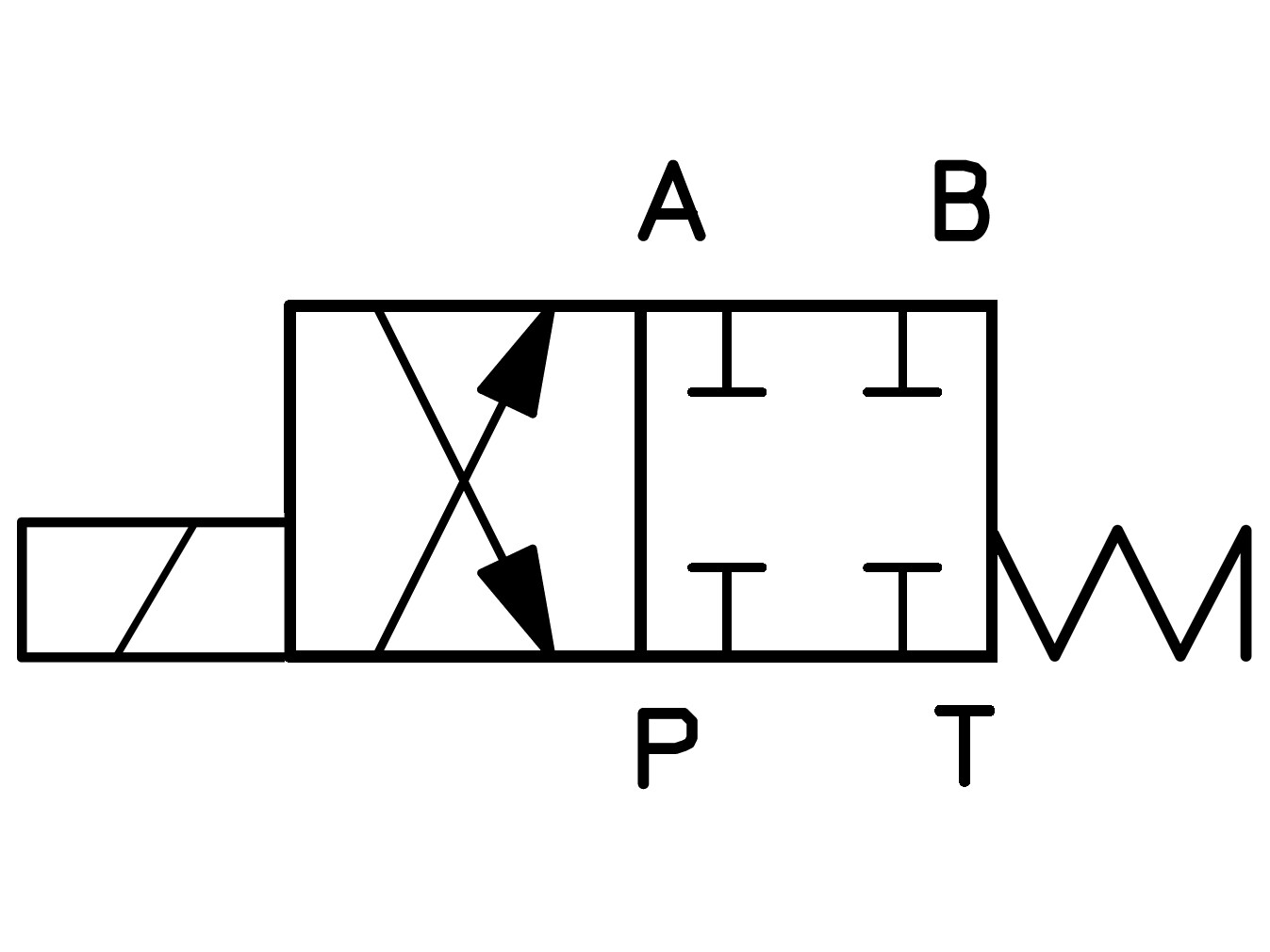

Riktningsv. Duplomatic NG6 4/2 PcAcBcTc

Sold without coils. Select the correct coil(s) in the accessories list.

Partnumber:
DS3-SA1/11N-D00

Package size:
1 st

Min. order quantity is:
1 st
Spole Duplomatic S3 12VDC Din kontakt
Partnumber: C22S3-D12K1/11
Spole Duplomatic DS3 12VDC AMP junior
Partnumber: C22S3-D12K2/11
Spole Duplomatic DS3 12VDC Deutsch kontakt
Partnumber: C22S3-D12K7/10
Spole Duplomatic DS3 220DC DIN kontakt
Partnumber: C22S3-D220K1/12
Spole Duplomatic DS3 24VDC DIN kontakt
Partnumber: C22S3-D24K1/11
Spole Duplomatic DS3 24VDC AMP junior
Partnumber: C22S3-D24K2/11
Spole Duplomatic DS3 24VDC Deutsch kontakt
Partnumber: C22S3-D24K7/10
Activation
Solenoid

Brand Name
Duplomatic

Contamination level max.
20/18/15 - ISO 4406

Flow rate nominal LMin
40 lpm

NG ISO-size
NG06

Number of ways/positions
4/2

Oil viscocity recommended
25 cSt

Pressure T max.
160 bar

Pressure max.
350 bar

Sealing material
NBR

Surface treatment
Phosphated (black)

Temperature max.
+80 °C

Temperature min.
-20 °C

Torque tightening
4,5 - 5,5 Nm
Package size
1 st

Barcode
415616

Gross weight
Kg

Net weight
Kg

Country of origin
ita

Sold without coils. Select the correct coil(s) in the accessories list.
