Cover plate - DIN 1 - ZiNi

Cover plate, to be installed on top of the pipe clamp.

Partnumber:
DP1A

Package size:
0 pcs

Min. order quantity is:
1 pcs
Brand Name
Stauff

DIN size
1

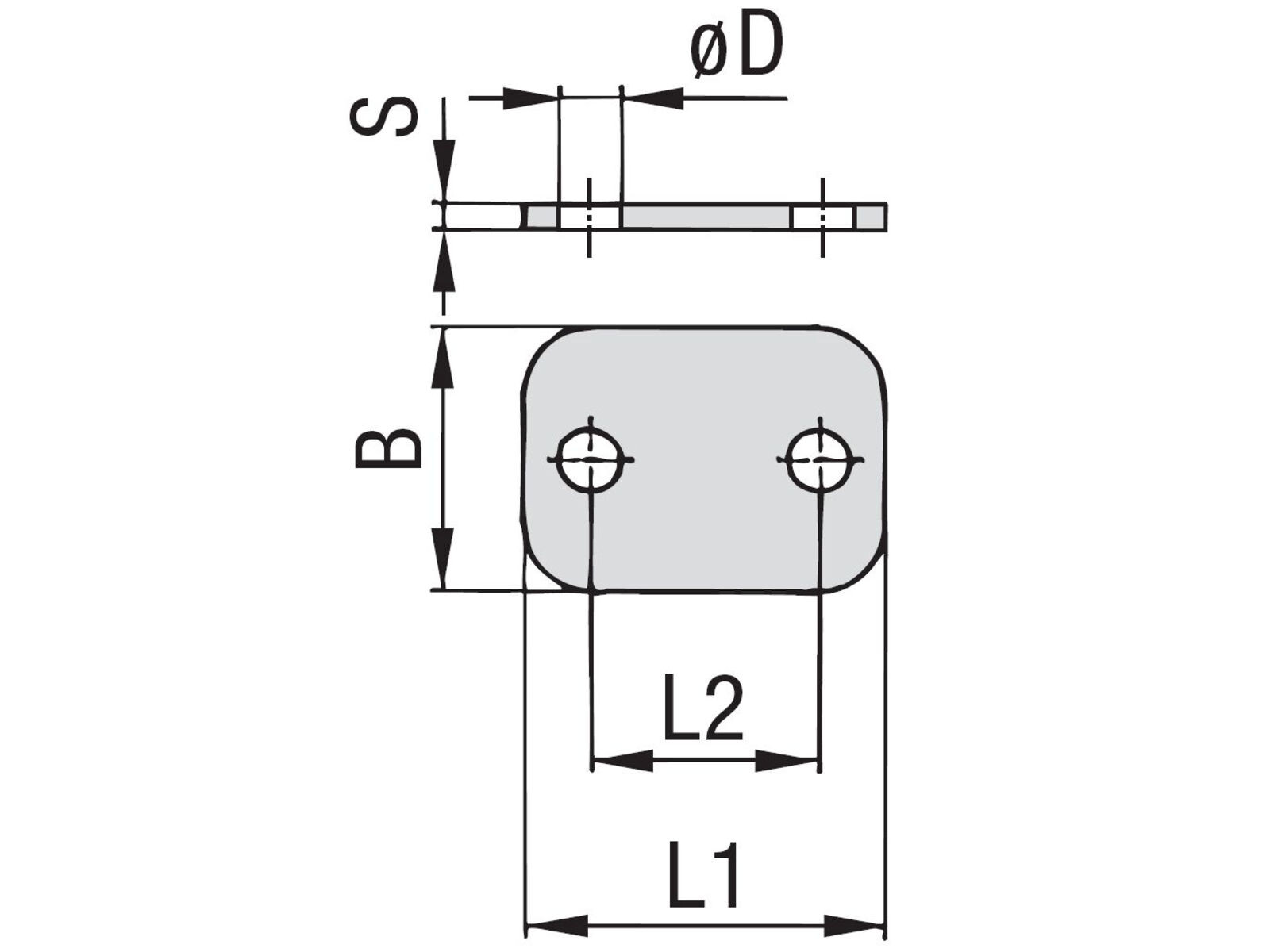

Dimension B
30 mm

Dimension D
7 mm

Dimension L1
34 mm

Dimension L2
20 mm

Dimension S
3 mm

Group Stauff
1A

Length
34 mm

Material
Steel

Material quality
St. 8.8

Model code
DP-1A-W3

Standard DIN
DIN 3015 part 1

Surface treatment
Zinc-Nickel plated

Width
30 mm
Package size
0 pcs

Barcode
5704295304762

Gross weight
0,02 Kg

Net weight
0,02 Kg

Country of origin
DEU

Intrastat code
39259010

Cover plate, to be installed on top of the pipe clamp.

Note: Opening 3D files requires a program that supports the file format
