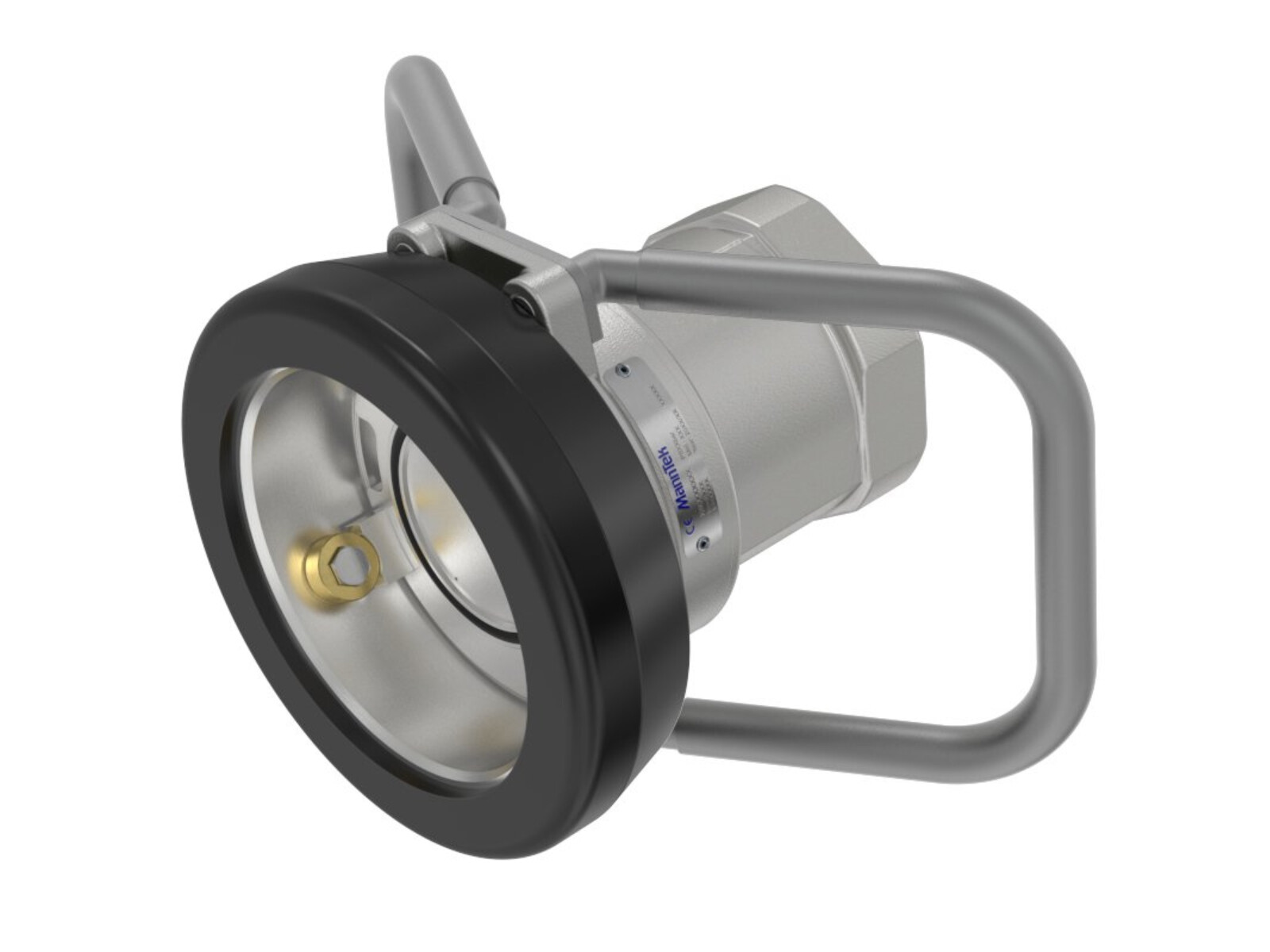

Snabbkoppling Hona 100 Inv-G4'' Aluminium/Viton
Dripless Connections
_x000D_Technical data
Design: Tank coupling (male)
Hose coupling (female)
Material: Aluminum (AL)
Brass (MS)
Stainless steel (SS)
Connection: BSP internal (standard)
O-ring material: Viton® (FPM/FKM)
Gasket material: PUR (MS/AL), PTFE (SS)
Material dust cover in PE
_x000D_The couplings are the same as Todo and manufactured according to NATO STANG 3756
Osanumero:
DDC-M-100-4-AL
Pakkauskoko:
1 st
Pienin tilausmäärä on:
1 st
Kierre sisä
G 4 BSP
Lämpötila max.
+80 °C
Lämpötila min.
-20 °C
Materiaali
Aluminium
Paine max.
10 bar
Standardi
NATO STANAG 3756
Tiivistysmateriaali
FKM/FPM (Viton®)
Tilavuusvirta nimellinen l/min
2900 lpm
Tuotemerkit
Elaflex
Package size
1 st
Barcode
358190
Gross weight
Kg
Net weight
Kg
Country of origin
swe
Dripless Connections
_x000D_Technical data
Design: Tank coupling (male)
Hose coupling (female)
Material: Aluminum (AL)
Brass (MS)
Stainless steel (SS)
Connection: BSP internal (standard)
O-ring material: Viton® (FPM/FKM)
Gasket material: PUR (MS/AL), PTFE (SS)
Material dust cover in PE
_x000D_The couplings are the same as Todo and manufactured according to NATO STANG 3756
