Banjo Stryp/backventil (ut) Ø4 mm 1/8
Banjo Stryp/backventil (ut) Ø4 mm 1/8
Partnumber:
C0TA00418
Package size:
10 st
Min. order quantity is:
1 st
Area of use
Compressed air, Vacuum
Brand Name
Tierre
Diameter pipe
4 mm

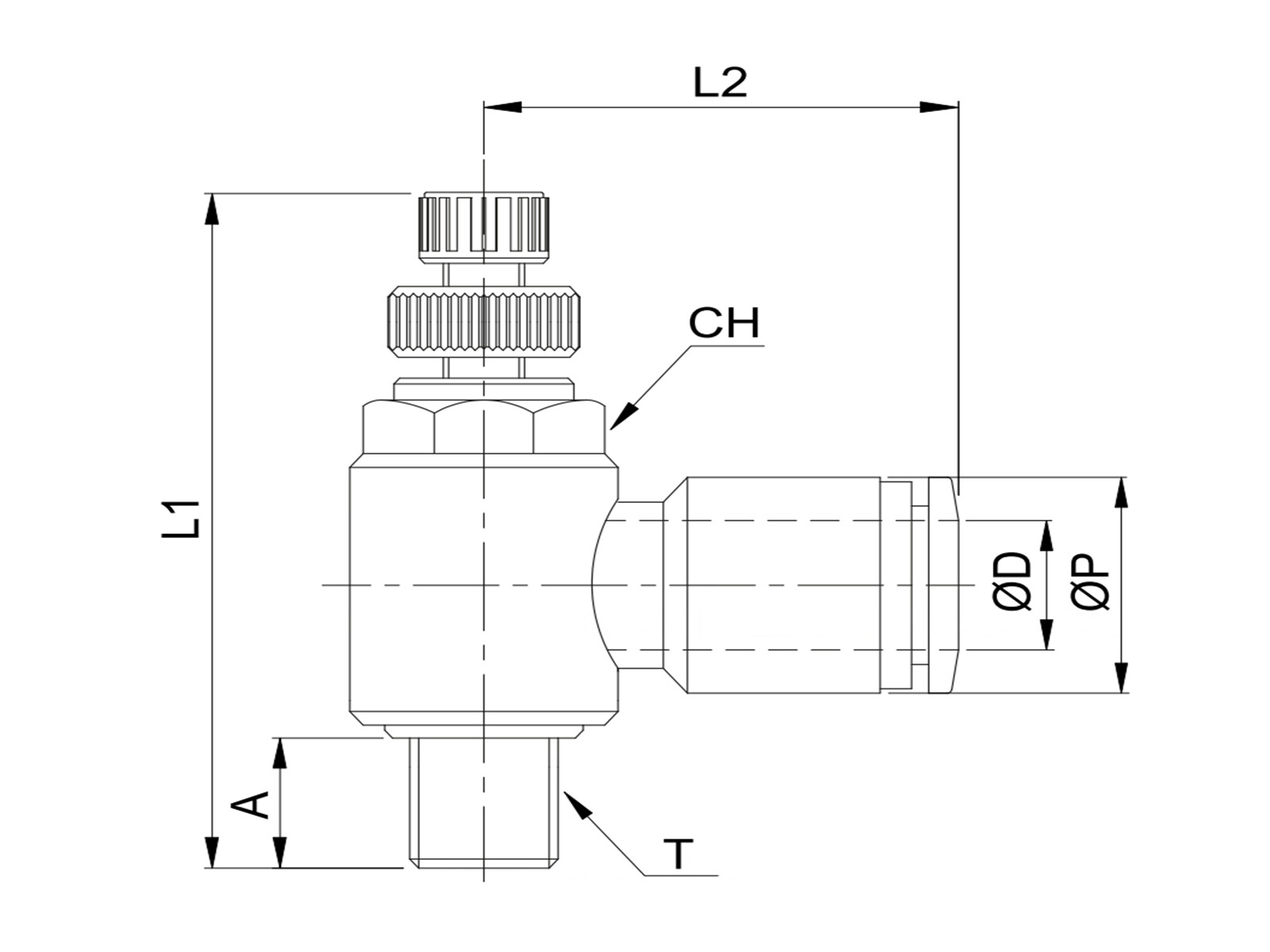

Dimension A
7 mm
Dimension CH
10 mm
Dimension L1
39.7 mm
Dimension L2
22.3 mm
Dimension T
R 1/8 BSPT
Dimension ØD
4 mm
Dimension ØP
11.1 mm
Material
Brass, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTRFR04R01
Pressure max.
10 bar
Sealing material
NBR
Temperature max.
+60 °C
Temperature min.
0 °C
Thread
R 1/8 BSPT
Torque tightening
7 Nm
Vacuum max.
10 bar
Package size
10 st
Barcode
170694
Gross weight
Kg
Net weight
Kg
Country of origin
swe
Banjo Stryp/backventil (ut) Ø4 mm 1/8
