T-koppling vridbar Ø4mm 1/4''
T-koppling vridbar Ø4mm 1/4''
Artikelnummer:
C02680428
Förpackningsstorlek:
10 st
Minsta beställningskvantitet:
1 st
Area of use
Compressed air, Vacuum
Brand Name
Tierre

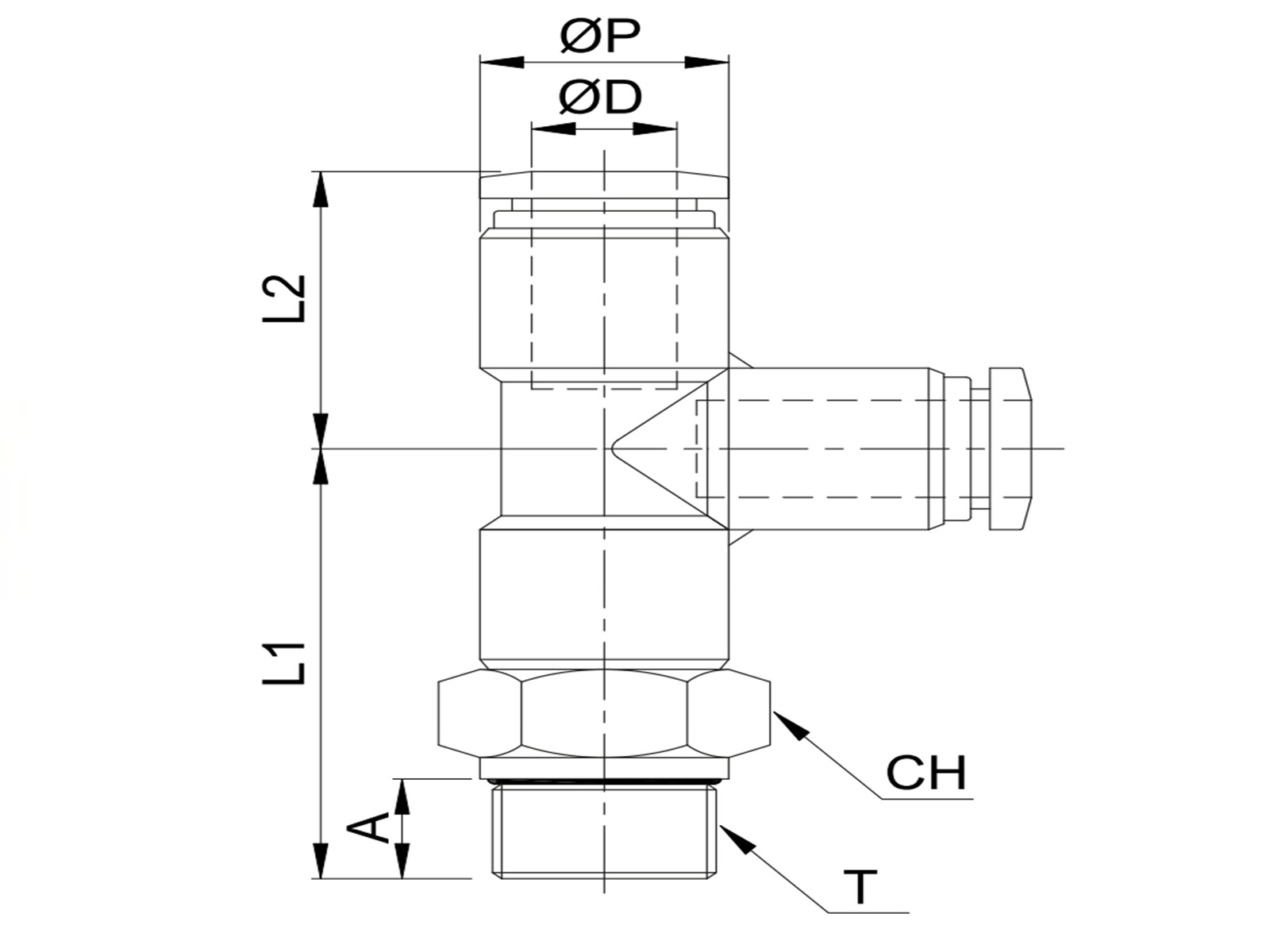

Dimension A
5.8 mm
Dimension CH
17 mm
Dimension L1
26.3 mm
Dimension L2
18.5 mm
Dimension T
G 1/4 BSP
Dimension ØD
4 mm
Dimension ØP
11.1 mm
Material
Brass, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTRST04G02
Pressure max.
16 bar
Sealing material
NBR
Series
WTR
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread
G 1/4 BSP
Torque tightening
15 Nm
Tube Insertion Depth
15 mm
Tube Tollerance
± 0,1 mm
Vacuum max.
-0.9 bar
Package size
10 st
Barcode
255908
Gross weight
Kg
Net weight
Kg
Country of origin
swe
