Skottgenomgång INV-G1/8 -8mm
Skottgenomgång INV-G1/8 -8mm
Varenummer:
C02320818
Pakke str.:
5 st
Min. bestillingsenhed er:
5 st
Angle
0 °
Area of use
Compressed air, Vacuum
Brand Name
Tierre

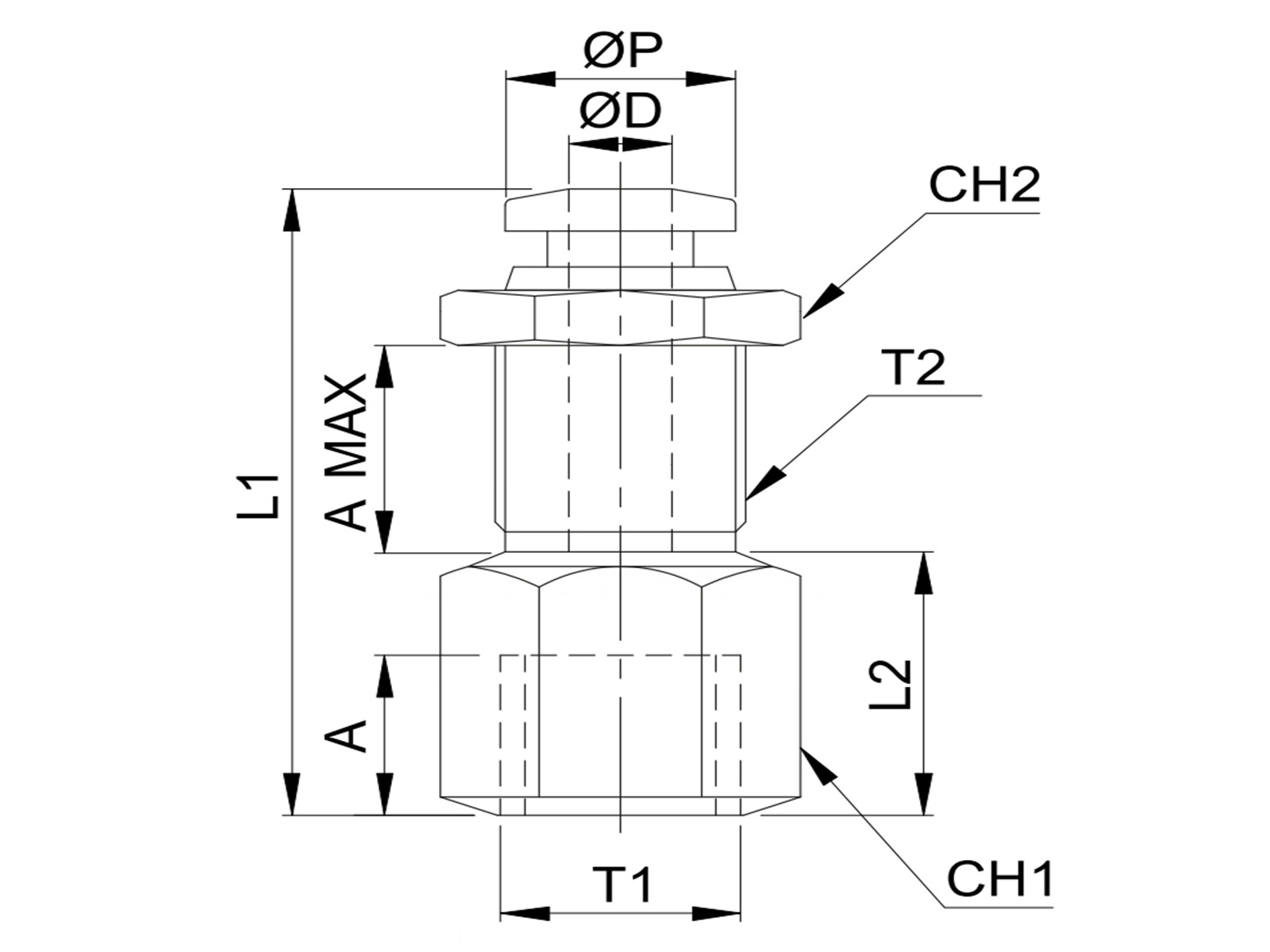

Dimension A
7 mm
Dimension A max
9.4 mmm
Dimension CH1
19 mm
Dimension CH2
19 mm
Dimension L1
26.4 mm
Dimension L2
5 mm
Dimension ØD
8 mm
Dimension ØP
13.8 mm
Material
Brass, POM(Acetal), Stainless steel
Model code
WTRMF 08G01
Pressure max.
16 bar
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Series
WTR
Standard
Silicone Free
Standard ISO
ISO 14743
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread T1
G 1/8 BSP
Thread T2
M16x1 mm
Torque tightening
T1 (BSP) = 10 Nm
Tube Insertion Depth
18.8 mm
Tube Tollerance
± 0,1 mm
Vacuum max.
-0.95 bar
Förpackningsstorlek
5 st
Streckkod
330601
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
ita
Skottgenomgång INV-G1/8 -8mm
