Adapter rak kompakt Ø6 mm Utv-M5
Adapter rak kompakt Ø6 mm Utv-M5
Partnumber:
C022A0605
Package size:
10 st
Min. order quantity is:
1 st
Angle
0 °
Area of use
Compressed air, Vacuum
Brand Name
Tierre

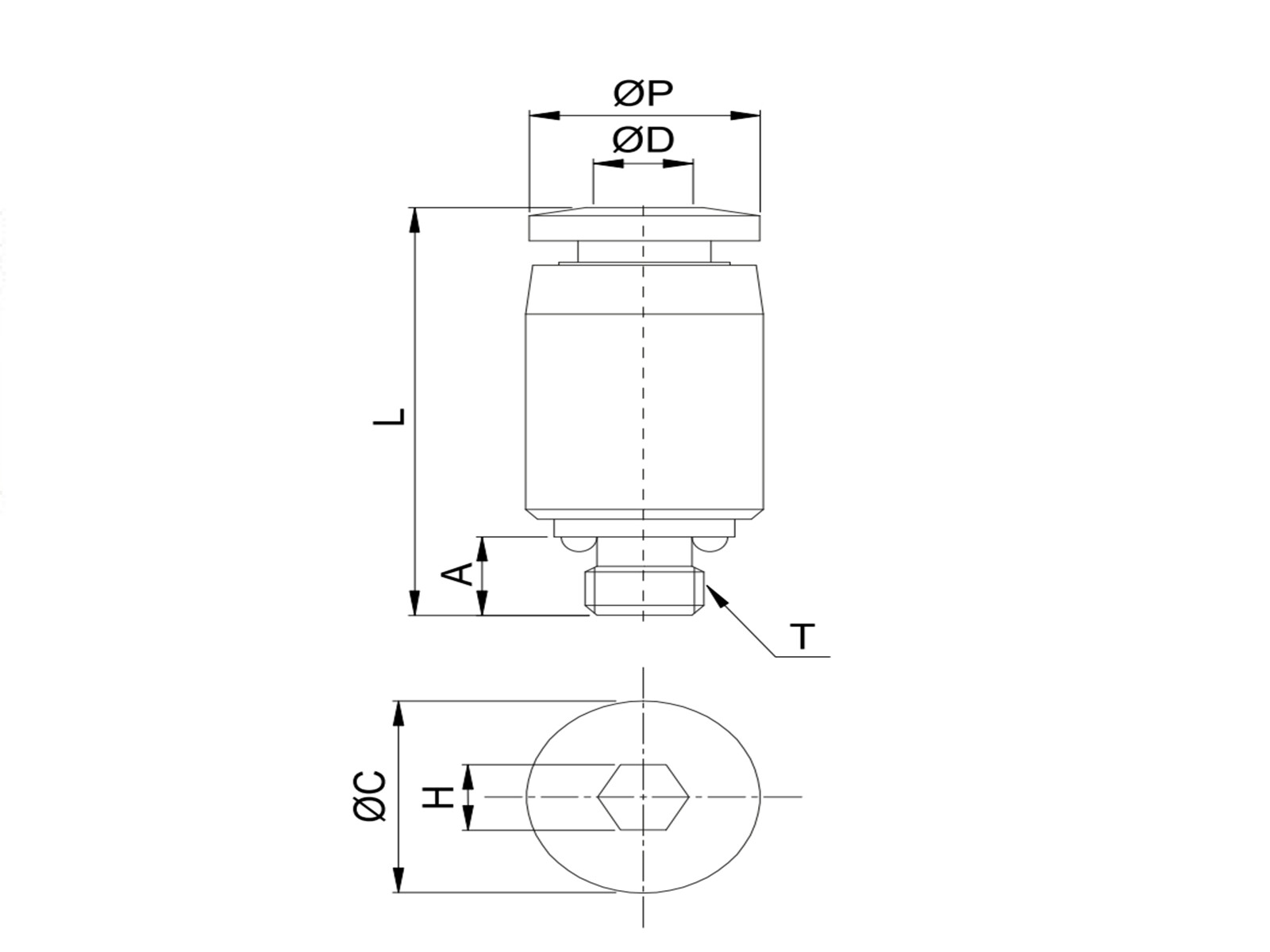

Dimension A
3.8 mm
Dimension H
2 mm
Dimension L
21 mm
Dimension T metric
M5x0,8
Dimension ØC
12 mm
Dimension ØD
6 mm
Dimension ØP
11.9 mm
Material
Brass, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTROC06M5
Pressure max.
16 bar
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Standard
Silicone Free
Standard ISO
ISO 14743
Temperature max.
+80 °C
Temperature min.
-20 °C
Torque tightening
1,5 Nm
Tube Insertion Depth
16.5 mm
Tube Tollerance
± 0,1 mm
Package size
10 st
Barcode
464098
Gross weight
Kg
Net weight
Kg
Country of origin
ita
Intrastat code
11111111
