C00900400
C00900400
Partnumber:
C00900400
Package size:
10 st
Min. order quantity is:
10 st
Angle
90 °
Area of use
Compressed air, Vacuum
Brand Name
Tierre

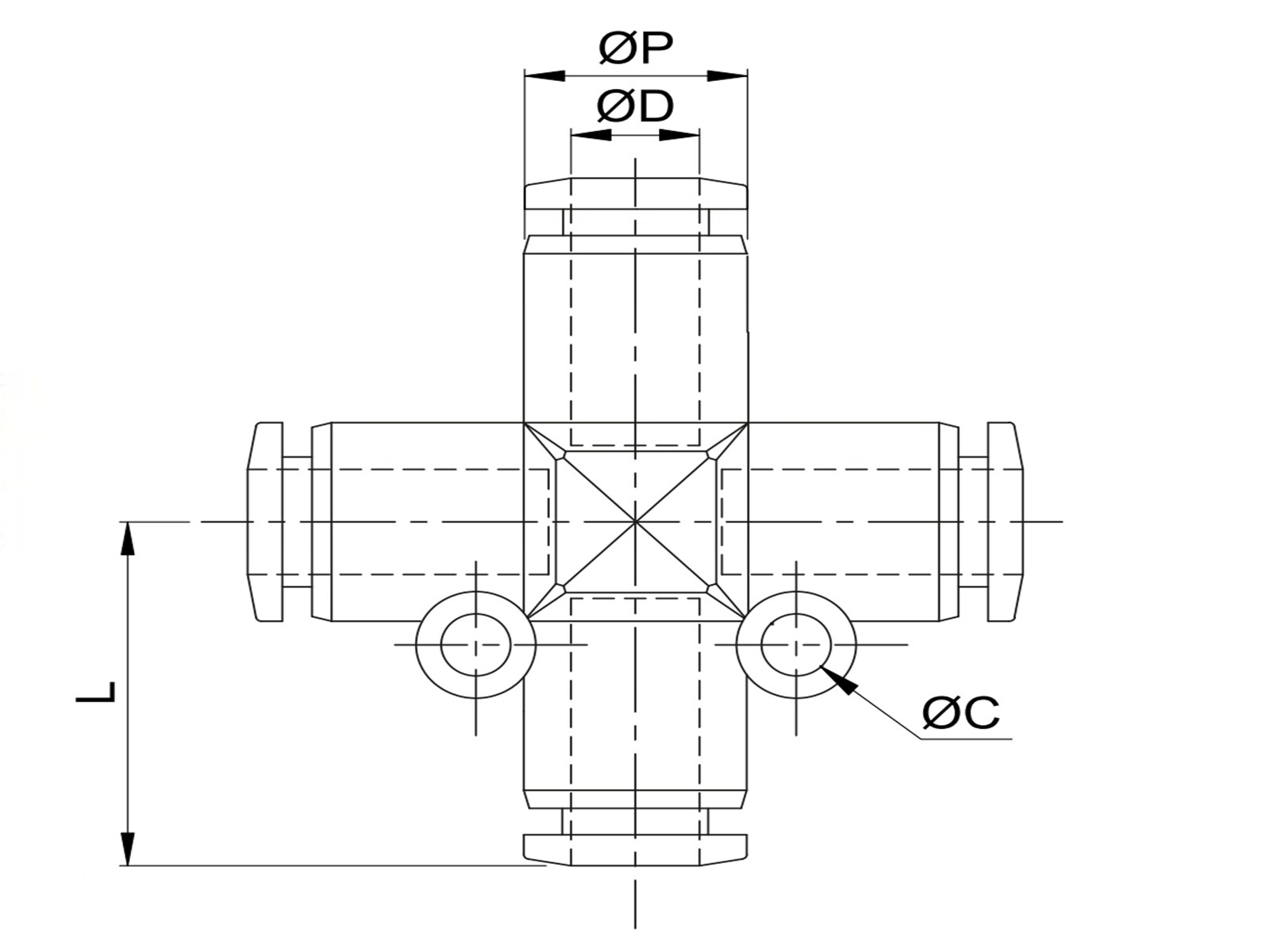

Dimension L
17.5 mm
Dimension ØC
3.2 mm
Dimension ØD
4 mm
Dimension ØP
11.1 mm
Material
Brass, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTRZA0400
Pressure max.
16 bar
Sealing material
NBR
Series
Pneufit C
Temperature max.
+80 °C
Temperature min.
-20 °C
Tube Insertion Depth
15 mm
Tube Tollerance
± 0,1 mm
Vacuum max.
-0.9 bar
Förpackningsstorlek
10 st
Streckkod
366387
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
swe
C00900400
