T-skarv 10mm

Artikelnummer:

C00601000

Förpackningsstorlek:

5 st

Minsta beställningskvantitet:

1 st

Specifications
Dimensions and shipping

Angle

90 °

Area of use

Compressed air, Vacuum

Brand Name

Tierre

Dimension L

27 mm

Dimension ØC

4.2 mm

Dimension ØD

10 mm

Dimension ØP

18.8 mm

Material

Brass, NBR, PBT-plast, POM(Acetal), Stainless steel, Zinc

Model code

WTRUT 1000

Pressure max.

16 bar

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

NBR

Series

WTR

Standard

Silicone Free

Standard ISO

ISO 14743

Temperature max.

+80 °C

Temperature min.

-20 °C

Tube Insertion Depth

20.1 mm

Tube Tollerance

ØD1 ± 0,15 mm

Vacuum max.

-0.999 bar

Package size

5 st

Barcode

170528

Gross weight

0,018 Kg

Net weight

0,018 Kg

Country of origin

ita

Product information

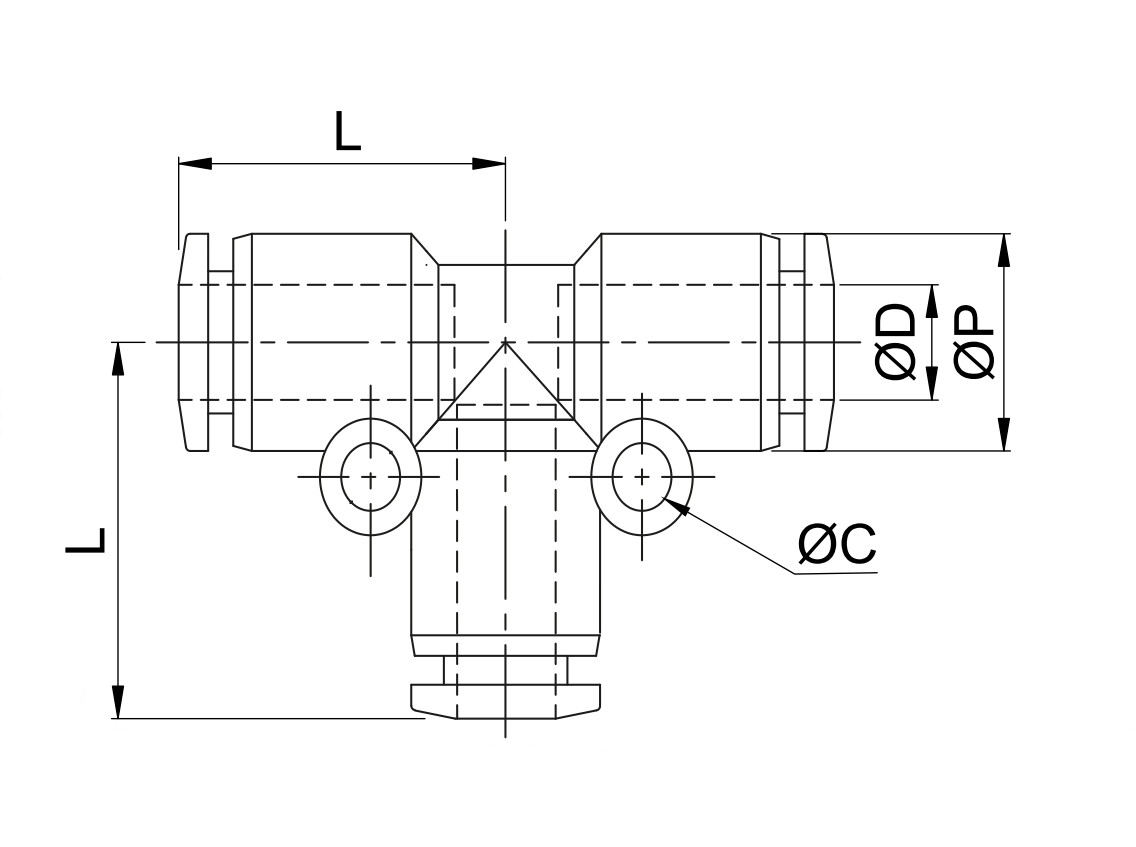

Measure sketch

T-skarv 10mm
