Skaftadapter Rak Ø12 mm Ø10 mm
Skaftadapter Rak Ø12 mm Ø10 mm
Partnumber:
C00231210
Package size:
10 st
Min. order quantity is:
1 st
Angle
0 °
Area of use
Compressed air, Vacuum
Brand Name
Tierre

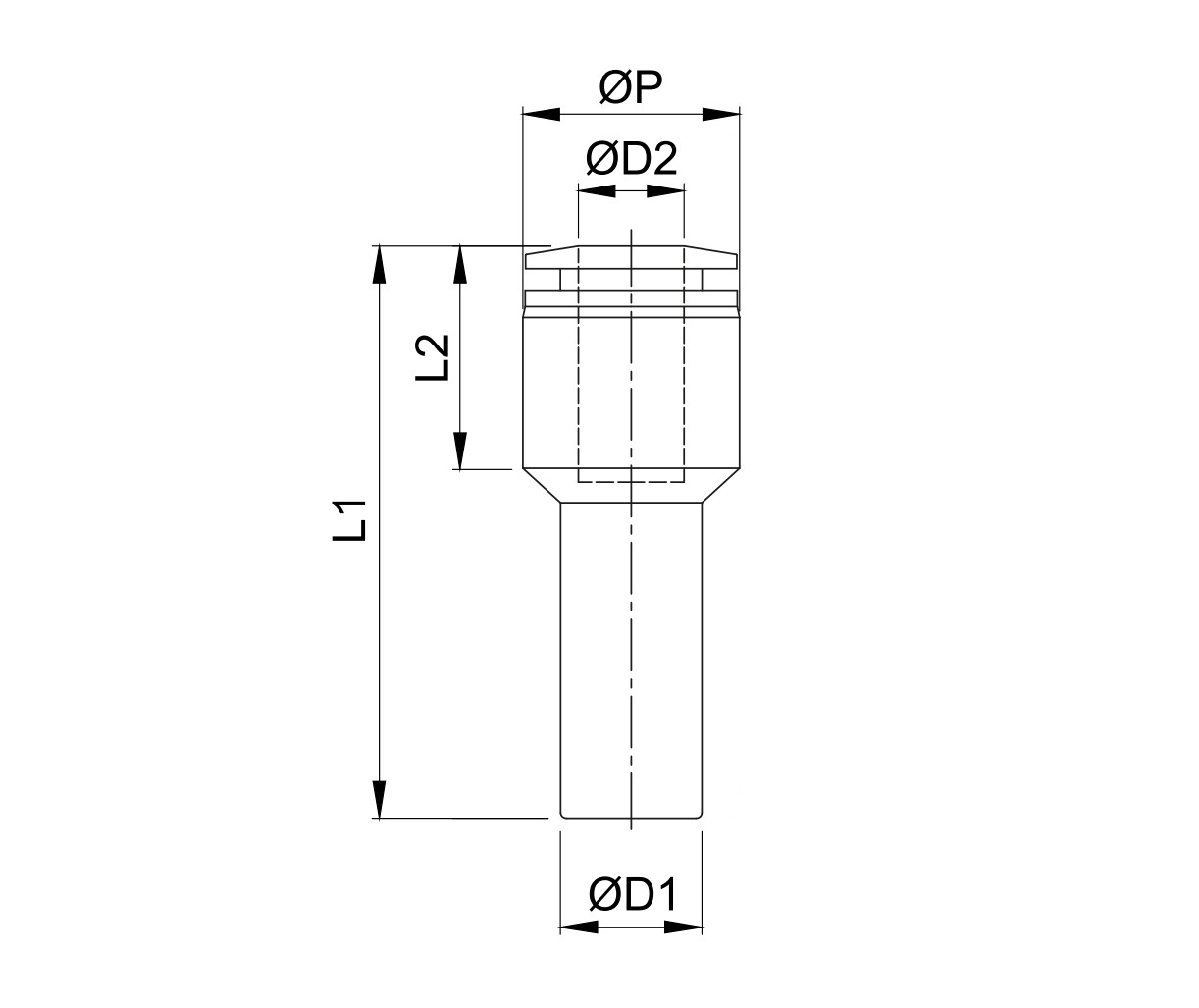

Dimension L1
51.5 mm
Dimension L2
19 mm
Dimension ØD1
12 mm
Dimension ØD2
10 mm
Dimension ØP
18.8 mm
Material
Brass, NBR, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTRGJ1210
Pressure max.
16 bar
Sealing material
NBR
Series
Pneufit C
Temperature max.
+80 °C
Temperature min.
-20 °C
Tube Insertion Depth
ØD1 - 22,9, ØD2 - 20,1 mm
Tube Tollerance
ØD1 ± 0,15, ØD2 ± 0,15 mm
Vacuum max.
-0.9 bar
Package size
10 st
Barcode
170515
Gross weight
Kg
Net weight
Kg
Country of origin
swe
Skaftadapter Rak Ø12 mm Ø10 mm
