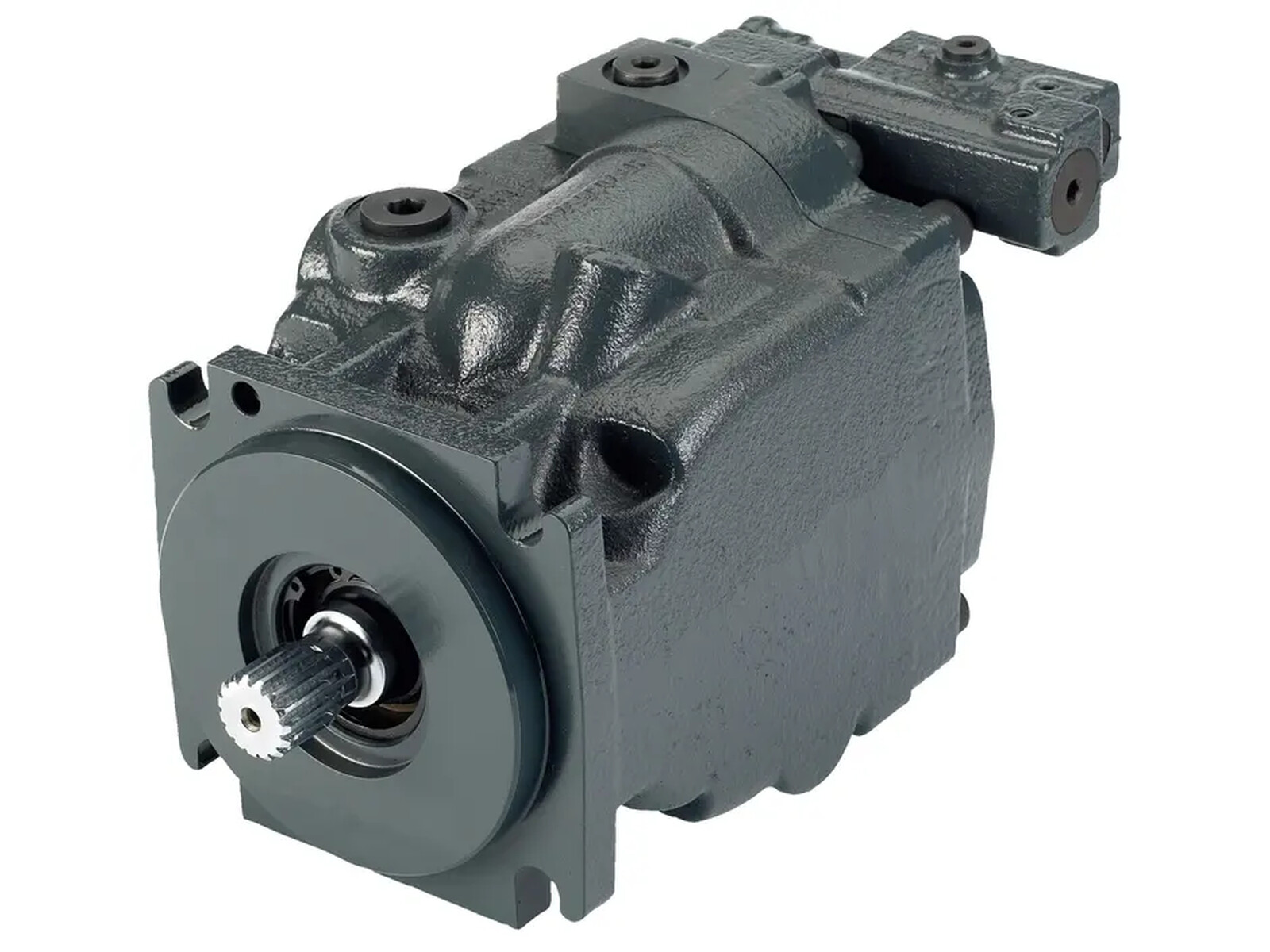

S45 Pump JR-R-S45B-LS-26-20-NN-N-3-S1RF-A2N-FFF-JJJ-NNN
S45 Pump JR-R-S45B-LS-26-20-NN-N-3-S1RF-A2N-FFF-JJJ-NNN
Artikelnummer:
83118153
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
AuxMount/EndCap code
RF
Brand Name
Danfoss
Contamination level max.
22/18/13 - ISO 4406
Continuous rotation max.
2800 rpm
Control
Load sensing
Control type
LS
Displacement
45 cm3
Displacement limiter
Adjustable
Flange SAE/DIN
3000 PSI
Flange inlet
2 "
Flange outlet
1 "
Holes circle
161.9 mm
Model
Frame J
Mounting flange
SAE-C4
Number of mounting holes
4
Number of outer grooves
14
Oil viscocity recommended
9 - 110 cSt
Port position
Side
Pressure continous max.
310 bar
Pressure max.
400 bar
Rear flange
None
Recess
127,0 mm
Rotation direction
Right (CW)
Rotation max. at max. pressure
2800 rpm
Rotational speed max.
3360 rpm
Rotational speed min.
500 rpm
Sensor type
None
Shaft code
S1
Shaft diameter
31,6 mm
Shaft seal material
FKM/FPM (Viton®)
Shaft spline
14T 12/24 SAE-C
Shaft type
Spline
Temperature intermittent max.
+104 °C
Temperature max.
+82 °C
Temperature min.
-40 °C
Förpackningsstorlek
1 st
Streckkod
452575
Bruttovikt
Kg
Nettovikt
29,70 Kg
Ursprungsland
svk
Intrastat artikelkod
84135061
S45 Pump JR-R-S45B-LS-26-20-NN-N-3-S1RF-A2N-FFF-JJJ-NNN
