Pump S45 JR-R-S65C-LS-21-20-NN-N-3-K4RF-A8N-FFF-JJJ-NNN
Danfoss S45 variabel piston pump for open circuit.

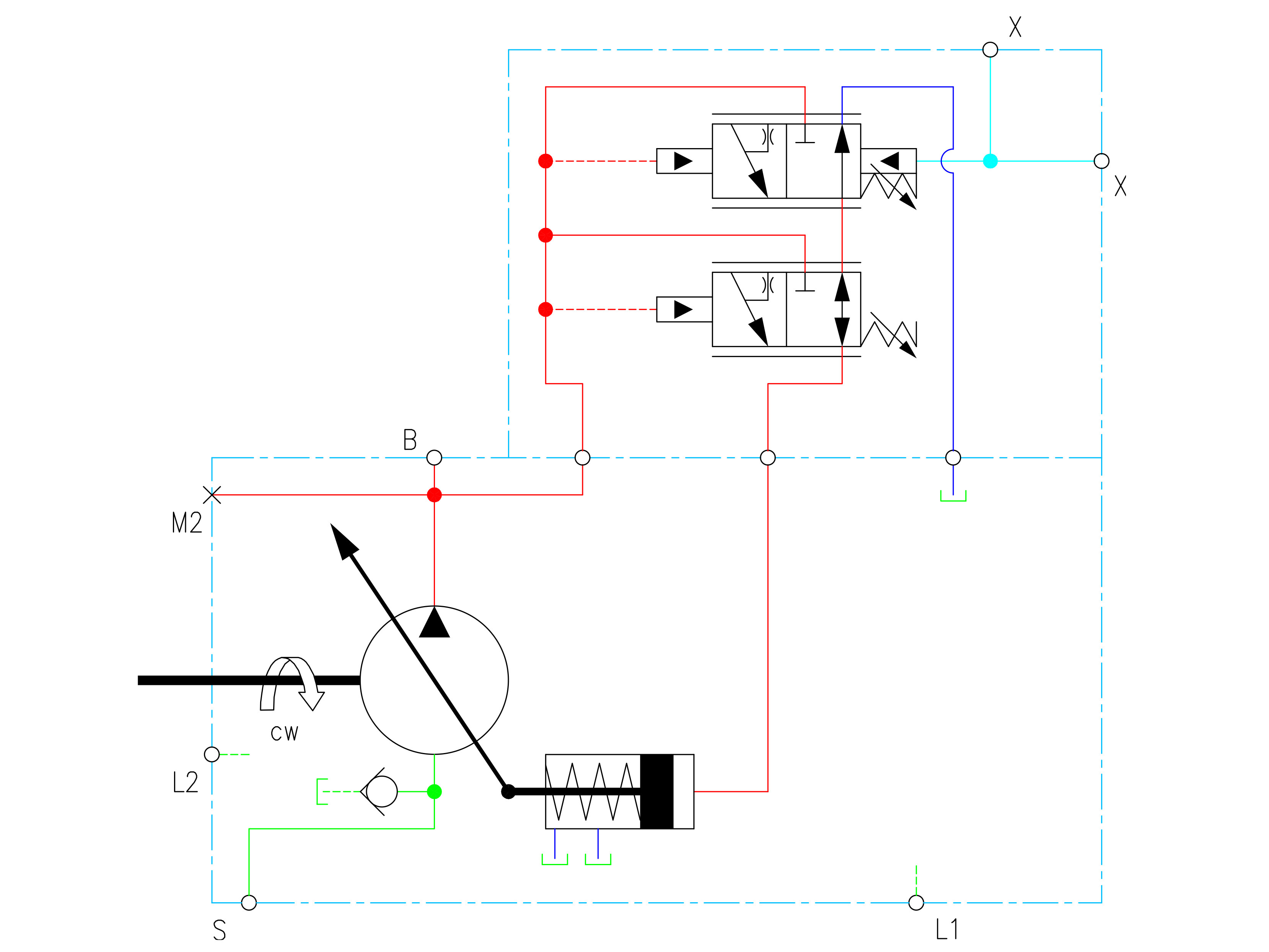

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Varenummer:
83040012
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Aksel diameter
31,75 mm
Aksel kode
K4
Aksel notgang
7,95 mm
Akseltætning materiale
FKM/FPM (Viton®)
Antal montage huller
2
Boltcirkel
146 mm
Ekstra montering/endedæksel type
RF
Flange SAE/DIN
3000 PSI
Flange indgang
2 "
Flange udgang
1 "
Fortrængning
65 cm3
Fortrængningsbegrænser
Adjustable
Forureningsgrad maks.
22/18/13 - ISO 4406
Kontrol
Load sensing
Kontrol type
LS
Model
Frame J
Model kode
JR-R-S65C-LS-21-20-NN-N-3-K4RF-A8N-FFF-JJJ-NNN
Monteringsflange
SAE-B2
Mærke navn
Danfoss
Olieviskositet anbefalet
9 - 110 cSt
Portplacering
Side
Reces
101,6 mm
Rotationshastighed kontinuerligt maks.
2500 rpm
Rotationshastighed maks.
3000 rpm
Rotationshastighed maks. ved maks. tryk
2500 rpm
Rotationshastighed min.
500 rpm
Rotationssretning
Right (CW)
Sensor type
None
Temperatur intermitterende maks.
+104 °C
Temperatur maks.
+82 °C
Temperatur min.
-40 °C
Tryk kontinuerligt maks.
260 bar
Tryk maks.
350 bar
Package size
1 pcs
Barcode
334112
Gross weight
56,00 Kg
Net weight
56,00 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
