Pump FR-L-074B-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN
Danfoss S45 variabel piston pump for open circuit.

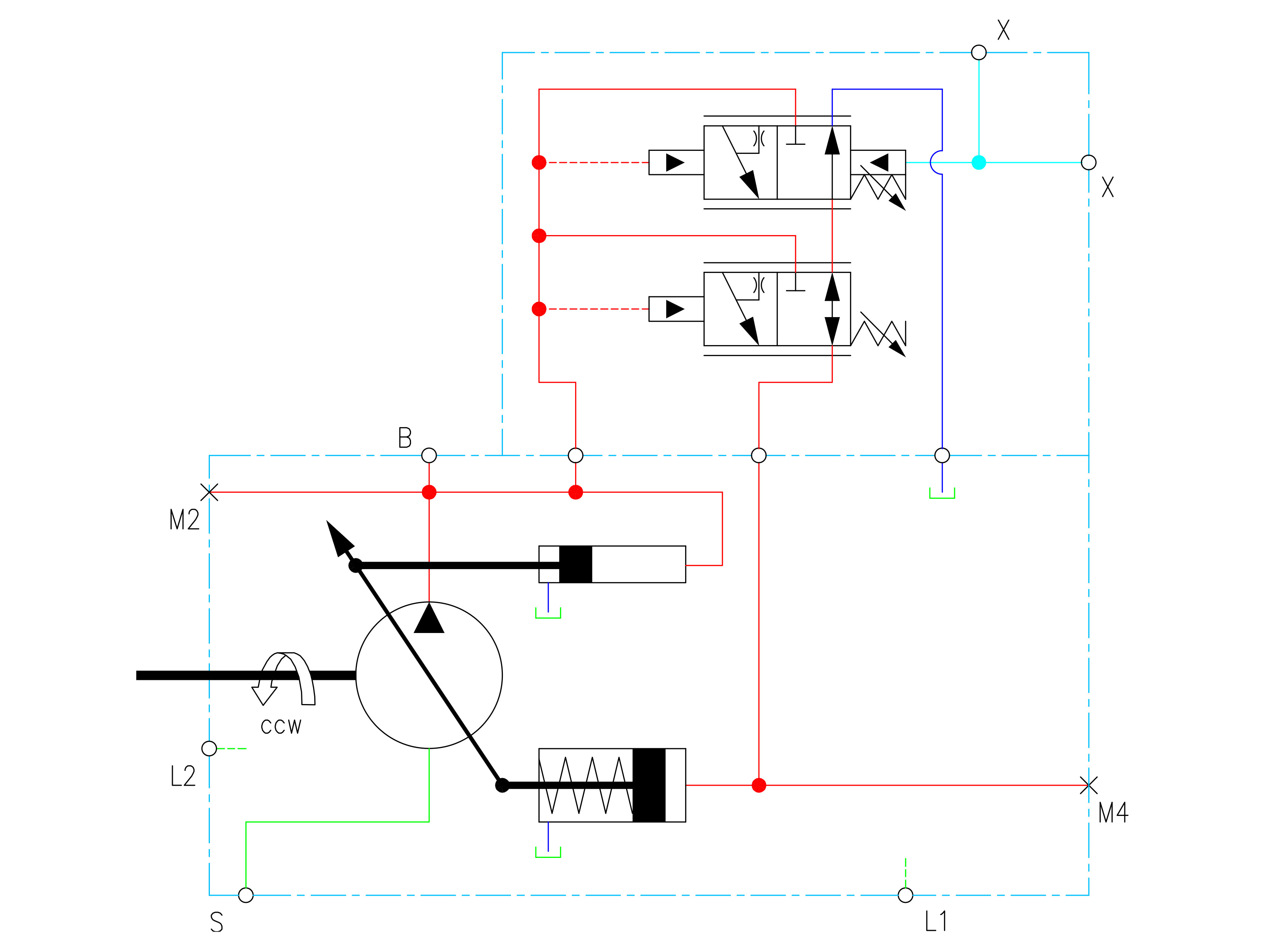

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Partnumber:
83005029
Package size:
1 pcs
Min. order quantity is:
1 pcs
Antal monteringshål
4
Axel diameter
31,2 mm
Axel kod
S1
Axel spline
14T 12/24 SAE-C
Axeltyp
Spline
Axeltätning materiale
FKM/FPM (Viton®)
Bultcirkel
161.9 mm
Deplacement
74 cm3
Ekstra montering/endedæksel typ
A2
Fläns SAE/DIN
3000 PSI
Fläns bak
SAE-A 9T
Fläns ingång
2 "
Fläns utgång
1 "
Föroreningsgrad max.
22/18/13 - ISO 4406
Förträngningsbegränsar
Adjustable
Kont. rotation max.
2400 rpm
Kontroll
Load sensing
Kontrolltyp
LS
Modell
Frame F
Modell kod
FR-L-074B-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN
Monteringsfläns
SAE-C4
Märke namn
Danfoss
Oljeviskositet rekommanderad
9 - 110 cSt
Portplacering
Side
Reces
127,0 mm
Rotation max. vid max. tryck
2400 rpm
Rotationshastighet max.
2800 rpm
Rotationshastighet min.
500 rpm
Rotationsriktning
Left (CCW)
Sensor typ
None
Temperatur intermittent max.
+104 °C
Temperatur max.
+82 °C
Temperatur min.
-40 °C
Tryck kontinuerlig max.
310 bar
Tryck max.
400 bar
Utv. Splinesantal
14
Package size
1 pcs
Barcode
334123
Gross weight
Kg
Net weight
Kg
Country of origin
Intrastat code
84122981
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
