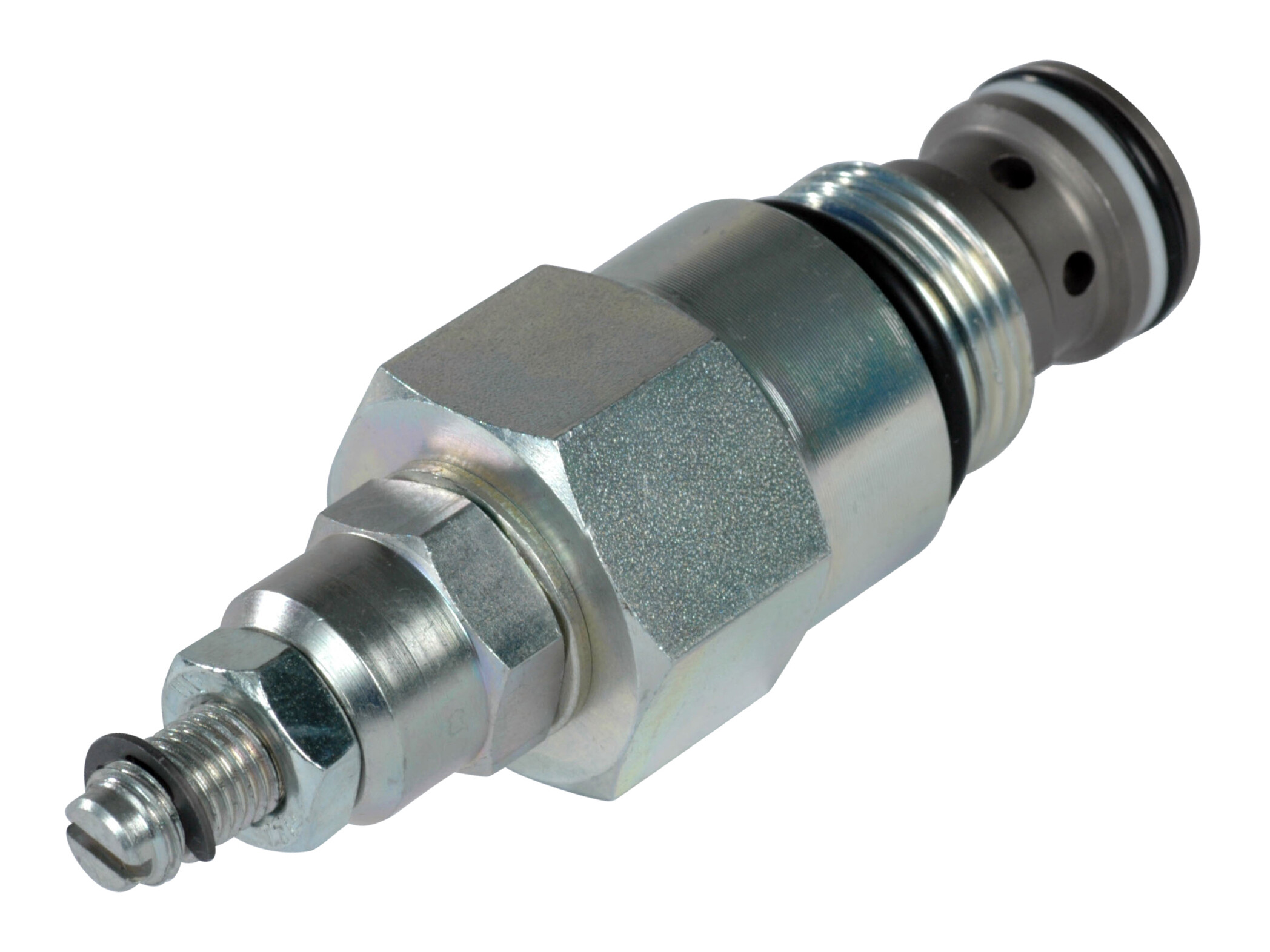

Press.comp Flow Cont. valve 30l/m (3-1l/m) VR 06-EN-2.00-00

This valve is a limited adjustment, pressure compensated, restrictive-type ­flow control valve. To increase the ­flow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise.

Partnumber:
820171219

Package size:
1 st

Min. order quantity is:
1 st
Cavity
NCS06/2

Flow Nominel
30 lpm

Flow maks. reguleret
10 lpm

Flow min. reguleret
3 lpm

Forureningsgrad maks.
20/18/14 - ISO 4406

Model kode
VR06-EN-2.00-00

Mærke navn
Danfoss

Olieviskositet anbefalet
12 - 54 cSt

Temperatur maks.
+100 °C

Temperatur min.
-40 °C

Tilspændingsmoment
45 - 50 Nm

Tryk maks.
315 bar

Trykkompenseret
Yes
Package size
1 st

Barcode
374721

Gross weight
0,20 Kg

Net weight
0,20 Kg

Country of origin
ITA

Intrastat code
84812010

This valve is a limited adjustment, pressure compensated, restrictive-type ­flow control valve. To increase the ­flow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise.
