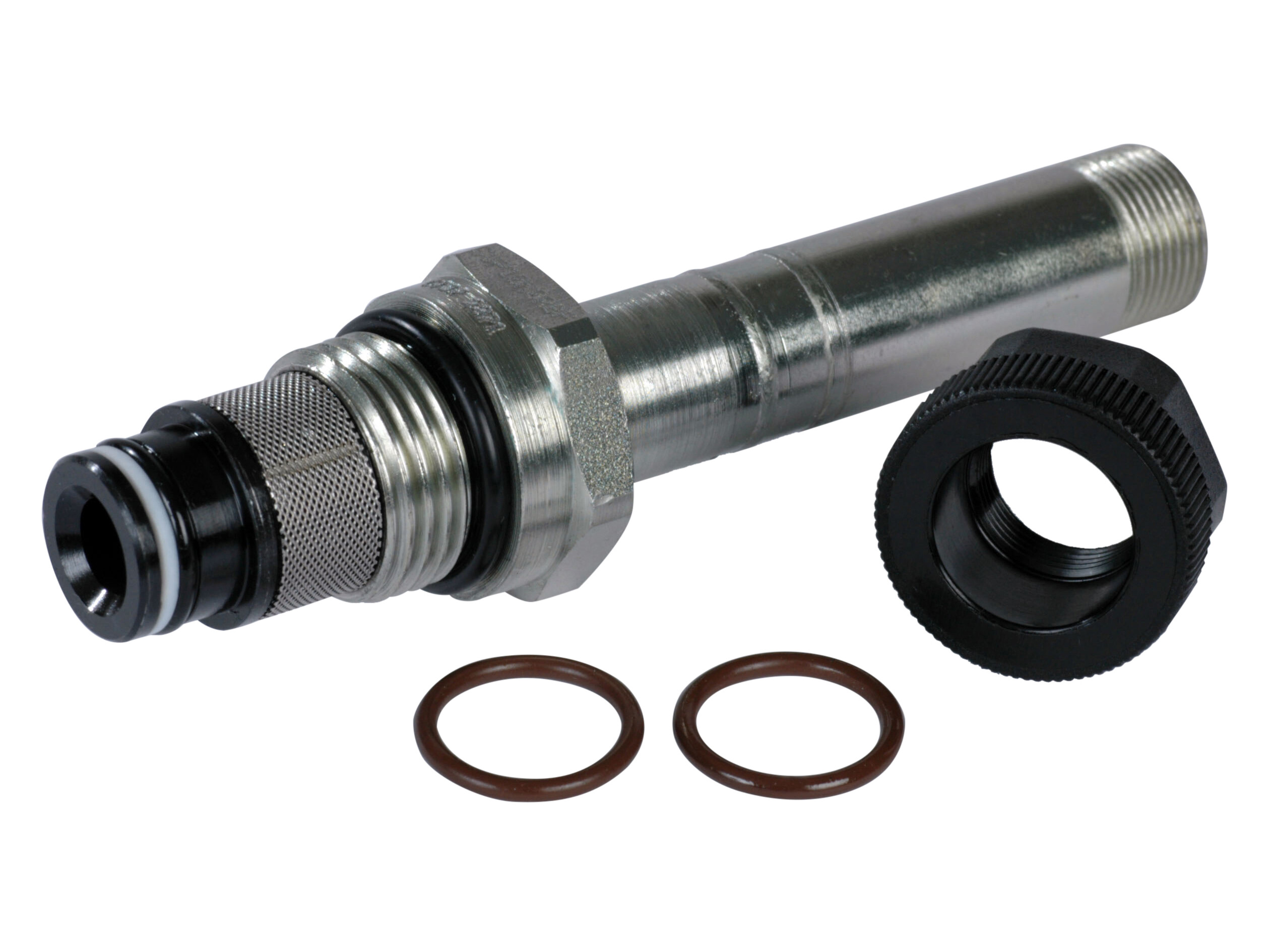

SOLENOID VALVE POPPET SVP10-NOR-00-00-B-F-00

This is a 2-way, 2-position, poppet type, pilot operated, normally open solenoid valve. When de-energized, fl­ow can take place from port 2 to 1 and from 1 to 2. In its energized condition, ­flow can take place from port 1 to 2 but is blocked in the other direction. Leakage is kept to a minimum due to the poppet design. Some models have the option of a filter around port 2, and these come standard with a push pin manual override.

These valves can be used to hold loads in position when energized, interrupt a pressure line where ­ow normally passes in both directions, or bypass excess oil to tank in a fail-safe way.

Partnumber:
805338719

Package size:
1 st

Min. order quantity is:
1 st
Aktivering
Solenoid

Antal väger/positioner
2/2

Flödeshastighet nominell LMin
80 lpm

Föroreningsgrad max.
20/18/14 - ISO 4406

Inbyggt filter
Yes

Kavitet
SDC10-2

Magnetspoltyp
M16

Manuellt styrd
No

Modell kod
SVP10-NOR-00-00-B-F-00

Märke namn
Danfoss

Oljeviskositet rekommanderad
12 - 54 cSt

Packningsmaterial
NBR

Temperatur max.
+100 °C

Temperatur min.
-40 °C

Tryck max.
230 bar

Ventiltyp
NO - Normally open

Åtdragning moment
45 - 50 Nm
Package size
1 st

Barcode
374837

Gross weight
0,20 Kg

Net weight
0,20 Kg

Country of origin

Intrastat code
84812010
