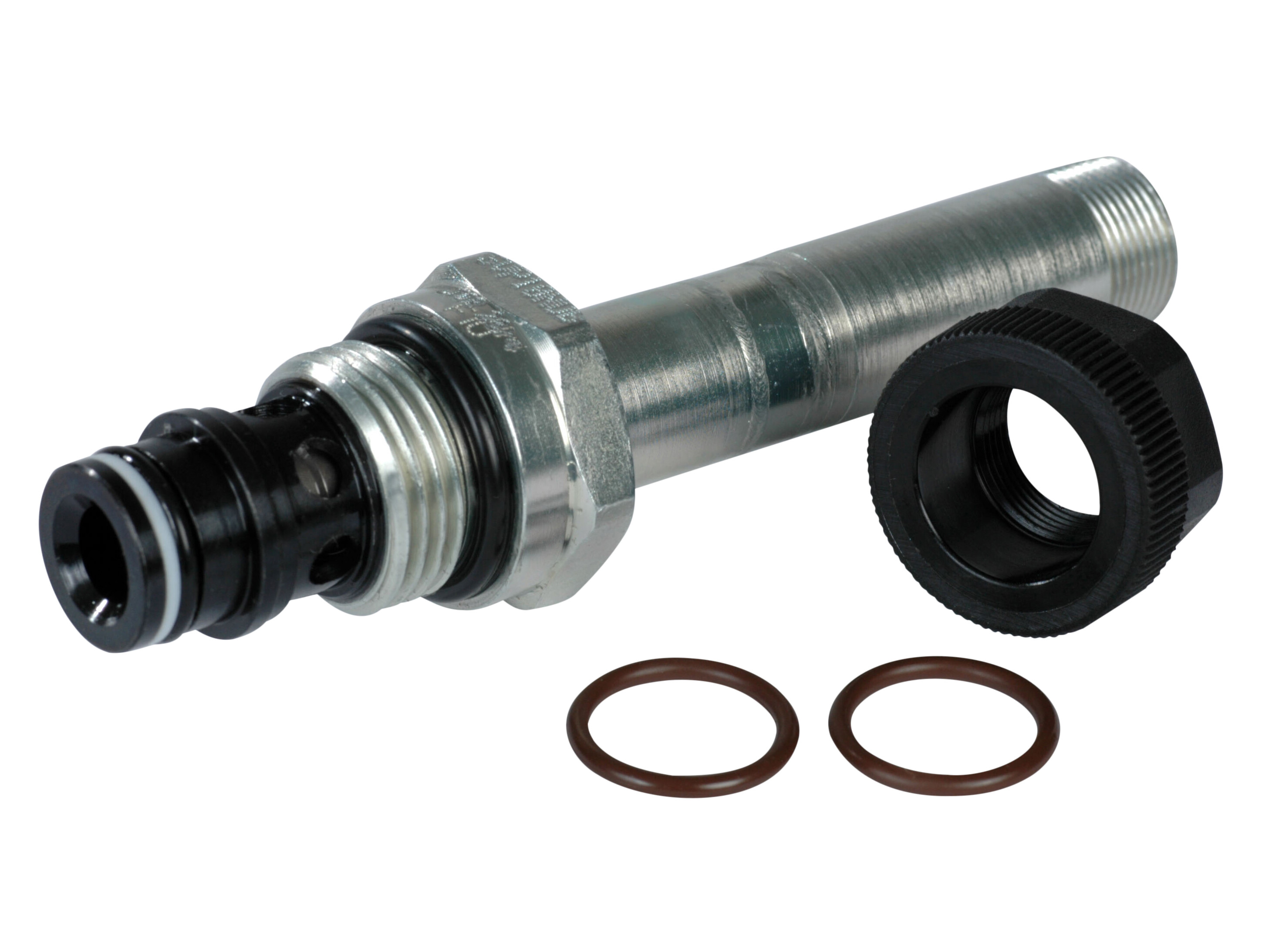

Solenoid Valve 2/2 65l/m NO w.Throttle SVP10-NO-00-00-B-00
This is a 2-way, 2-position, poppet type, pilot operated, normally open solenoid valve. In its de-energized condition, flow can take place from port 2 to 1 but is restricted in the other direction. When energized, flow can take place from port 1 to 2 but is blocked in the other direction.
Leakage is kept to a minimum due to the poppet design. Some models have the option of a filter around port 2, and these come standard with a push pin manual override. These valves can be used to hold loads in position when energized or bypass excess oil to tank in a fail-safe way.
Varenummer:
805315619
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Aktivering
Solenoid
Antal väger/positioner
2/2
Flödeshastighet nominell LMin
80 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Inbyggt filter
No
Kavitet
SDC10-2
Magnetspoltyp
M16
Manuellt styrd
No
Modell kod
SVP10-NO-00-00-B-00
Märke namn
Danfoss
Oljeviskositet rekommanderad
12 - 54 cSt
Packningsmaterial
NBR
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
230 bar
Ventiltyp
NO - Normally open
Åtdragning moment
45 - 50 Nm
Förpackningsstorlek
1 st
Streckkod
374832
Bruttovikt
0,19 Kg
Nettovikt
0,19 Kg
Ursprungsland
ITA
Intrastat artikelkod
85051990
This is a 2-way, 2-position, poppet type, pilot operated, normally open solenoid valve. In its de-energized condition, flow can take place from port 2 to 1 but is restricted in the other direction. When energized, flow can take place from port 1 to 2 but is blocked in the other direction.
Leakage is kept to a minimum due to the poppet design. Some models have the option of a filter around port 2, and these come standard with a push pin manual override. These valves can be used to hold loads in position when energized or bypass excess oil to tank in a fail-safe way.
