Insert 1/2" - M18x1.5 nut 12L
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
Artikelnummer:
4722-12-08
Förpackningsstorlek:
125 pcs
Minsta beställningskvantitet:
1 pcs

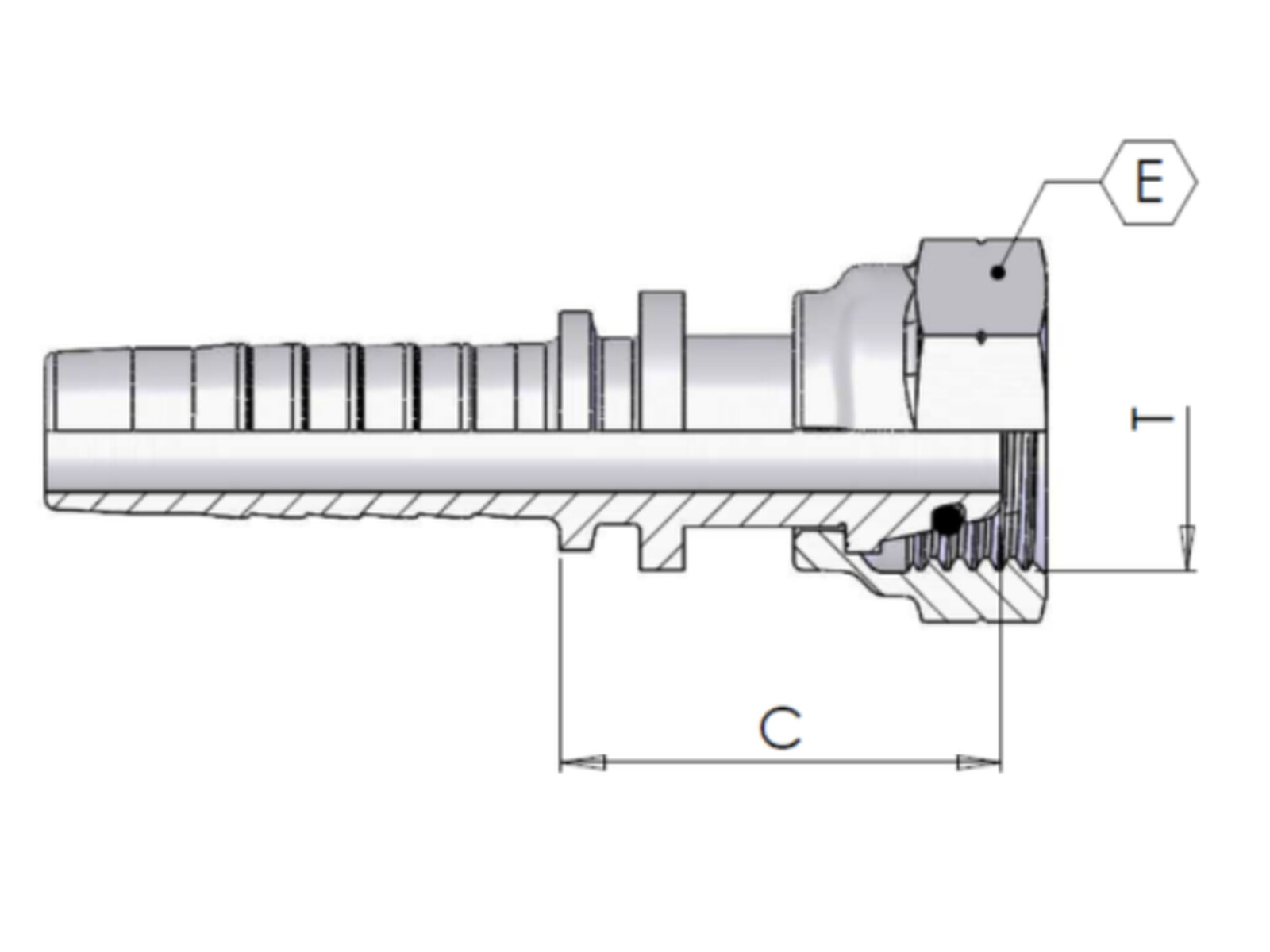

C
28 mm
Diameter rör
12 mm
E
24 mm
Gänga metrisk
M18x1,5
Modell kod
0085-08-18
Märke namn
I.M.M Hydraulics
Nyckelstorlek
24 mm
Packningsmaterial
NBR
Rostbeständighet
720 hours salt spray DIN EN ISO 9227
Serie
L
Slangdimension
1/2 "
Slangkopplingstyp
For separate ferrule
Standard ISO
ISO 12151-2, ISO 8434-1
T
M18x1,5
Temperatur max.
+100 °C
Temperatur min.
-30 °C
Tillverkningsmaterial
Steel
Tryck max.
330 bar
Vinkel
0 °
Ytskiktbehandling
Electro-galvanized / White chromatized
Åtdragning moment
41 Nm
Pakke str.
125 pcs
Stregkode
143091
Brutto vægt
0,08 Kg
Netto vægt
0,08 Kg
Oprindelsesland
ITA
Intrastat varekode
73269098
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
