3/4" Insert - 3/4" SAE3000 flange - 90° - AISI316
Insert to be used with split-flanges.
Sealing: Metal against o-ring (90shore).
Partnumber:
4391-12-12-SY
Package size:
1 st
Min. order quantity is:
1 st
Angle
90 °
Brand Name
Hydraspecma
Build height
61 mm
Diameter flange
38.1 mm

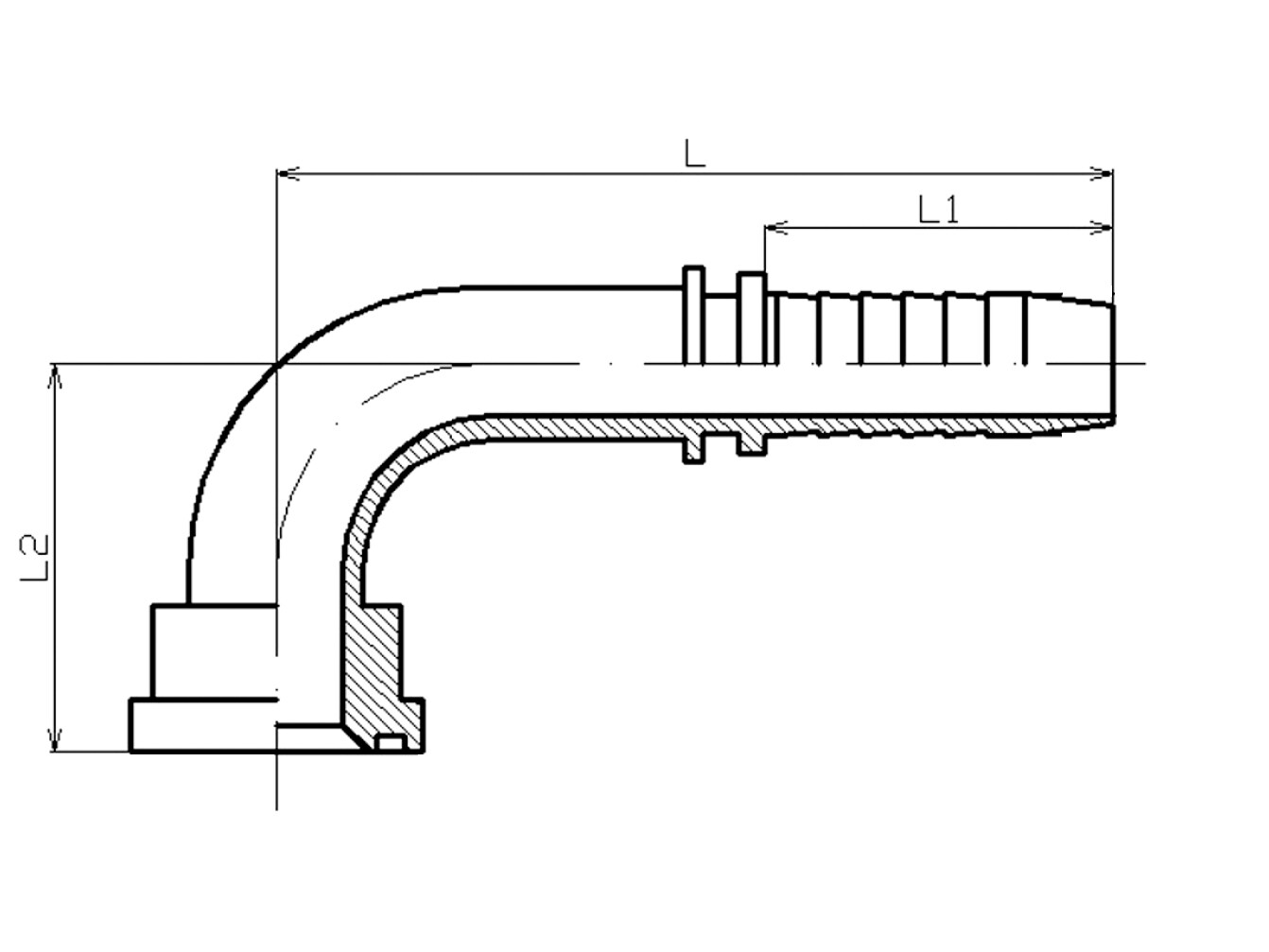

Dimension L
102 mm
Dimension L1
39 mm
Dimension L2
64 mm
Flange
3/4 "
Flange SAE/DIN
3000 PSI
Hose coupling type
For separate ferrule
Hose size
3/4 "
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
841831212
O-ring
24,99X3,53 mm
Pressure max.
350 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Package size
1 st
Barcode
240806
Gross weight
0,28 Kg
Net weight
0,28 Kg
Country of origin
ESP
Intrastat code
73269098
Insert to be used with split-flanges.
Sealing: Metal against o-ring (90shore).
