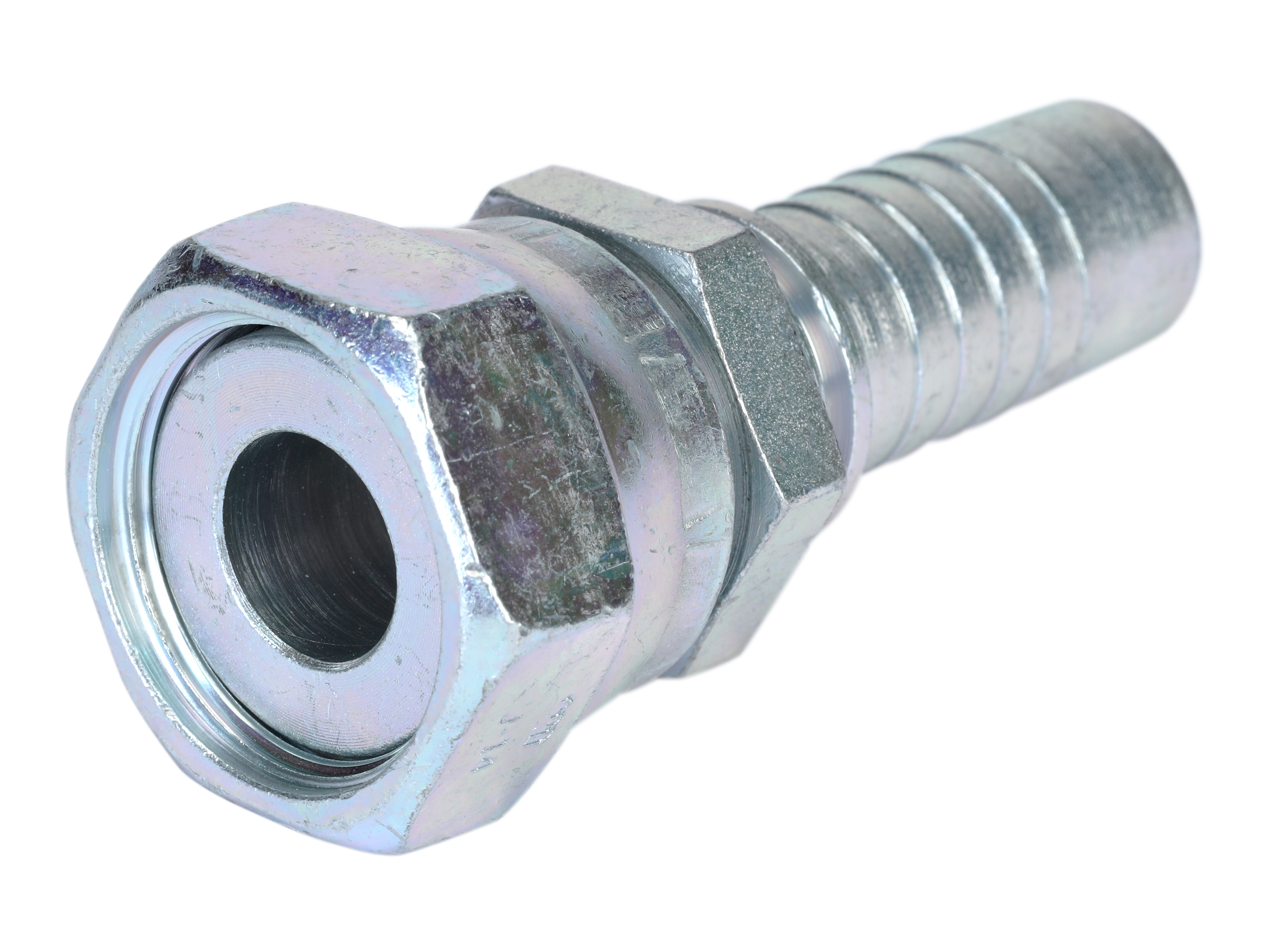

Presskoppling Rak, Inv-ORFS 1.7/16''-12, Ø1'', Extra NV

Presskoppling Rak, Inv-ORFS 1.7/16''-12, Ø1'', Extra NV

PRESSNIPPEL 4224 IO17/16 SL1 L

Partnumber:

4224-16-16-L

Package size:

30 st

Min. order quantity is:

1 st

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

I.M.M Hydraulics

Dimension C

50 mm

Dimension E

41 mm

Dimension E1

36 mm

Dimension T

1.7/16-12 ORFS

Hose coupling type

For separate ferrule

Hose size

1 "

Model code

S05T-16-15

Surface treatment

Electro-galvanized / White chromatized

Thread

1.7/16-12 ORFS

Torque tightening

170 Nm

Package size

30 st

Barcode

142491

Gross weight

0,38 Kg

Net weight

0,38 Kg

Country of origin

ita

Product information
Measure sketch

PRESSNIPPEL 4224 IO17/16 SL1 L
