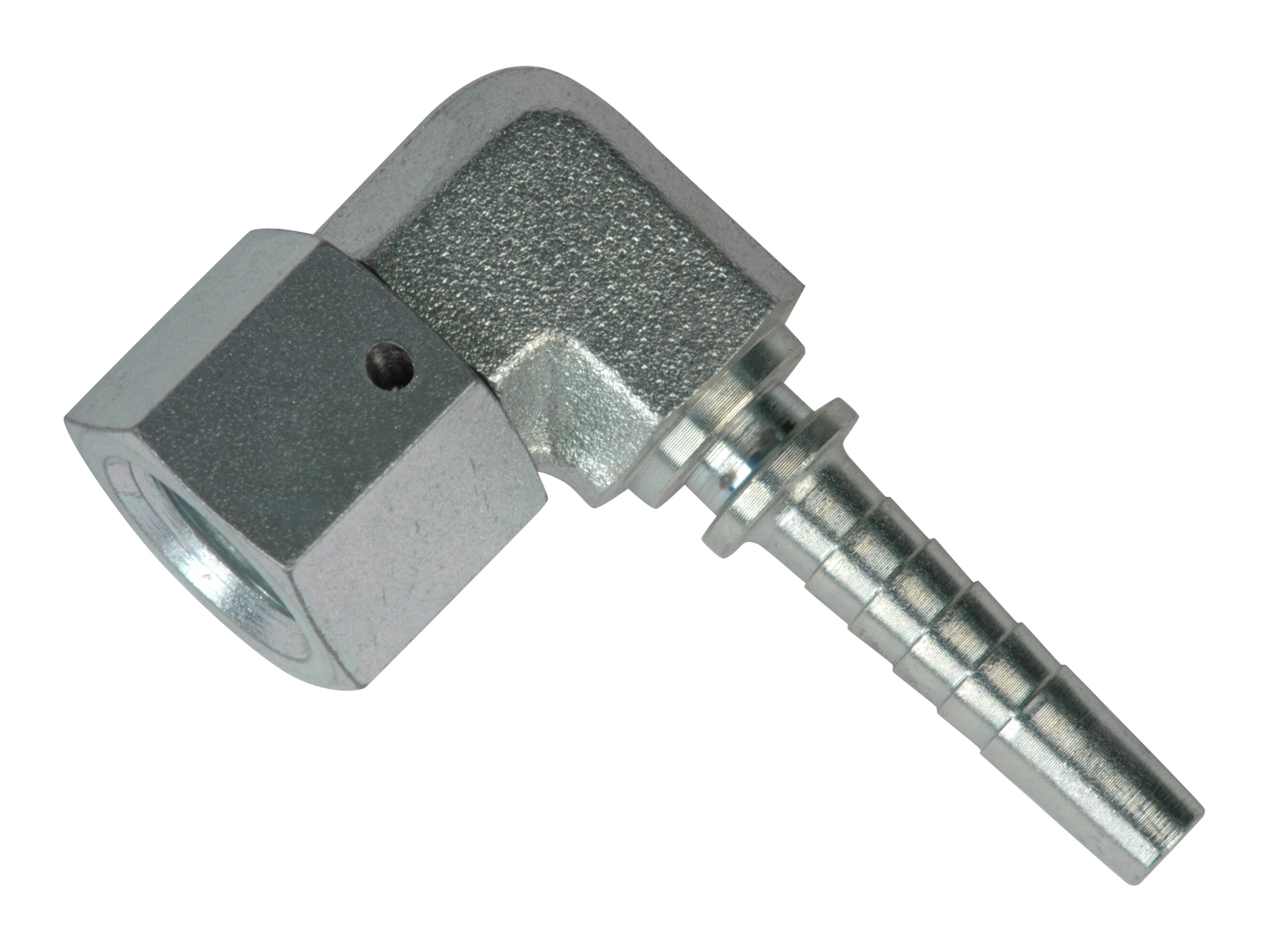

Insert 3/8" - 3/8" BSP nut 90S

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).

Partnumber:
4054-06-06

Package size:
200 st

Min. order quantity is:
1 st
Angle
90 °

Brand Name
I.M.M Hydraulics

Dimension C
23.5 mm

Dimension E
22 mm

Dimension E1
17 mm

Dimension H
23 mm

Dimension T
G 3/8 BSP

Hose coupling type
For separate ferrule

Hose size
3/8 "

Material
Steel

Model code
2310-06-06

Sealing material
NBR

Surface treatment
Electro-galvanized / White chromatized

Temperature max.
+100 °C

Temperature min.
-30 °C

Thread
G 3/8 BSP

Torque tightening
27 Nm
Package size
200 st

Barcode
142090

Gross weight
0,09 Kg

Net weight
0,09 Kg

Country of origin
ITA

Intrastat code
73269098

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).
