Insert 3/8" - 3/8" BSP swivel

Insert 3/8" - 3/8" BSP swivel

Insert 3/8" - 3/8" BSP swivel

Insert with nut (swivel) and BSP male thread.

Connection: BSP male thread with 60° cone, swivel-mount.

Sealing: Metal against metal (cone).

Partnumber:

4010G-06-06

Package size:

1 st

Min. order quantity is:

1 st

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

I.M.M Hydraulics

Dimension C

43 mm

Dimension E

22 mm

Dimension T

G 3/8 BSP

Hose coupling type

For separate ferrule

Hose size

3/8 "

Material

Steel

Model code

035G-06-06

Surface treatment

Electro-galvanized / White chromatized

Thread

G 3/8 BSP

Package size

1 st

Barcode

141858

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

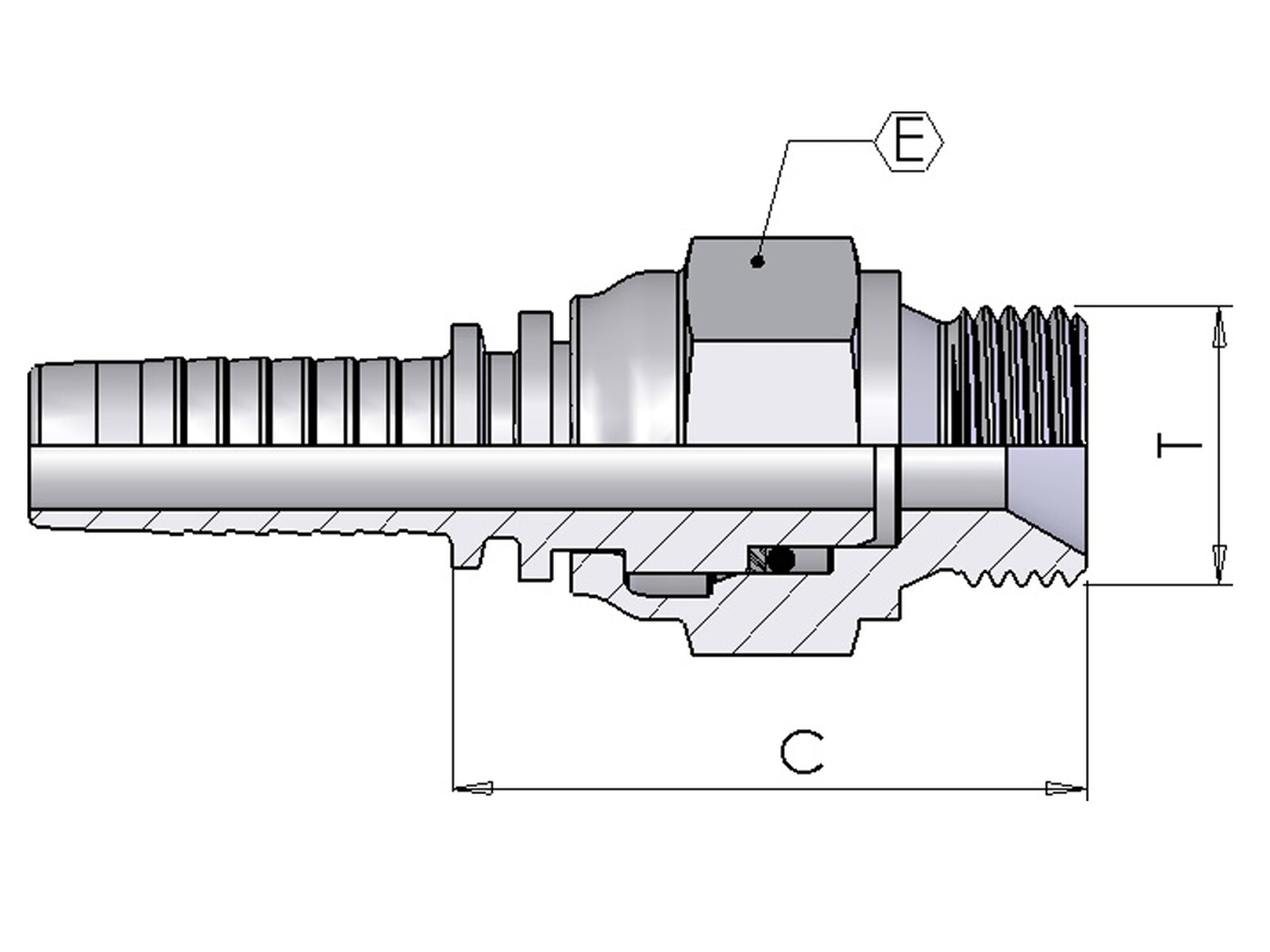

Measure sketch

Insert with nut (swivel) and BSP male thread.

Connection: BSP male thread with 60° cone, swivel-mount.

Sealing: Metal against metal (cone).

Insert 3/8" - 3/8" BSP swivel
