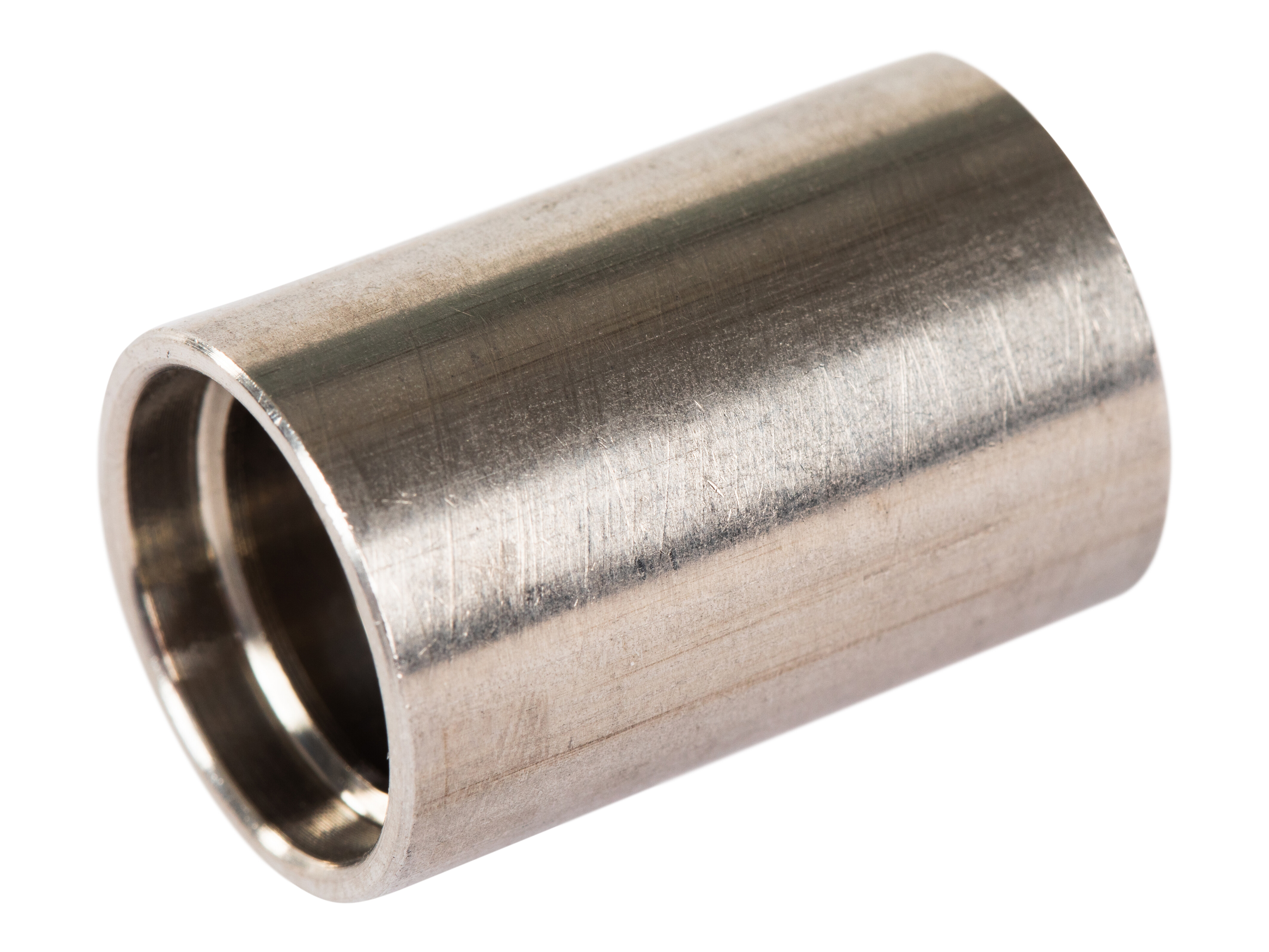

1/4" Ferrule - 1SN/1SC/R6/2TE - AISI316
Crimping ferrule for assembling hydraulic hose couplings by crimping. The ferrule is pressed over the hose cover to mechanically secure the coupling insert and support a tight, stable hose assembly.
Designed for 1/4 inch hose size and specified for 1SC/1SN/R6/2TE hose types. Made from stainless steel AISI 316-L. Key selection dimensions are L 30 mm and L1 24,5 mm, with ØC 11,8 mm, ØD 20 mm and ØE 14,5 mm.
Typical Applications
- Crimped hydraulic hose assemblies where a ferrule is used to secure the coupling to the hose
- Hose workshop assembly and replacement of crimped hose ends
Artikelnummer:
40023-04-SY
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Hydraspecma
Hose size
1/4 "
L
30 mm
L1
24,5 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
ZSC21120400
ØC
11,8 mm
ØD
20 mm
ØE
14,5 mm
Pakke str.
1 pcs
Stregkode
426791
Brutto vægt
0,04 Kg
Netto vægt
0,04 Kg
Oprindelsesland
ESP
Intrastat varekode
73269098
Crimping ferrule for assembling hydraulic hose couplings by crimping. The ferrule is pressed over the hose cover to mechanically secure the coupling insert and support a tight, stable hose assembly.
Designed for 1/4 inch hose size and specified for 1SC/1SN/R6/2TE hose types. Made from stainless steel AISI 316-L. Key selection dimensions are L 30 mm and L1 24,5 mm, with ØC 11,8 mm, ØD 20 mm and ØE 14,5 mm.
Typical Applications
- Crimped hydraulic hose assemblies where a ferrule is used to secure the coupling to the hose
- Hose workshop assembly and replacement of crimped hose ends
