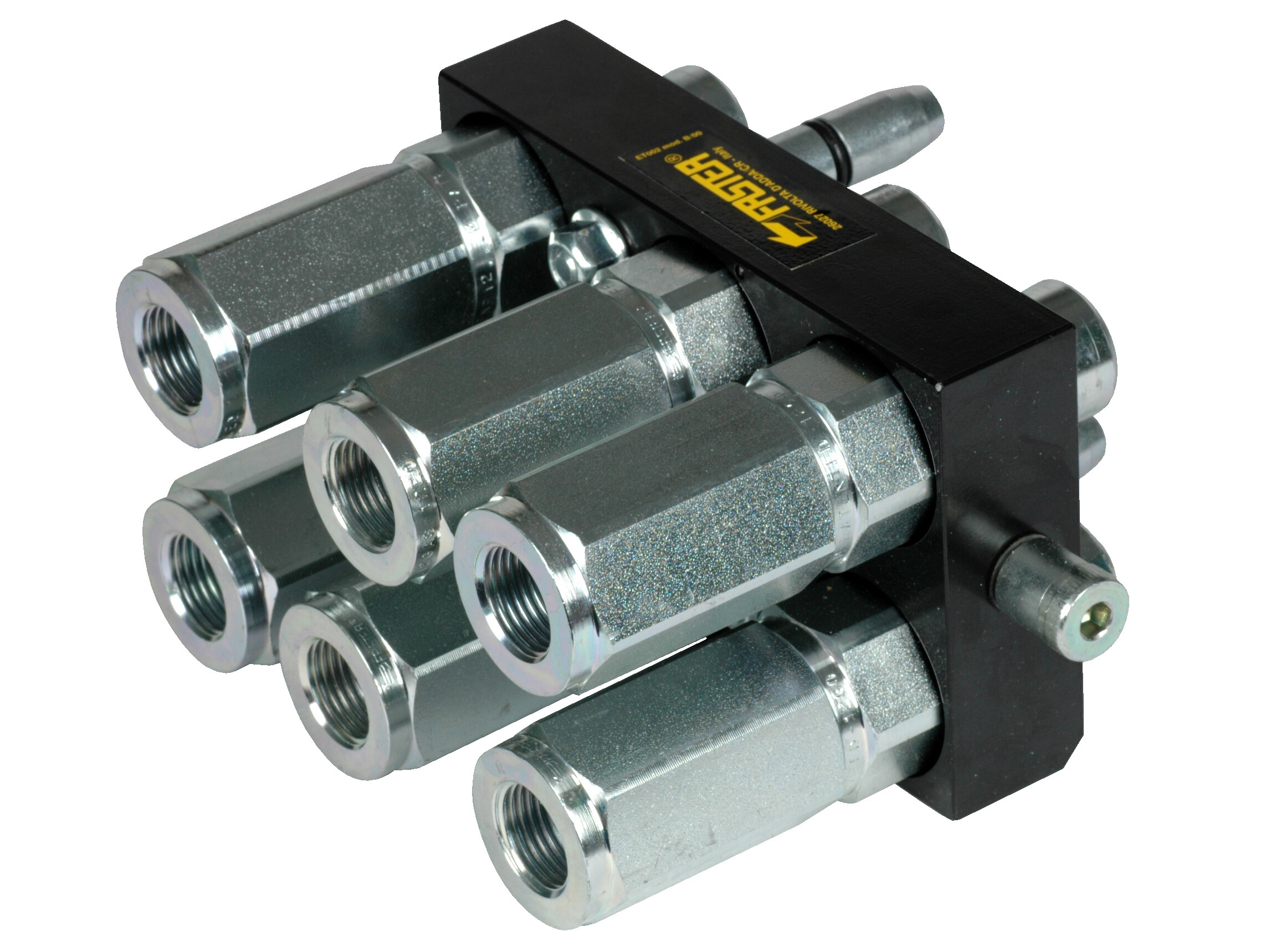

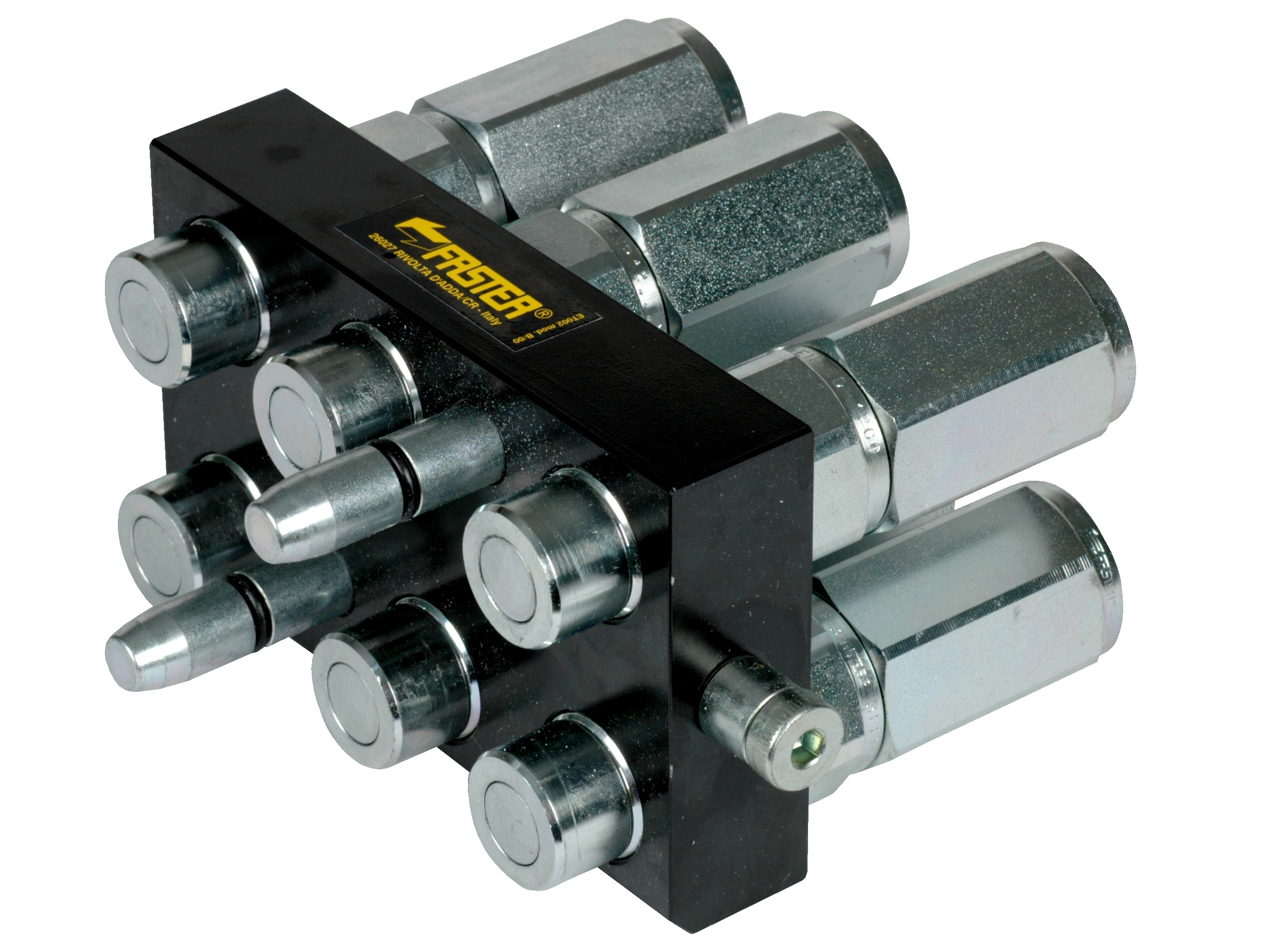

MultiFaster male, 3P608 6 outlets 1/2 , 1/2 BSP fem.

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.

Partnumber:
3P608-6-12GMC

Package size:
1 st

Min. order quantity is:
1 st
Mobile part support for 2P608, 3P608
Artikelnummer: SP608MF
Kopplingspatron MultiFaster Hane 3P 1/2'' 1/2'' BSP
Artikelnummer: KIT3FNP12GASM
Guide pins Ø14x50mm MultiFaster
Artikelnummer: KITGP4
Bolts ø10x30mm MultiFaster
Artikelnummer: KITVP8
Seal kit 1/2 male (10) MultiFaster
Artikelnummer: SKMF12
Antal anslutningar
6

Flödeshastighet nominell LMin
70 lpm

Gänga
G 1/2 BSP

Modell
3P608

Modell kod
3P608-6-12GMC

Märke namn
Faster

Packningsmaterial
NBR, Polyurethane

Rostbeständighet
500 hours salt spray ISO 9227

Serie
P608

Storlek
1/2 "

Temperatur max.
+100 °C

Temperatur min.
-25 °C

Tryck max.
250 bar

Tryck spräng min.
1000 bar

Ytskiktbehandling
Zinc coating (CR III)
Förpackningsstorlek
1 st

Streckkod
338614

Bruttovikt
4,40 Kg

Nettovikt
4,40 Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
