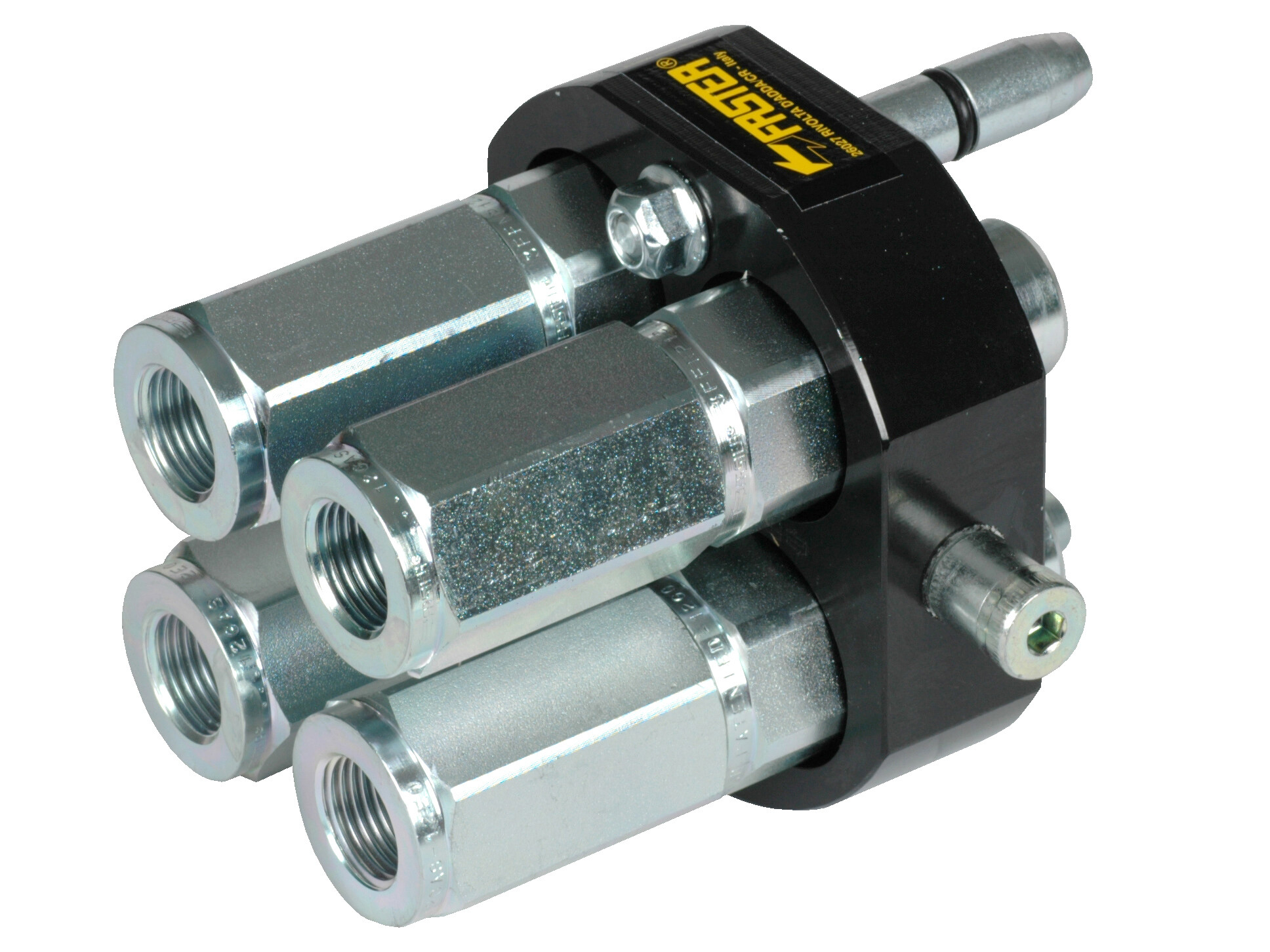

MultiFaster mobile part, 3P508 4x1/2 outlets, 1/2 BSP fem.
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
Partnumber:
3P508-4-12GMC
Package size:
2 st
Min. order quantity is:
1 st
Brand Name
Faster
Corrosion resistance
500 hours salt spray ISO 9227
Flow rate nominal LMin
70 lpm
Model
3P508
Model code
3P508-4-12GMC
Number of connectors
4
Pressure burst min.
1000 bar
Pressure max.
250 bar
Sealing material
NBR, Polyurethane
Series
P508
Size
1/2 "
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread
G 1/2 BSP
Package size
2 st
Barcode
189746
Gross weight
3,04 Kg
Net weight
3,04 Kg
Country of origin
ITA
Intrastat code
84812010
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
