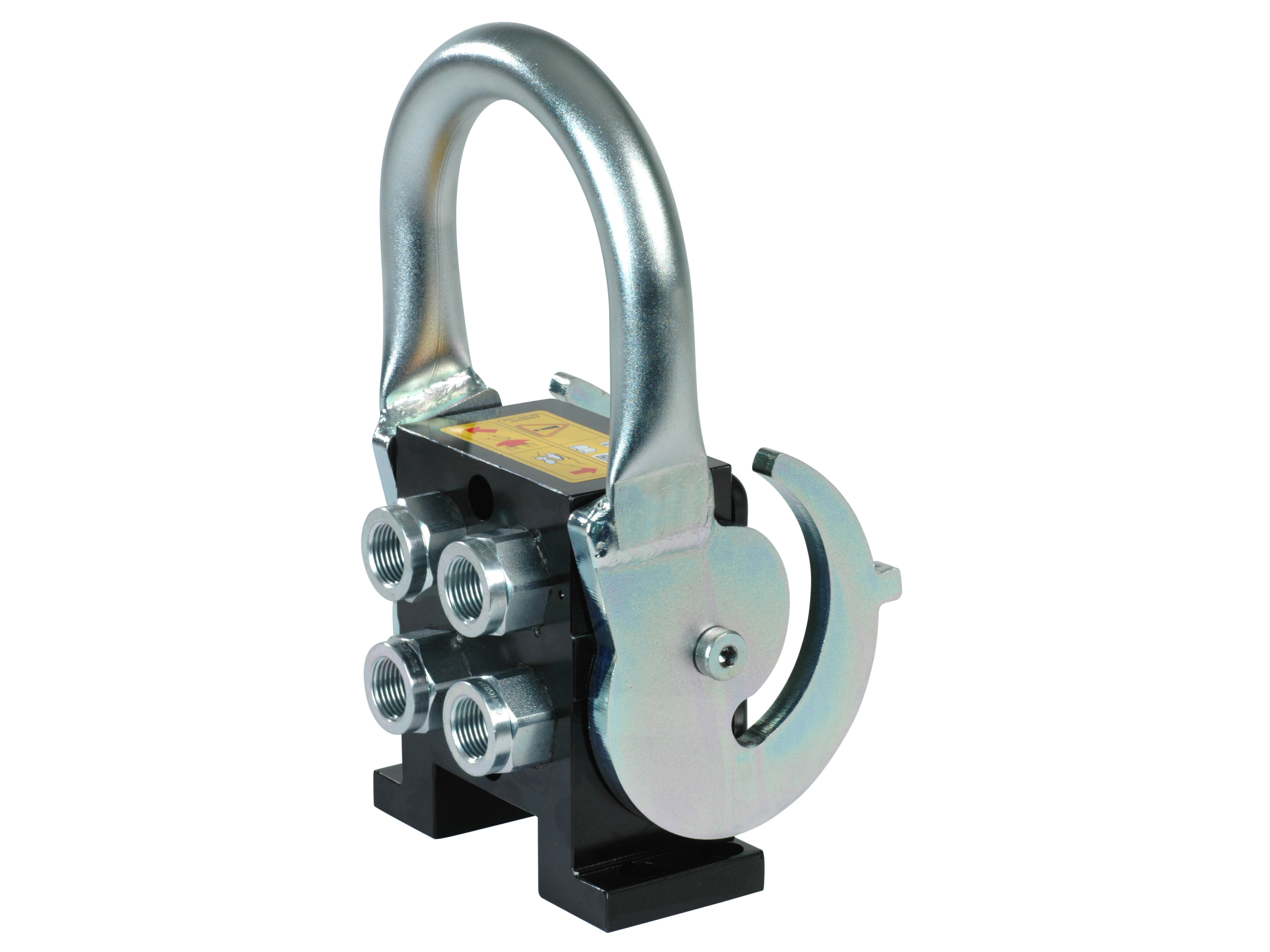

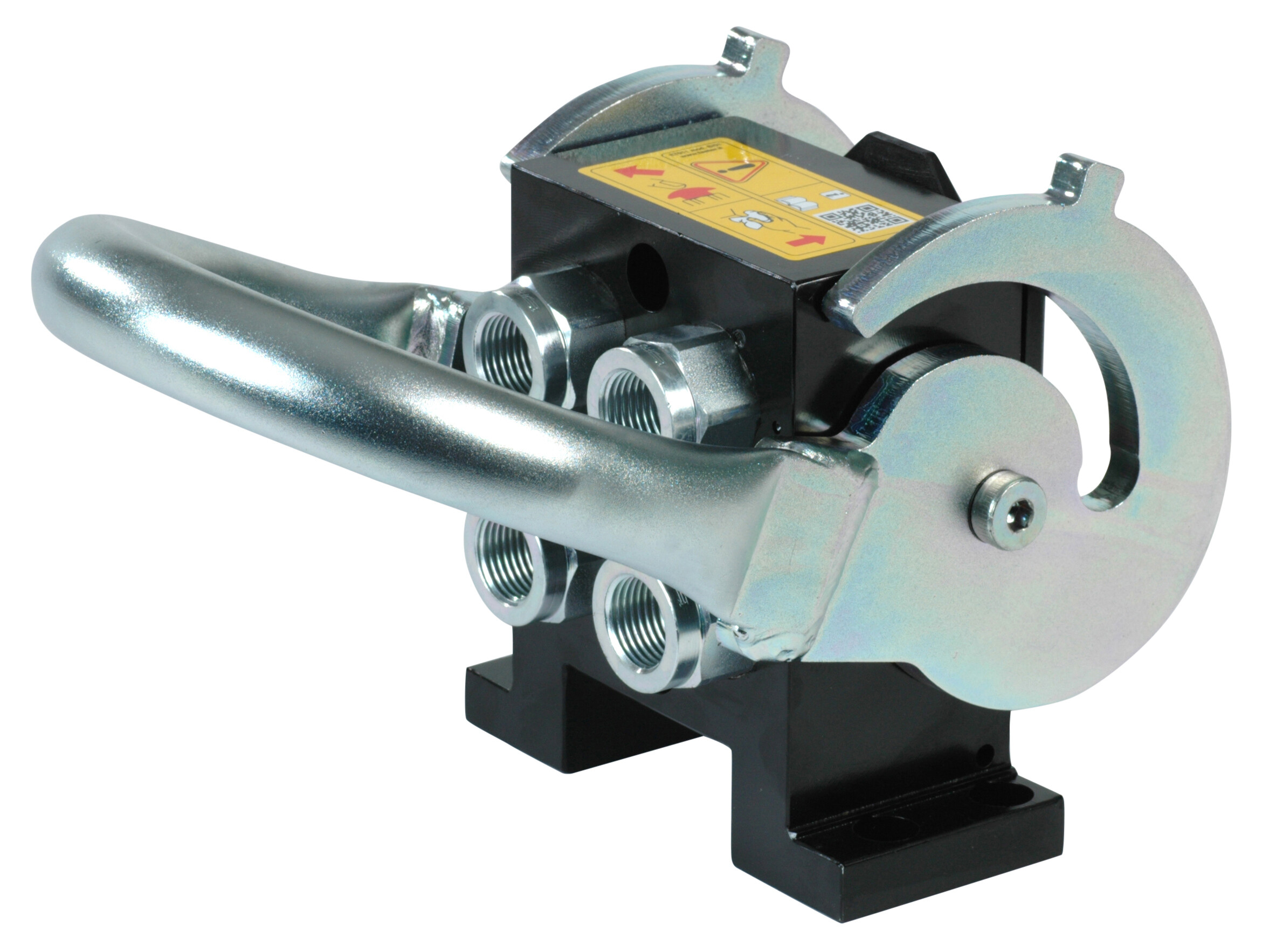

MultiFaster Fixed part, 3P508 4x1/2 outlets, 1/2 BSP fem.
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
Artikelnummer:
3P508-4-12GFC
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Antal anslutningar
8
Flödeshastighet nominell LMin
70 lpm
Gänga
G 1/2 BSP
Koppling under tryck
Not allowed
Modell
3P508
Modell kod
3P508-4-12GFC
Märke namn
Faster
Packningsmaterial
NBR, Polyurethane
Rostbeständighet
500 hours salt spray ISO 9227
Serie
P508
Storlek
1/2 "
Temperatur max.
+100 °C
Temperatur min.
-25 °C
Tryck max.
250 bar
Tryck spräng min.
1000 bar
Ytskiktbehandling
Zinc coating (CR III)
Förpackningsstorlek
1 pcs
Streckkod
338605
Bruttovikt
1,00 Kg
Nettovikt
1,00 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
