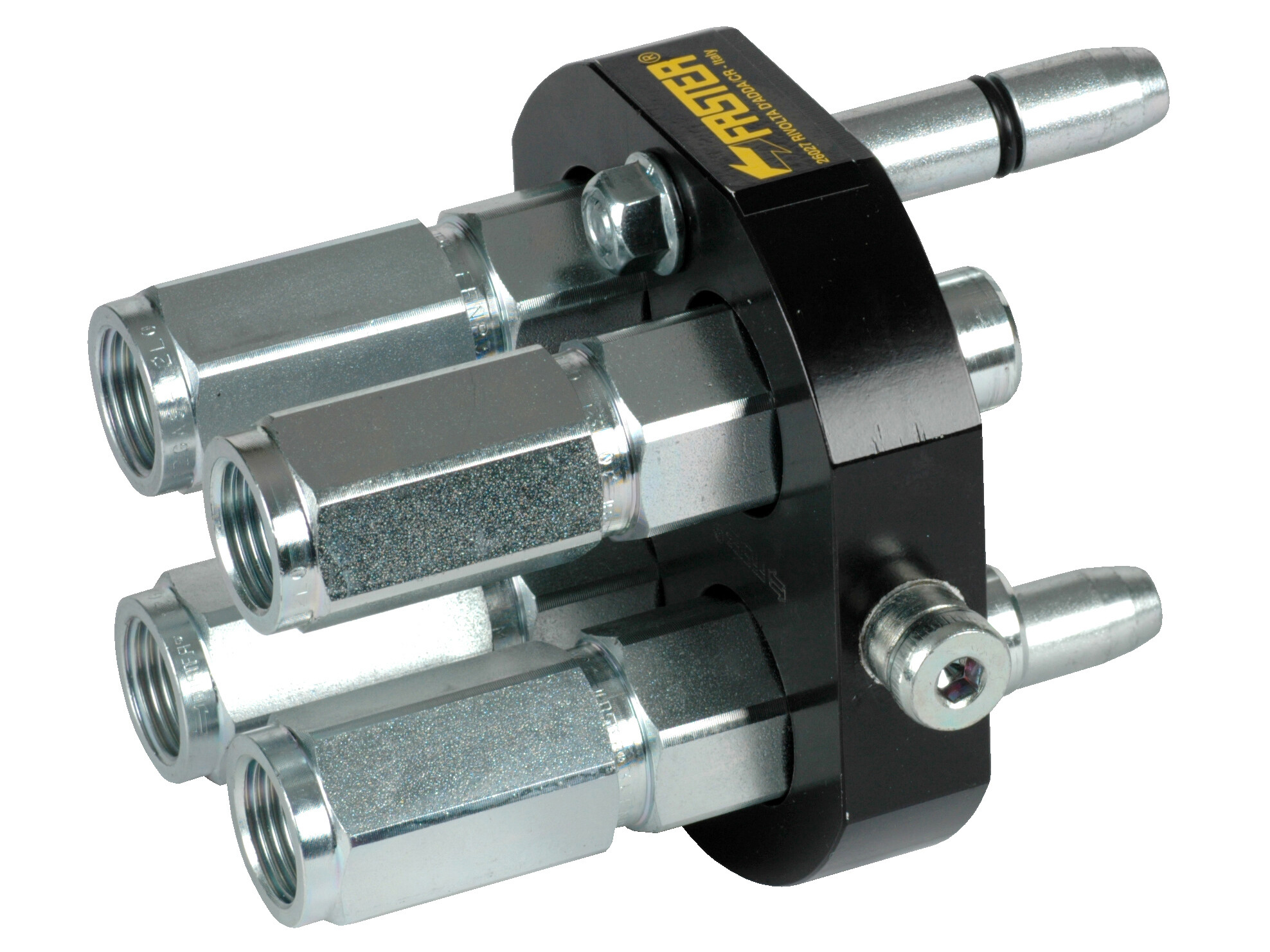

MultiFaster mobile part, 3P506 4x3/8 outlets, 1/2 BSP fem.
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
Partnumber:
3P506-4-12GMC
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Faster
Corrosion resistance
500 hours salt spray ISO 9227
Flow rate nominal LMin
40 lpm
Model
3P506
Model code
3P506-4-12GMC
Number of connectors
4
Pressure burst min.
1000 bar
Pressure max.
250 bar
Sealing material
NBR, Polyurethane
Series
P506
Size
3/8 "
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread
G 1/2 BSP
Package size
1 st
Barcode
338599
Gross weight
1,76 Kg
Net weight
1,76 Kg
Country of origin
ITA
Intrastat code
84812010
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
