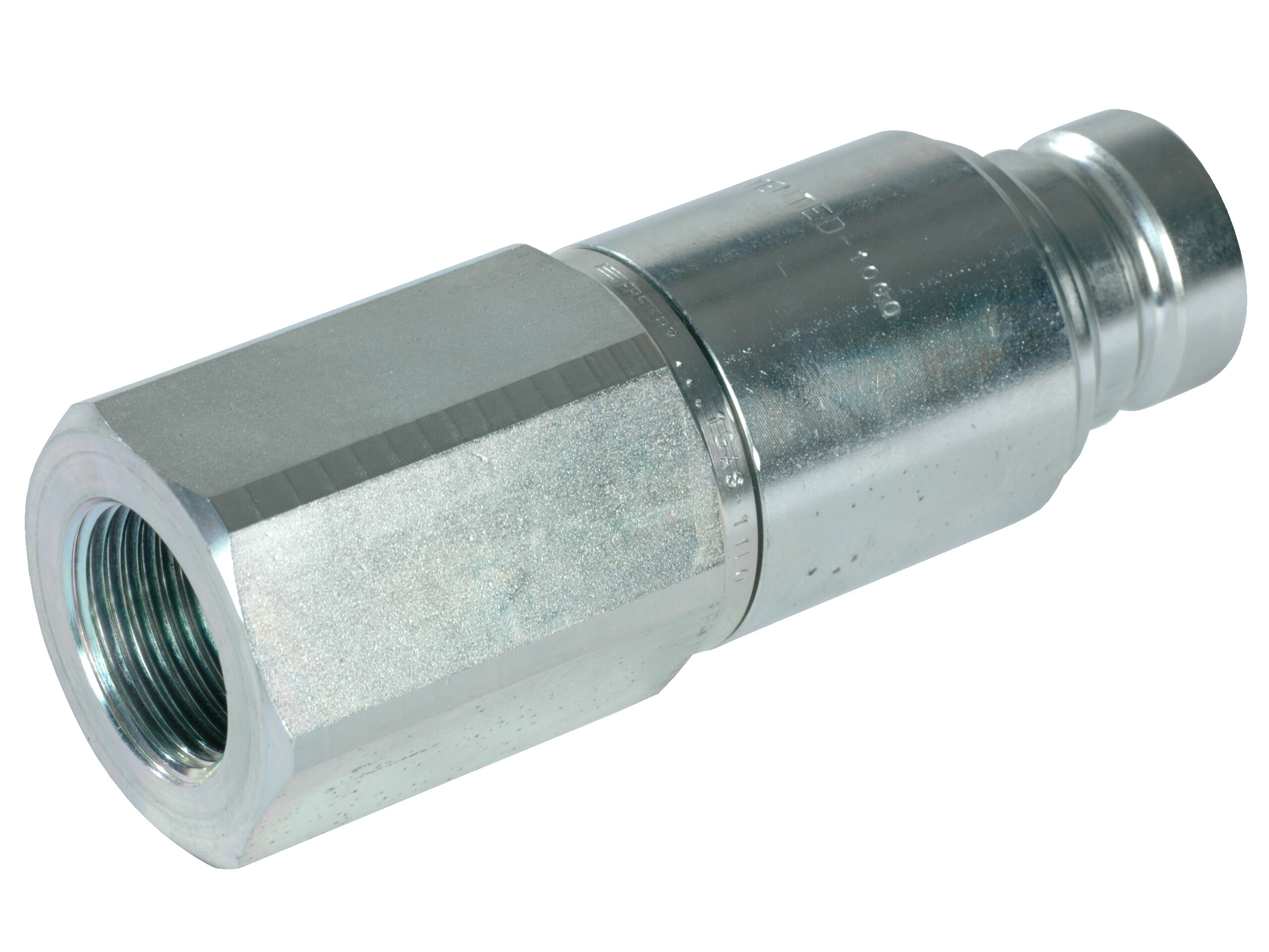

Coupling male flatface 3FFI (ISO16028) - DN25 - 1"BSP
Faster Flat-face quick coupling.
No oil spillage during assembly and disassembly.
The seals are easy to change.
Assembly: Press the trade.
Disassembly: Pull the outer ring of the female part back.
Locking system: Flat-sealed valve (double valve trade).
Assembly/Disassembly: Can be done under pressure.
Partnumber:
3FFI1GASM
Package size:
3 st
Min. order quantity is:
1 st
Användingsområde
Hydraulic oil
DN
25 mm
Dimension E
G 1 BSP
Flödeshastighet nominell LMin
170 lpm
Gänga inv.
G 1 BSP
ISO storlek
25
Modell kod
3FFI 1 GAS M
Märke namn
Faster
Packningsmaterial
NBR, Polyurethane
Rostbeständighet
1000 hours salt spray UNI ISO 9227
Standard ISO
ISO 16028
Storlek
1 "
Temperatur max.
+100 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Steel
Tryck max.
350 bar
Tryckeliminator
Yes
Ytskiktbehandling
Zinc-Nickel plated
Package size
3 st
Barcode
241422
Gross weight
1,40 Kg
Net weight
1,40 Kg
Country of origin
ITA
Intrastat code
84812010
Faster Flat-face quick coupling.
No oil spillage during assembly and disassembly.
The seals are easy to change.
Assembly: Press the trade.
Disassembly: Pull the outer ring of the female part back.
Locking system: Flat-sealed valve (double valve trade).
Assembly/Disassembly: Can be done under pressure.
