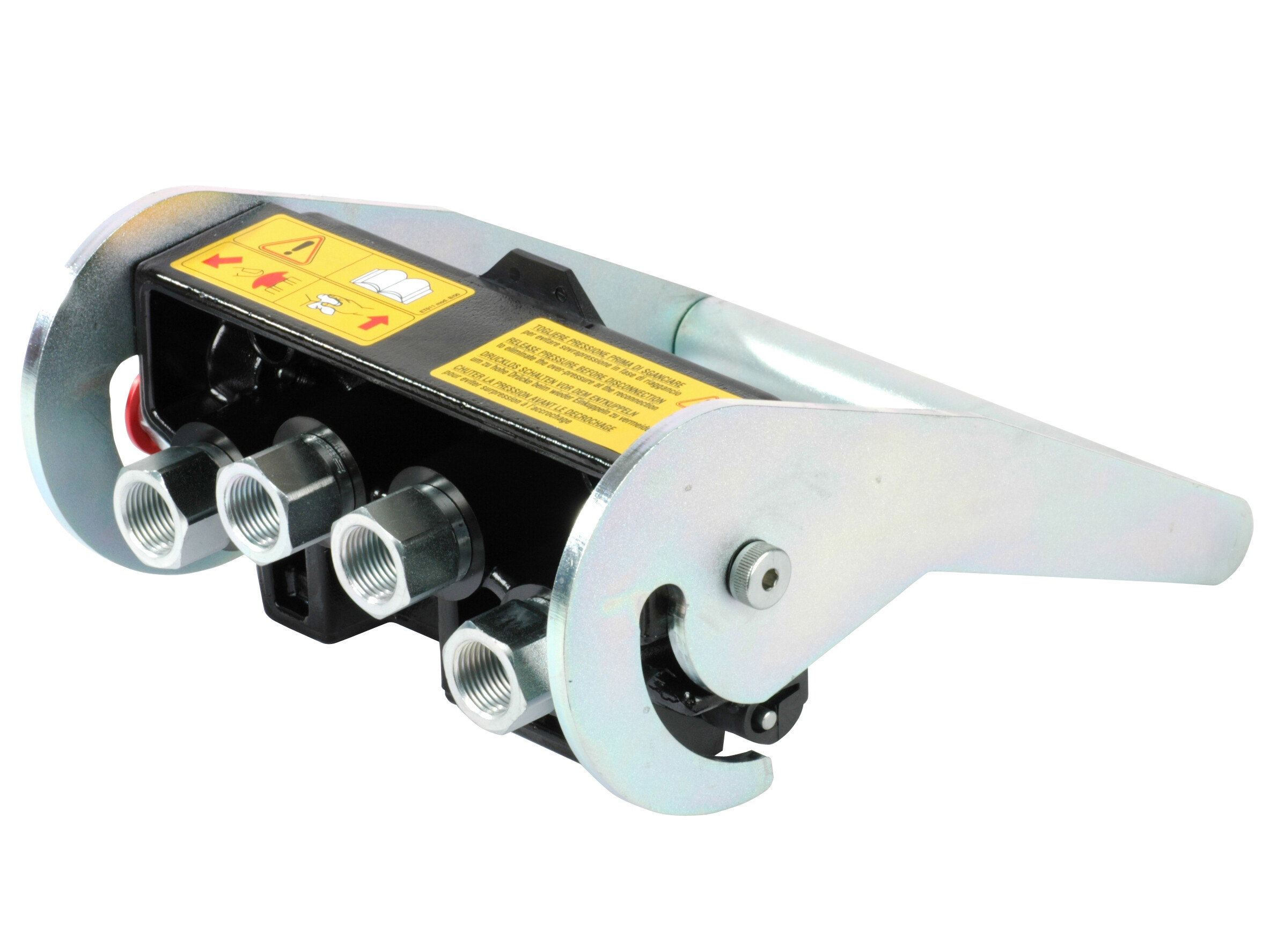

MultiFaster Fixed part 2PS06 4 outlet 3/8 , 1/2 BSP femal

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.

Partnumber:
2PS06-4-12GFC

Package size:
1 st

Min. order quantity is:
1 st
Female 3/8-1/2 2P Multifaster KIT2FNB38-12GF, type 2P
Partnumber: KIT2FNB38-12GF
Safety Lock kit, red
Partnumber: KITSP5S
Automatic dust cap
Partnumber: KITTAP6
Brand Name
Faster

Corrosion resistance
500 hours salt spray ISO 9227

Flow rate nominal LMin
40 lpm

Model
2PS06

Model code
2PS06-4-12GFC

Number of connectors
4

Pressure burst min.
1000 bar

Pressure max.
250 bar

Sealing material
NBR, Polyurethane

Series
PS06

Size
3/8 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread
G 1/2 BSP
Package size
1 st

Barcode
189719

Gross weight
4,46 Kg

Net weight
4,46 Kg

Country of origin
ITA

Intrastat code
84812010

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
