MultiFaster Fixed part, 2P808 8 outlet 1/2 , 1/2 BSP femal

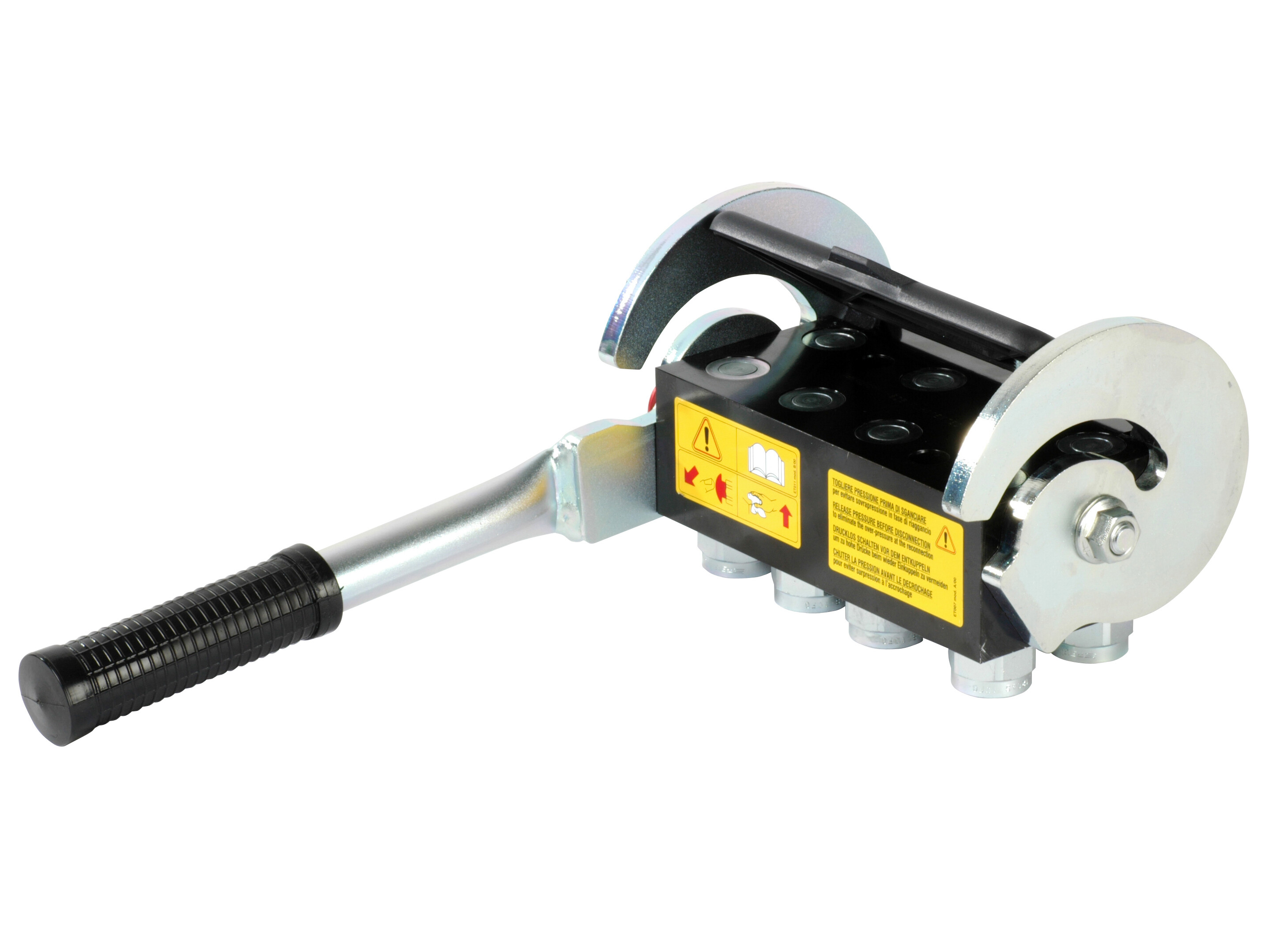

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.

Partnumber:
2P808-8-12GFC

Package size:
2 st

Min. order quantity is:
1 st
Lever for 2P808 MultiFaster
Partnumber: KITLP808
Safety Lock kit, red
Partnumber: KITSP5S
Automatic dust cap
Partnumber: KITTAP8
Brand Name
Faster

Flow rate nominal LMin
70 lpm

Model
2P808

Model code
2P808-8-12GFC

Number of connectors
8

Pressure burst min.
1000 bar

Pressure max.
250 bar

Sealing material
NBR, Polyurethane

Series
P808

Size
1/2 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread
G 1/2 BSP
Package size
2 st

Barcode
189711

Gross weight
6,70 Kg

Net weight
6,70 Kg

Country of origin
ITA

Intrastat code
84812010

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
