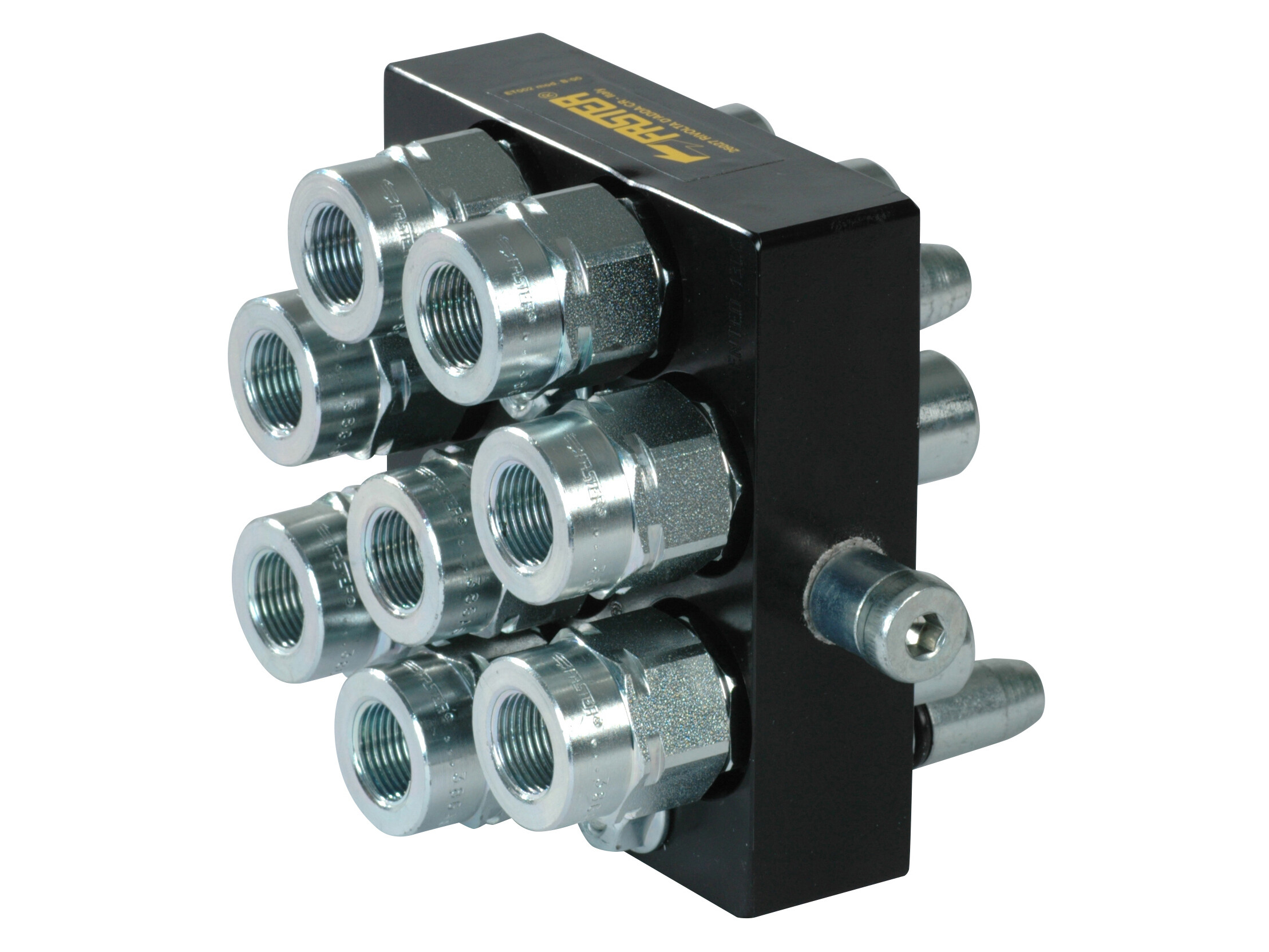

MultiFaster male 2P5068 8x3/8 outlets BSP 3/8
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
Varenummer:
2P5068-8-38GMC
Pakke str.:
2 st
Min. bestillingsenhed er:
1 st
Brand Name
Faster
Flow rate nominal LMin
40 lpm
Model
2P506
Model code
2P5068-8-38GMC
Number of connectors
8
Pressure burst min.
1000 bar
Pressure max.
250 bar
Sealing material
NBR, Polyurethane
Series
P5068
Size
3/8 "
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread
G 3/8 BSP
Pakke str.
2 st
Stregkode
189694
Brutto vægt
2,66 Kg
Netto vægt
2,66 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
