1.1/2" Coupling - 2" SAE6000 flange - Caterpillar®

Heavy flange for Caterpillar machines. To be used with split-flanges.

Note: FLC flanges are designed with a thicker flange head. The 14.2 mm flange dimension is frequently found on Caterpillar equipment. This flange lets the user utilise the Caterpillar flange halves where practical when he replaces the hose assembly. At the users option, standard Code 62 flanges and halves can be used in place of the Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between 7.8 and 12.6 mm.

Artikelnummer:
24GSM32FLC

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
Angle
0 °

Brand Name
Gates

Corrosion resistance
500 hours salt spray ASTM B-117

Diameter flange
63.5 mm

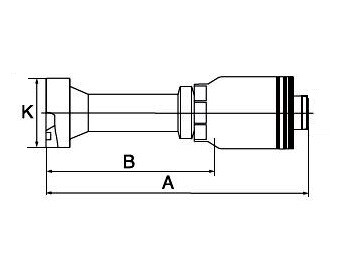

Dimension A
200 mm

Dimension B
105 mm

Dimension K
79.5 mm

Flange
1.1/2 "

Flange SAE/DIN
6000 PSI

Hose coupling type
With fixed ferrule

Hose size
2 "

Material
Steel

Model code
24GSM-32FLC

O-ring
47,22X3,53 mm

Pressure max.
420 bar

REACH compliant
Yes

RoHs compliant
Yes

Shore
90

Standard ISO
ISO 6162-2

Standard SAE
SAE J518 Code 62

Surface treatment
TuffCoat™
Förpackningsstorlek
1 st

Streckkod
288081

Bruttovikt
1,90 Kg

Nettovikt
1,90 Kg

Ursprungsland
USA

Intrastat artikelkod
73269098

Heavy flange for Caterpillar machines. To be used with split-flanges.

Note: FLC flanges are designed with a thicker flange head. The 14.2 mm flange dimension is frequently found on Caterpillar equipment. This flange lets the user utilise the Caterpillar flange halves where practical when he replaces the hose assembly. At the users option, standard Code 62 flanges and halves can be used in place of the Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between 7.8 and 12.6 mm.
