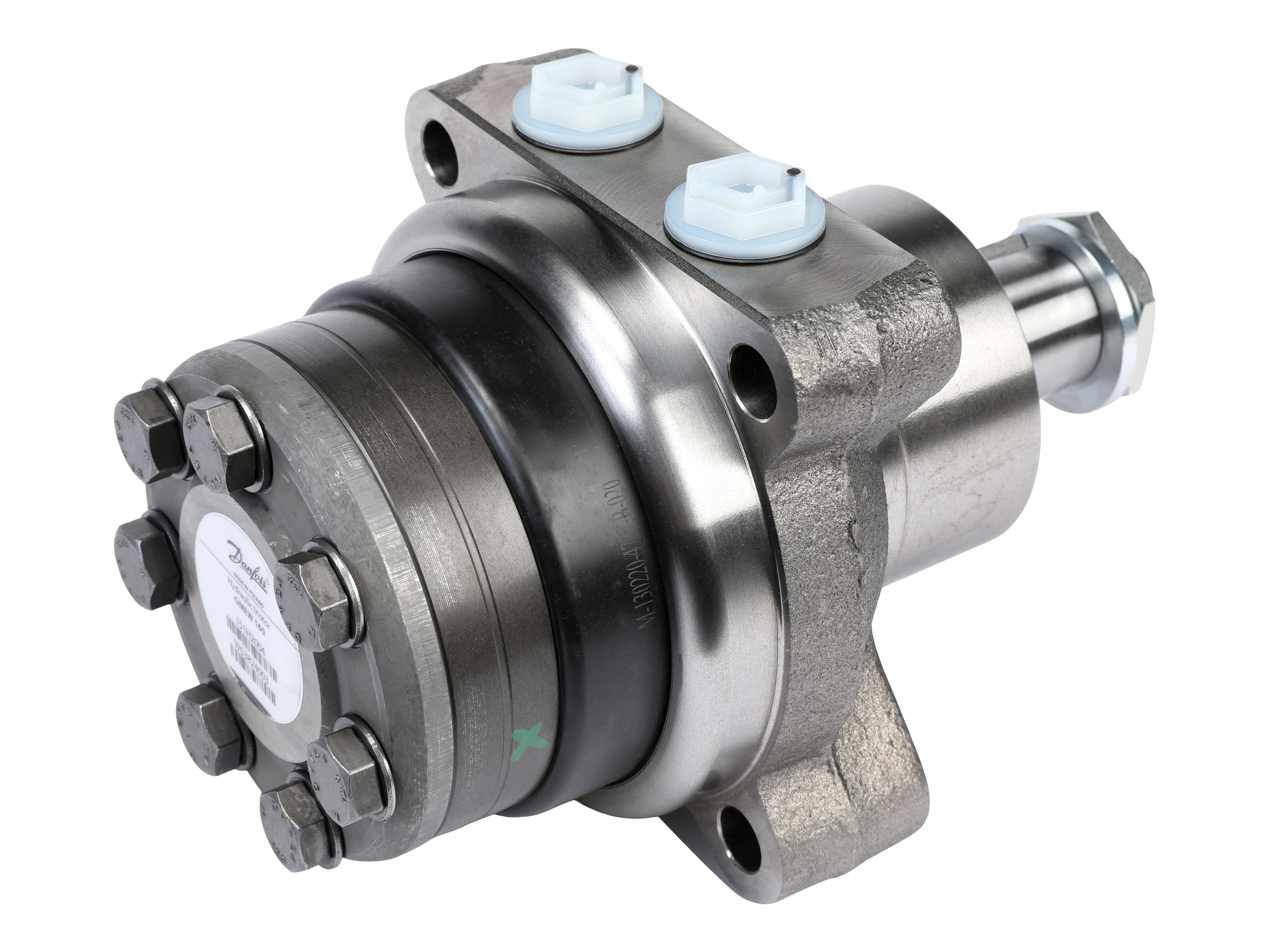

OMEW 200 Orbitmotor HPS Series 2, Taper 35mm 1:10 CCW
OMEW 200 Orbitmotor HPS Series 2, Taper 35mm 1:10 CCW
Partnumber:
151H2036
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
White
Continuous power max.
11 kW
Continuous rotation max.
300 rpm
Displacement
198.2 cm3
Holes circle
147.6 mm
Intermittent Effect Max.
16 kW
Intermittent Rotation speed Max.
375 rpm
Intermittent Torque Max.
570 Nm

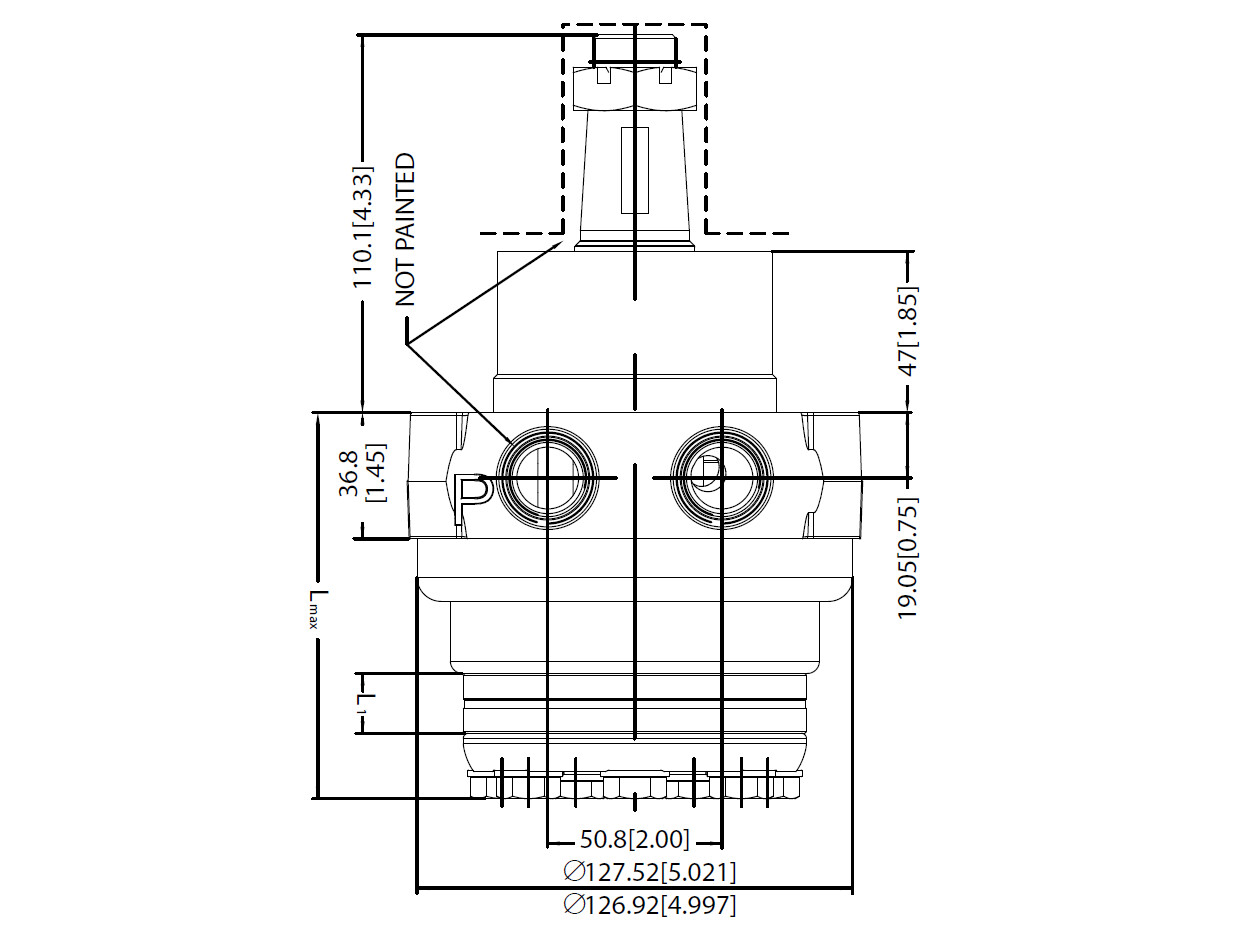

L
125,8 mm
L1
27,8 mm
Mounting flange
Wheel 82,5
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure continous max.
200 bar
Pressure drop continuous max.
150 bar
Pressure intermittent max.
210 bar
Pressure peak max.
225 bar
Recess
82,55 mm
Rotation direction
Left (CCW)
Sealing material
NBR
Shaft cone
1:10
Shaft diameter
35 mm
Shaft keyway
6,0 mm
Shaft type
Tapered
Surface treatment
Painted black
Thread inner
G 1/2 BSP
Torque continuous max.
400 Nm
Working ports
G 1/2 BSP
Package size
1 st
Barcode
333972
Gross weight
1,00 Kg
Net weight
1,00 Kg
Country of origin
Intrastat code
84122981
OMEW 200 Orbitmotor HPS Series 2, Taper 35mm 1:10 CCW
