Press. Reducing valve 40l/m 28-207bar CP230-4-B-0-E-C-XXX

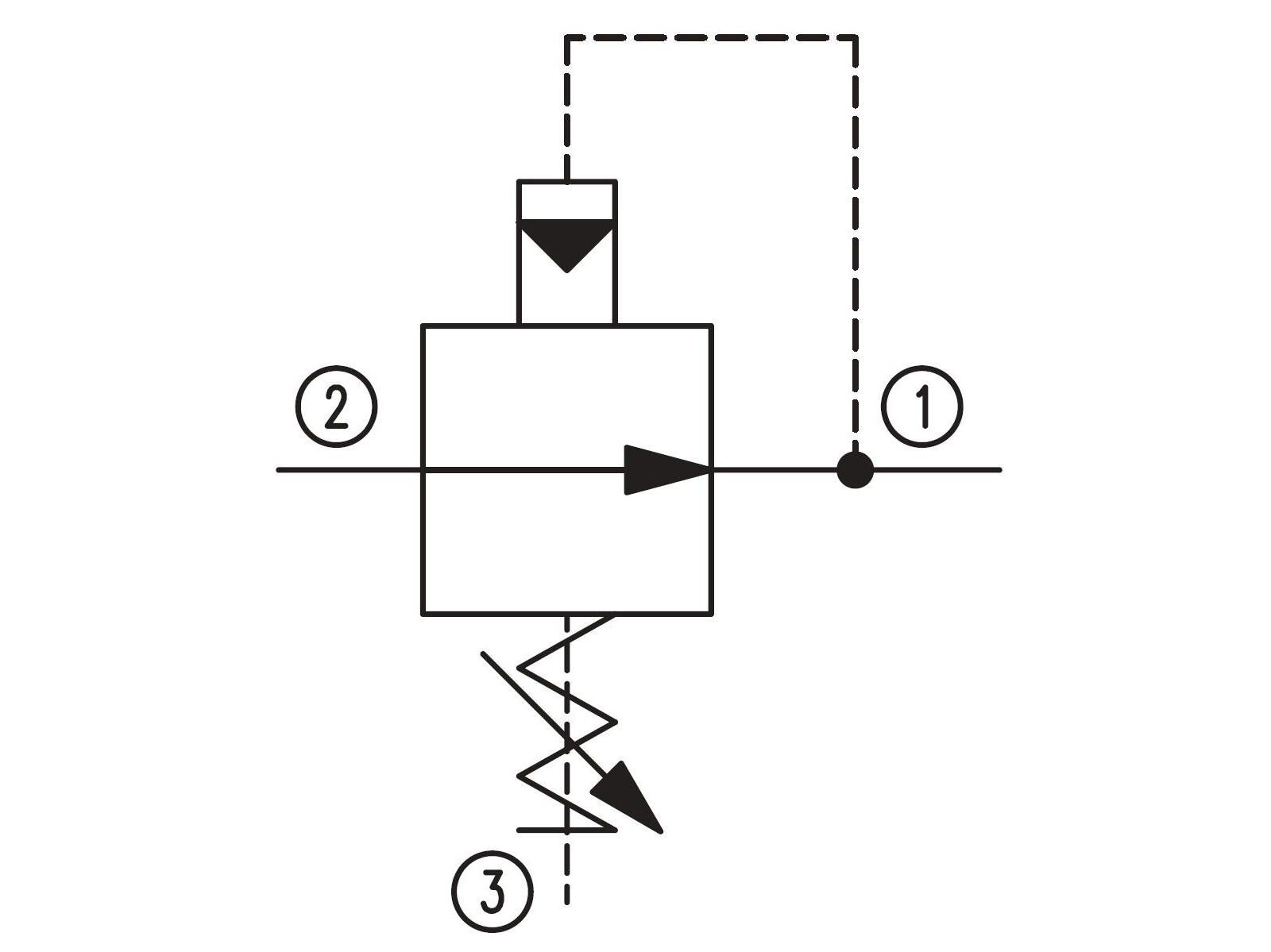

CP230-4, Pressure Reducing, Non-Relieving, Pilot Operated
This is a normally open, pilot operated pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
Artikelnummer:
134902.000
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Cavity
SDC10-3
Flow Nominel
40 lpm
Forureningsgrad maks.
20/18/14 - ISO 4406
Materiale
Steel
Model kode
CP230-4-B-0-E-C-XXX
Mærke navn
Danfoss
Nøglevidde
25.4 mm
Olieviskositet anbefalet
12 - 54 cSt
Pakningsmateriale
NBR
Tilspændingsmoment
64 - 73 Nm
Tryk maks.
350 bar
Trykindstilling maks.
210 bar
Trykindstilling min.
28 bar
Förpackningsstorlek
1 st
Streckkod
374693
Bruttovikt
0,23 Kg
Nettovikt
0,23 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
CP230-4, Pressure Reducing, Non-Relieving, Pilot Operated
This is a normally open, pilot operated pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
