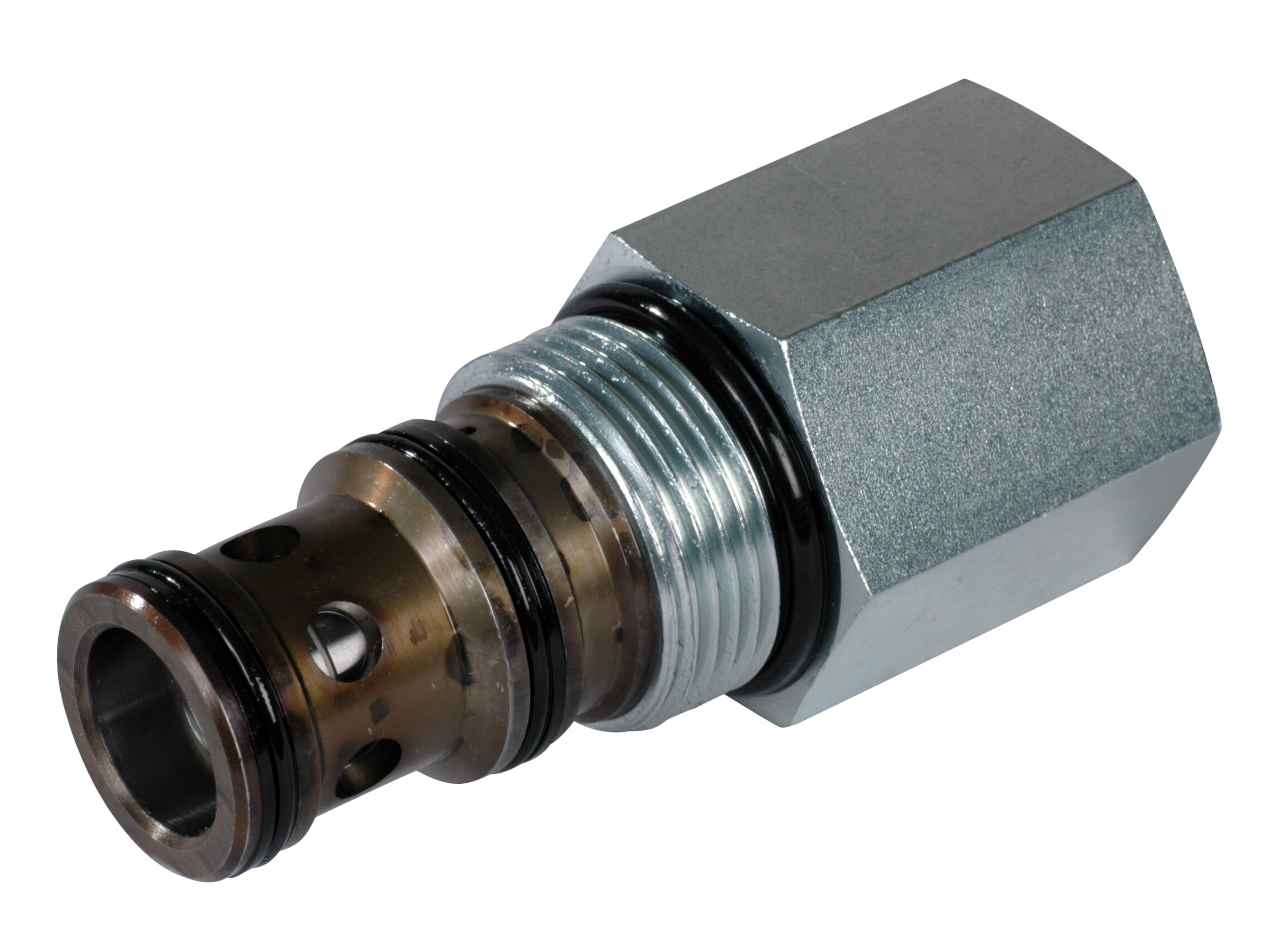

LOGIC ELEMENT CART. CP702-1-B-0-150
The CP702-1 is a 16-size, normally closed, pilot-to-close, spool-type, spring biased differential-sensing logic element. It will modulate flow from 1 to 2 based on the spring control pressure, inlet pressure at port 1, and pilot pressure at port 3.
Varenummer:
130157-CP702
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
Danfoss
Contamination level max.
20/18/14 - ISO 4406
Flow rate nominal LMin
40 lpm
Model code
CP702-1-B-0-150
Oil viscocity recommended
12 - 54 cSt
Pressure max.
210 bar
Temperature max.
+100 °C
Temperature min.
-40 °C
Package size
1 st
Barcode
379538
Gross weight
1,31 Kg
Net weight
1,31 Kg
Country of origin
Intrastat code
84812010
The CP702-1 is a 16-size, normally closed, pilot-to-close, spool-type, spring biased differential-sensing logic element. It will modulate flow from 1 to 2 based on the spring control pressure, inlet pressure at port 1, and pilot pressure at port 3.
