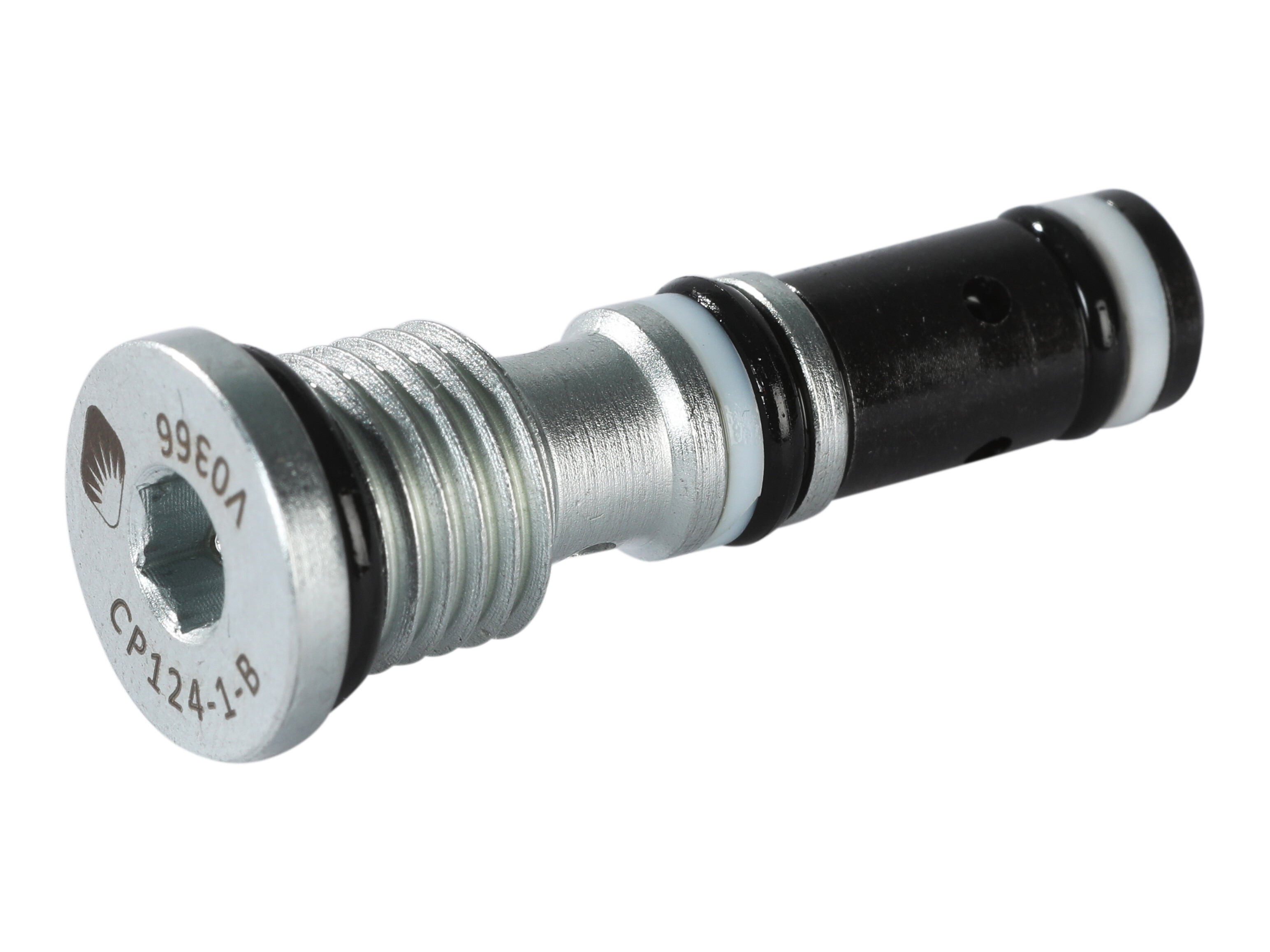

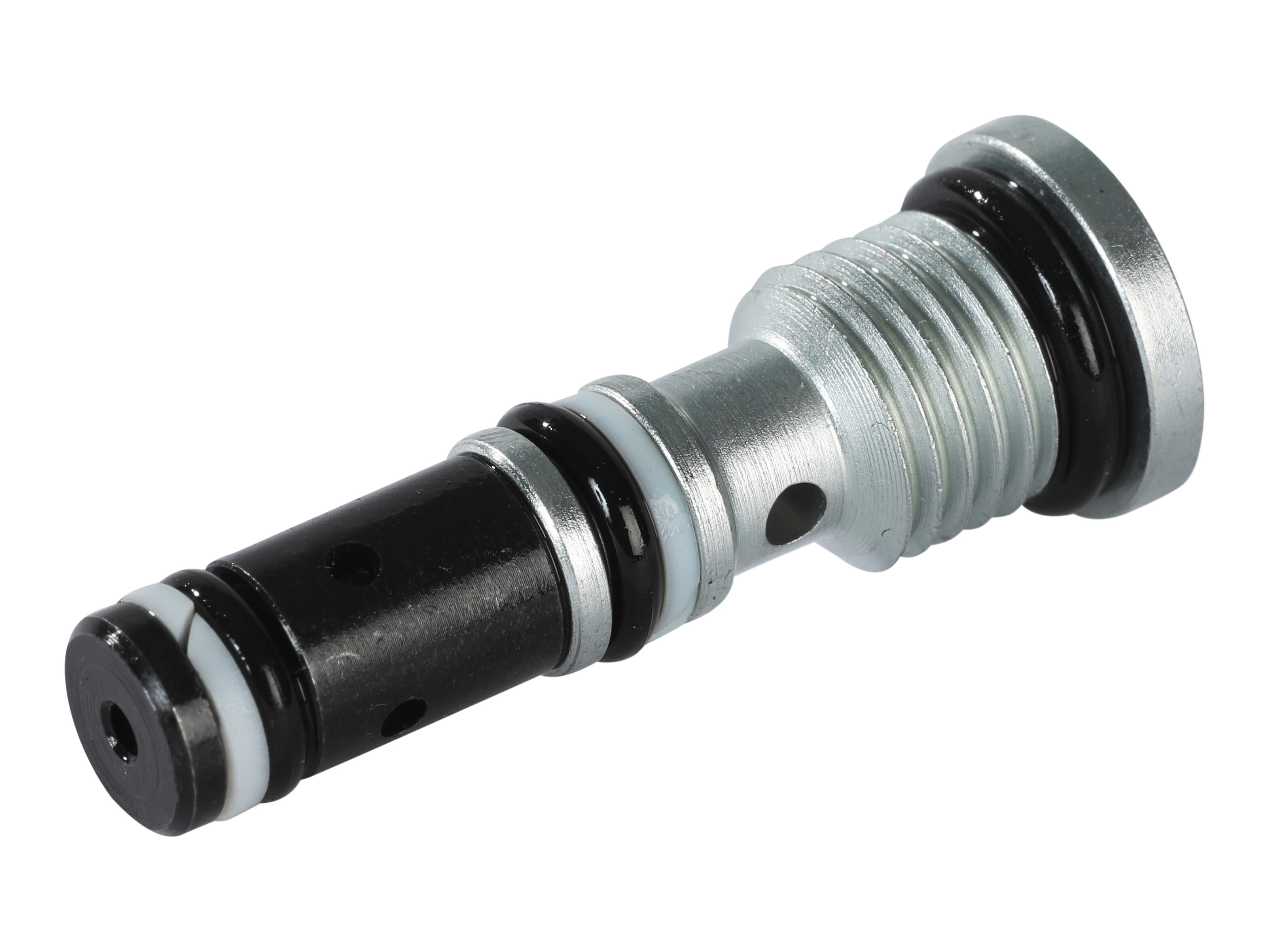

Shuttle valve 4l/m CP124-1-B-0

CP12-1, Load Shuttle Valve – Normal Direction.

This valve senses the higher of the two input pressures at ports 1 and 3 and routes it to the output port 2.

Partnumber:
11169028

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Danfoss

Cavity
CP04-3

Contamination level max.
20/19/14 - ISO 4406

Flow rate nominal LMin
4 lpm

Material
Steel

Model code
CP124-1-B-0

Oil viscocity recommended
12 - 54 cSt

Pressure max.
350 bar

Sealing material
NBR

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
10 - 15 Nm
Package size
1 st

Barcode
374673

Gross weight
0,01 Kg

Net weight
0,01 Kg

Country of origin
ITA

Intrastat code
84812010

CP12-1, Load Shuttle Valve – Normal Direction.

This valve senses the higher of the two input pressures at ports 1 and 3 and routes it to the output port 2.
