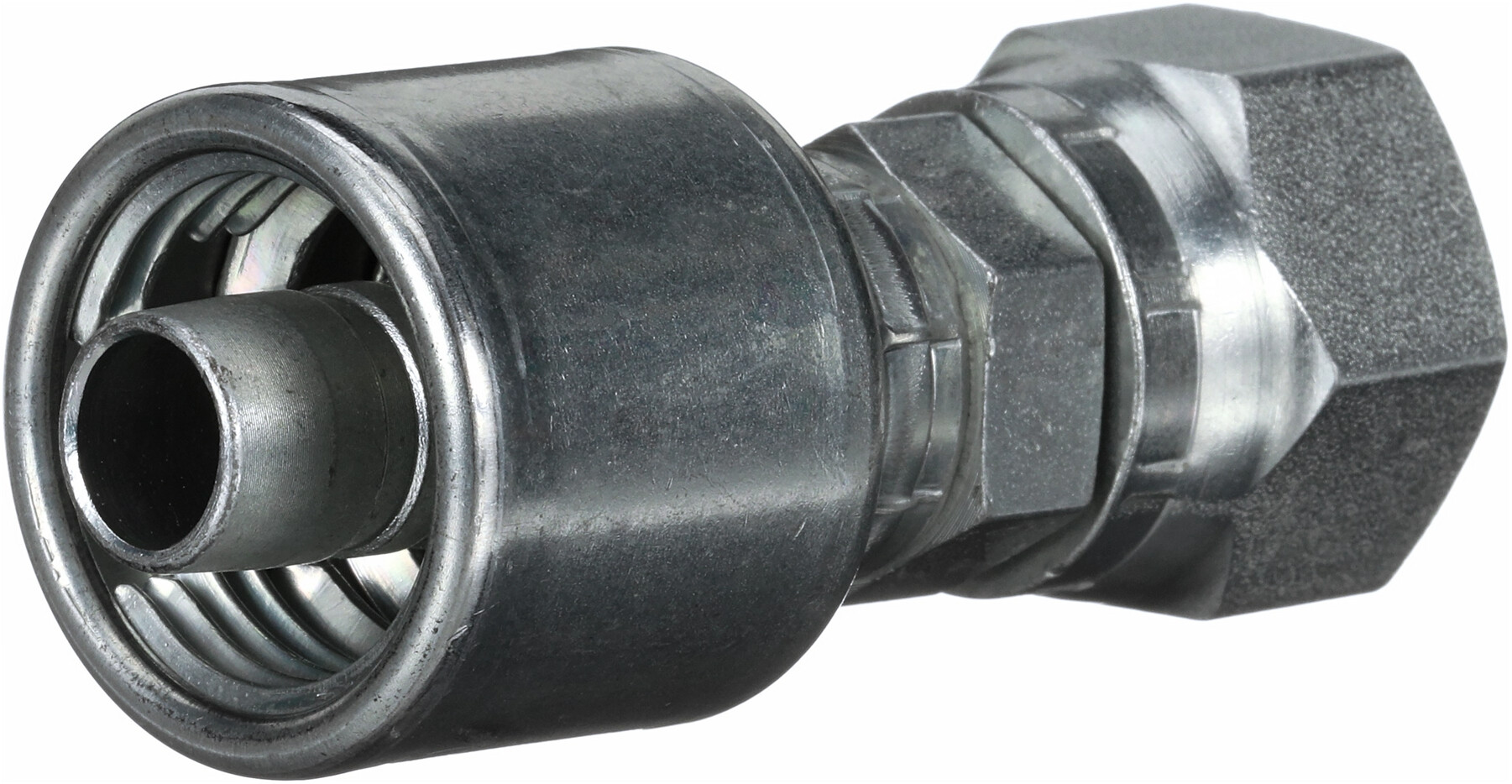

Coupling 5/8, M26x1,5 fem. 18L 10G-18FDLORX Gates MegaCrimp

Connection: Female DIN O ring swivel. 24° cone.

Sealing: O-ring against metal.

Partnumber:
10G18FDLORX

Package size:
10 st

Min. order quantity is:
1 st
Angle
0 °

Brand Name
Gates

Corrosion resistance
500 hours salt spray ASTM B-117

Diameter pipe
18 mm

Dimension A
67 mm

Dimension B
29.5 mm

Dimension D
5/8 "

Dimension H
32 mm

Hose coupling type
With fixed ferrule

Hose size
5/8 "

Model code
10G-18FDLORX

Pressure max.
280 bar

REACH compliant
Yes

RoHs compliant
Yes

Sealing material
NBR

Series
L

Surface treatment
TuffCoat™

Temperature max.
+100 °C

Temperature min.
-35 °C

Torque tightening
80 - 90 Nm
Package size
10 st

Barcode
200084

Gross weight
0,19 Kg

Net weight
0,19 Kg

Country of origin
CZE

Intrastat code
73269098

Connection: Female DIN O ring swivel. 24° cone.

Sealing: O-ring against metal.
