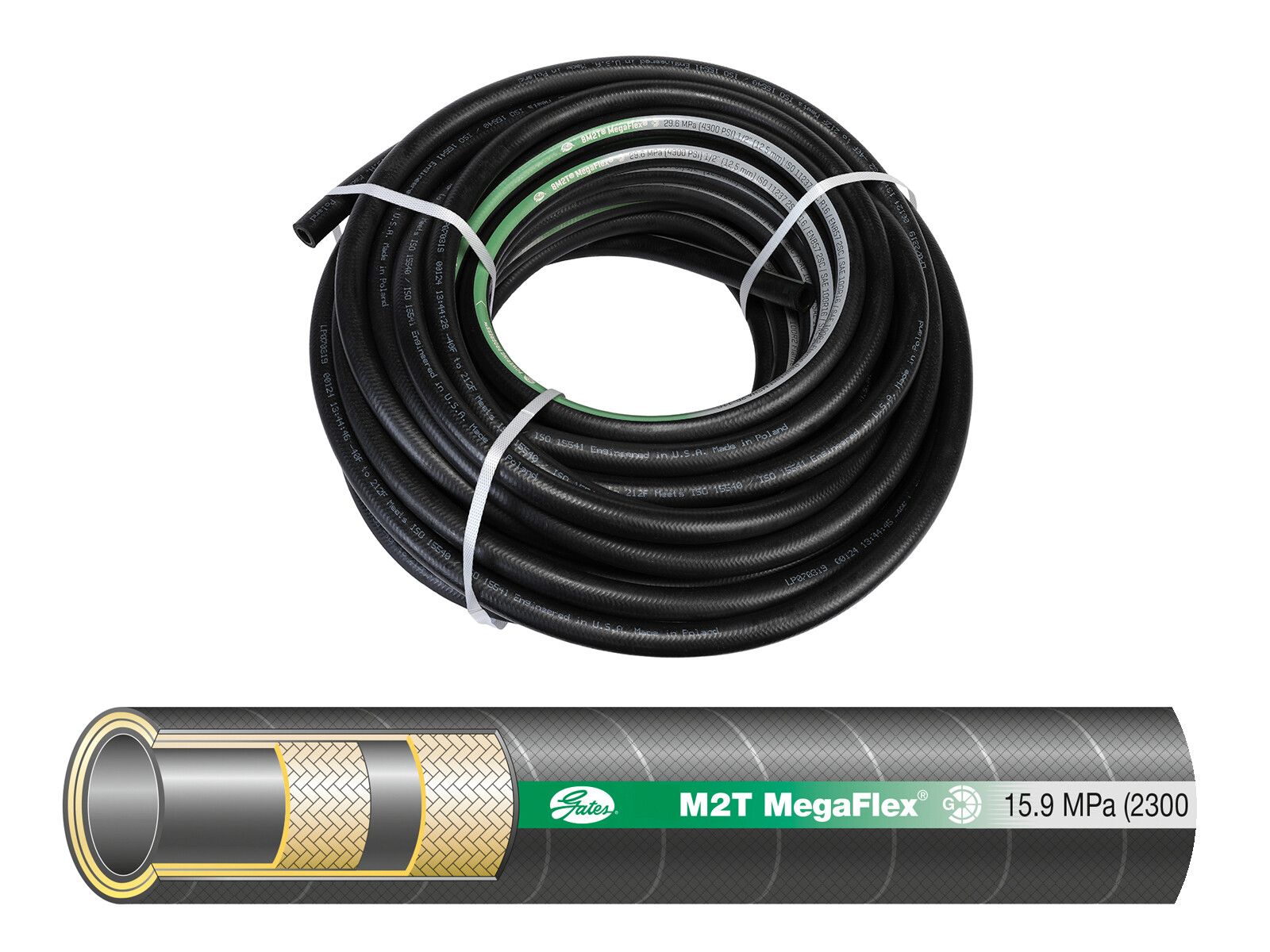

Hydraulslang M2T 5/16 350 bar 2SC 30m rulle
Usable for biodegradable hydraulic fluids such as synthetic ester, polyglycol and vegetable oils.
Partnumber:
05M2T-RL30
Package size:
30 m
Min. order quantity is:
30 m
Bøjningsradius
45 mm
Diameter udvendig
15.2 mm
Flammeresistent
Yes
Mærke navn
Gates
REACH compliant
Yes
RoHs compliant
Yes
Slangegodkendelser
ABS, BV, DNV, LR, MSHA
Slangestørrelse
5/16 "
Standard EN
EN 853 2SN, EN 857 2SC
Standard ISO
ISO 11237 2SC, ISO 11237 R16, ISO 1436 2SN R2
Standard SAE
SAE 100R16, SAE 100R2
Temperatur maks.
+100 °C
Temperatur min.
-40 °C
Tryk maks.
350 bar
Tryk sprængning min.
1520 bar
Yderrør
NBR/PVC
Package size
30 m
Barcode
375209
Gross weight
0,36 Kg
Net weight
0,36 Kg
Country of origin
Usable for biodegradable hydraulic fluids such as synthetic ester, polyglycol and vegetable oils.
Crimp dimensions for 05M2T-RL30
|
Hose type |
Diamter - inch |
Hose coupling type |
Ferrule |
Crimp dimension - mm |
Skiving - int. |
Skiving - ext. |
Operating pressure |
|---|---|---|---|---|---|---|---|
| 05M2T | 5/16 | P05 | P0530 |
18.6 mm
±0.1
|
No | No | 380 |
| 05M2T | 5/16 | G05 |
20.2 mm
±0.25
|
No | No | 380 |
