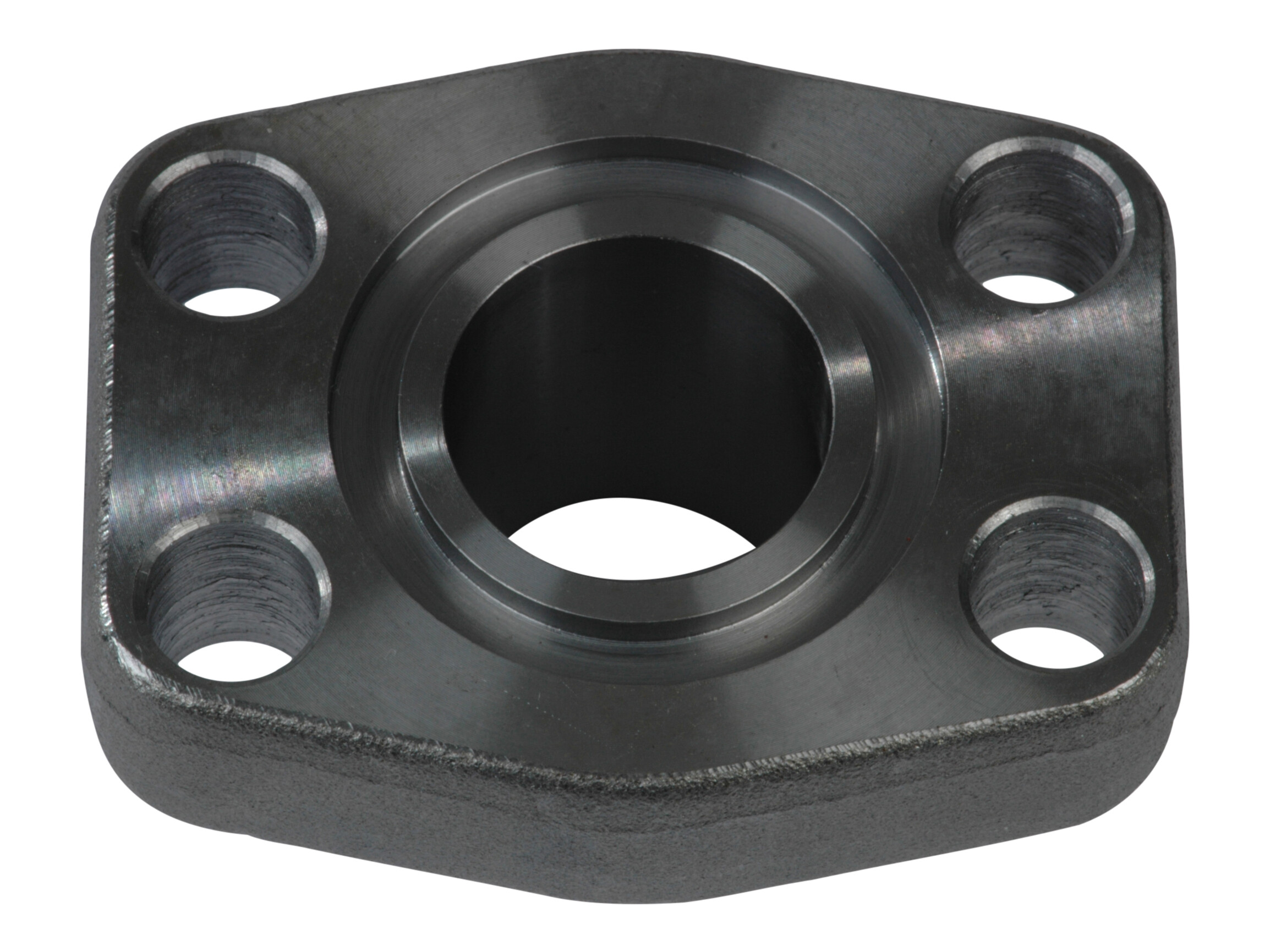

Butt weld flange 1" SAE3000

FLÄNS RAK SAE3000 1tum SVETS UTV 34 MM, O-RINGSSPÅR

Varenummer:

0593-16

Pakke str.:

1 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Bolt dimension

M10x35 mm

Brand Name

Hydraspecma

52,4 mm

Diameter flange

44.5 mm

26,2 mm

Flange

1 "

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

O-ring

32,93X3,53 mm

Pressure max.

320 bar

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperature max.

+90 °C

Temperature min.

-40 °C

Package size

1 pcs

Barcode

198683

Gross weight

0,46 Kg

Net weight

0,46 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

FLÄNS RAK SAE3000 1tum SVETS UTV 34 MM, O-RINGSSPÅR
